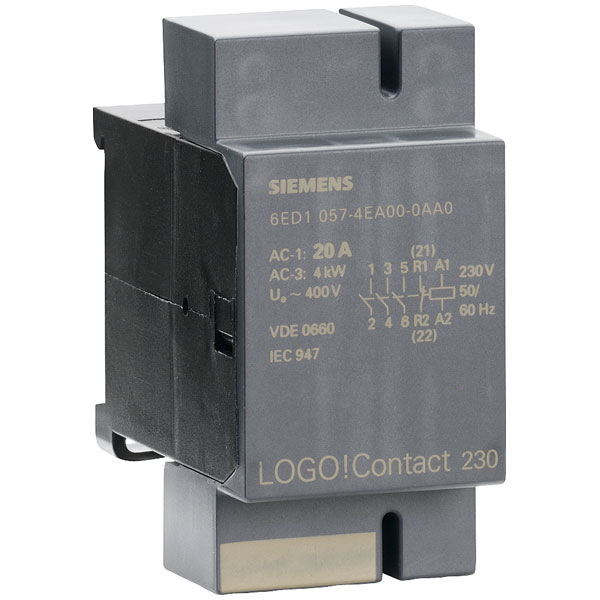

Siemens 6ED1057-4EA00-0AA0 LOGO! PLC Expansion Module

MPN: 6ED10574EA000AA0
Brand: Siemens
EAN-13: 4025515050759
Order Code: 64-8379
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£14.73	£14.72

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 2 in stockBack-order availability date - 09/06/2026

Product Details
Data Sheets
Quick Quote

This unit is switching module for the direct switching of resistive loads and motors.

Supply voltage 230V AC
Configuration 3NO + 1NC

Type	Switching module
AC input voltage	230 V
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Basic device	false
Built-in display	No
Certified for UL hazardous location class I	N/A
Certified for UL hazardous location class II	N/A
Certified for UL hazardous location class III	N/A
Certified for UL hazardous location division 1	N/A
Certified for UL hazardous location division 2	N/A
Certified for UL hazardous location group A (acetylene)	N/A
Certified for UL hazardous location group B (hydrogen)	N/A
Certified for UL hazardous location group C (ethylene)	N/A
Certified for UL hazardous location group D (propane)	N/A
Certified for UL hazardous location group E (metal dusts)	N/A
Certified for UL hazardous location group F (carbonaceous dusts)	N/A
Certified for UL hazardous location group G (non-conductive dusts)	N/A
Compatible load types	Resistive, Single-phase AC motor
Compliance certificates	REACH, RoHS, WEEE
Connectivity technology	Wired
Country of origin	Turkey
Degree of protection (IP)	IP20
Depth	55mm
Display	No
Expandable	false
Expansion device	false
Explosion safety category for dust	N/A
Explosion safety category for gas	N/A
Front built-in possible	true
Height	72mm
Installation type	Screws
IO link master	false
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Mounting Type	Wall
Number of Analogue Inputs	0
Number of Analogue Outputs	0
Number of Digital Inputs	0
Number of Digital Outputs	4
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Operating Voltage	230V
Package depth	73mm
Package height	35mm
Package width	60mm
Performance level according to EN ISO 13849-1	N/A
Power Consumption	N/A
Product colour	Grey
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Rated load current (resistive loads)	20 A
Redundancy	false
SIL according to IEC 61508	N/A
Suitable for indoor use	Yes
Suitable for rail mounting	true
Suitable for safety functions	false
Supply	voltage 230V AC
Supply voltage AC 50 Hz	187 - 264V
Supply voltage AC 60 Hz	187 - 264V
Supply voltage DC	N/A
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
Sustainability compliance	Yes
Switching Current	20A
Voltage type (supply voltage)	AC
Wall mounting/direct mounting	true
Weight	155g
Width	36mm
With display	false
With optical interface	false
With relay output	true
With time switch clock	true
