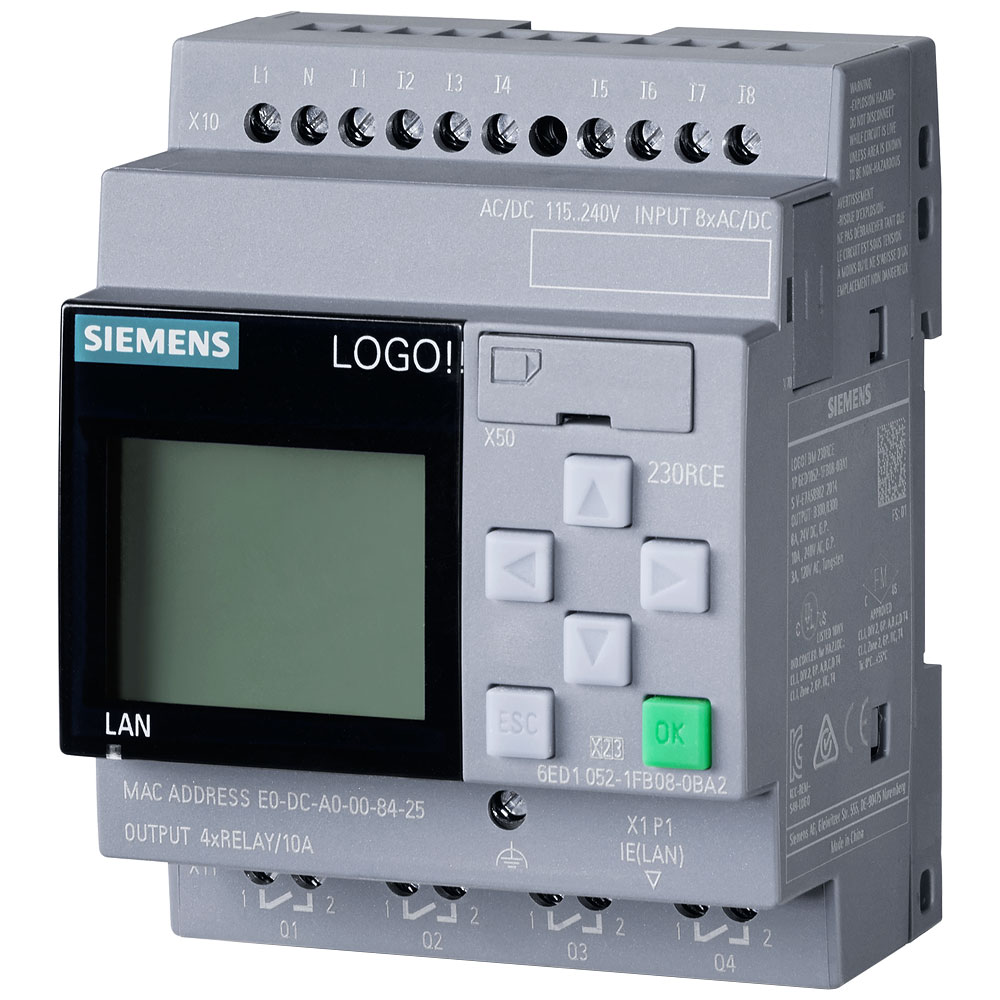

The Siemens 6ED1052-1FB08-0BA2 is a versatile programmable logic controller supporting 115 V to 230 V AC/DC input voltages. It is designed for automation tasks, offering reliability and efficiency in control systems. Typical applications include industrial automation, building management, and process control.
| Type |
PLC controller |
| Certification |
UL approval. · FM-approved · VDE 0631 · IEC 61131 |
| Degree of protection (IP) |
IP20 |
| Depth |
60mm |
| Dim |
(L x W) 90 mm x 71.50 mm |
| Display |
Yes |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Fitting type (details) |
On top hat rail 35 mm, 4 division units wide |
| Height |
90mm |
| Interference suppression |
Conforms to EN 55 011 (limiting value class B) |
| Length |
90mm |
| Manufacturer part # |
6ED10521FB080BA2 |
| Max. ambient temperature |
+55°C |
| Max. operating voltage |
253V DC |
| Min. ambient temperature |
-20°C |
| Min. operating voltage |
100V DC |
| Misc Attribute |
6ED1052-1FB08-0BA2 |
| No. of inputs (max.) |
8 |
| No. of outputs (max.) |
4 |
| No. of relay outputs (max.) |
4 |
| Number of analogue inputs |
0 |
| Number of analogue outputs |
0 |
| Number of digital inputs |
8 |
| Number of digital outputs |
4 |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of interfaces PROFINET |
0 |
| Operating voltage |
100 - 253 V DC |
| Power backup type |
480h |
| Short-circuit-proofing |
No |
| Switching Current |
10A |
| Voltage type (supply voltage) |
AC/DC |
