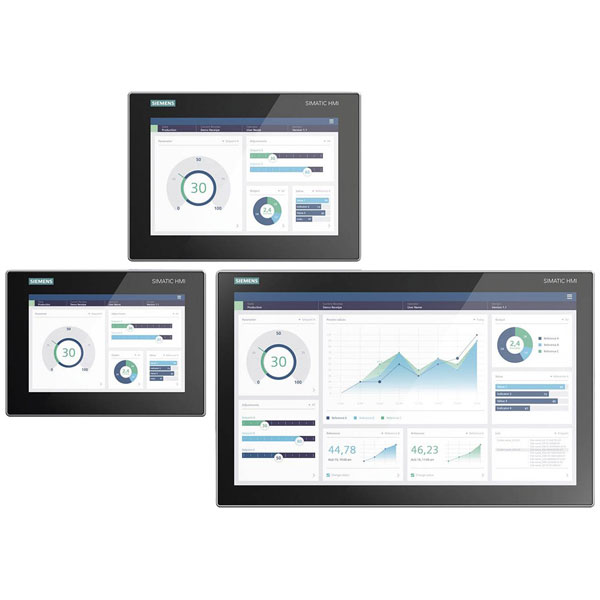

The Siemens 6AV2128-3KB06-0AX1 PLC console is part of the Simatic series, designed for efficient automation and control tasks. It features a high-resolution display and flexible connectivity options, making it suitable for a variety of industrial applications. Commonly used in factory automation, this PLC console enhances productivity and precision in managing production processes.
| Type |
PLC console |
| Display Type |
TFT |
| Display Size |
10.1 in |
| Display Resolution |
1280 x 800 |
| Supply Voltage |
24V DC |
| Additional software components, loadable |
true |
| Built-in depth |
63.6mm |
| Certified for UL hazardous location class I |
N/A |
| Certified for UL hazardous location class II |
N/A |
| Certified for UL hazardous location class III |
N/A |
| Certified for UL hazardous location division 1 |
N/A |
| Certified for UL hazardous location division 2 |
N/A |
| Certified for UL hazardous location group A (acetylene) |
N/A |
| Certified for UL hazardous location group B (hydrogen) |
N/A |
| Certified for UL hazardous location group C (ethylene) |
N/A |
| Certified for UL hazardous location group D (propane) |
N/A |
| Certified for UL hazardous location group E (metal dusts) |
N/A |
| Certified for UL hazardous location group F (carbonaceous dusts) |
N/A |
| Certified for UL hazardous location group G (non-conductive dusts) |
N/A |
| Colour display |
true |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
N/A |
| Height of the front |
205mm |
| IO link master |
false |
| Mobile communication standard 2G (GSM) |
false |
| Mobile communication standard 3G (UMTS) |
false |
| Mobile communication standard GPRS |
false |
| Number of buttons with LED |
N/A |
| Number of colours of the display |
16777216 |
| Number of function buttons, programmable |
N/A |
| Number of grey-scales/blue-scales of display |
N/A |
| Number of HW-interfaces industrial Ethernet |
2 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
4 |
| Number of HW-interfaces wireless |
0 |
| Number of interfaces PROFINET |
N/A |
| Number of online languages |
32 |
| Number of password levels |
N/A |
| Number of pixels, horizontal |
1280 |
| Number of pixels, vertical |
800 |
| Number of system buttons |
N/A |
| Operating Temperature |
0 - 50°C |
| Power Consumption |
N/A |
| Process default value (input) possible |
true |
| Process value representation (output) possible |
true |
| Radio standard Bluetooth |
false |
| Radio standard WLAN 802.11 |
false |
| Screen diagonal |
10.1in |
| Suitable for rail mounting |
false |
| Suitable for safety functions |
false |
| Supply voltage AC 50 Hz |
N/A |
| Supply voltage AC 60 Hz |
N/A |
| Supply voltage DC |
19.2 - 28.8V |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherCAT |
N/A |
| Supporting protocol for EtherNet/IP |
true |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
true |
| Touch technology |
N/A |
| Type of display |
TFT |
| Usable project memory/user memory |
N/A |
| Voltage type (supply voltage) |
DC |
| Wall mounting/direct mounting |
false |
| Width of the front |
280mm |
| With alpha numeric keyboard |
true |
| With message indication |
true |
| With message system (incl. buffer and confirmation) |
true |
| With numeric keyboard |
true |
| With printer output |
true |
| With recipes |
true |
| With SW interfaces |
N/A |
