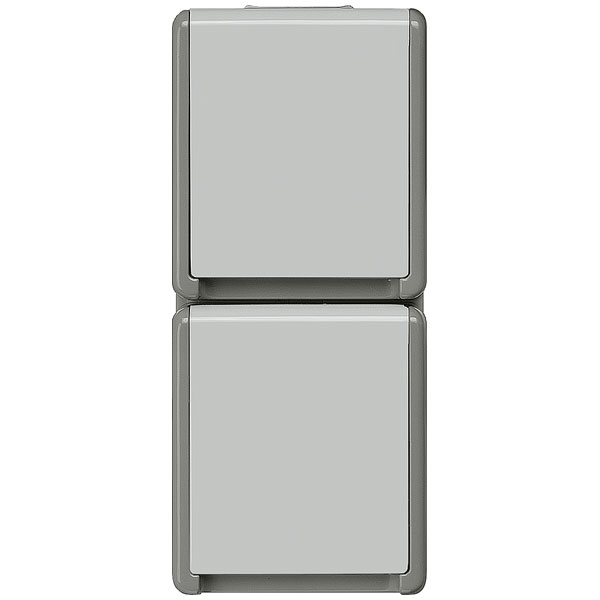

The Siemens Switch product range includes the 5UB4723, a double socket outlet in grey designed with safety contact and fault current protection features. This product provides reliable overvoltage and earth leakage protection, making it ideal for residential and commercial applications where safety is a priority. Manufactured by Siemens, it fits seamlessly into a rotating current system while enhancing electrical safety and reliability.
| Type |
Switch product range |
| Size/ Dimensions |
(L x W x H) 75 x 132 x 75 mm |
| IP Rating |
IP44 |
| Anti-bacterial treatment |
false |
| Colour |
Grey |
| Colour of switch operator |
N/A |
| Compatible with Amazon Alexa |
false |
| Compatible with Apple HomeKit |
false |
| Compatible with Google Assistant |
false |
| Compliant with UK Building Regulations Part M |
N/A |
| Concurrently switching neutral conductor |
N/A |
| Connection Type |
Push-in clamp |
| Depth |
54mm |
| Device depth |
45mm |
| Device height |
70mm |
| Device width |
70mm |
| Eject-mechanism |
false |
| Fault current protection |
FALSE |
| For heavy conditions according to VDE |
false |
| Frequency |
50 - 50Hz |
| Halogen free |
TRUE |
| Height |
75mm |
| IFTTT support available |
false |
| Impact strength |
Other |
| Imprint/indication |
N/A |
| Insulated mounting |
FALSE |
| Label space/information surface |
FALSE |
| Length |
75mm |
| Lockable |
FALSE |
| Material |
N/A |
| Material quality |
Thermoplastic |
| Max. current rating of USB power supply |
N/A |
| Metallic colour |
false |
| Min. depth of built-in installation box |
45 |
| Model |
Other |
| Mounting method |
Surface mounted (plaster) |
| Nominal Current |
16A |
| Nominal Voltage |
250V |
| Number of active contacts (flat) |
2 |
| Number of active contacts (round) |
N/A |
| Number of active contacts (square) |
N/A |
| Number of loop throughs |
N/A |
| Number of modules (module system) |
N/A |
| Number of phases |
2 |
| Number of ports USB-A |
N/A |
| Number of ports USB-C |
N/A |
| Number of socket outlets switchable |
0 |
| Number of units |
1 |
| Outlets |
2 |
| Overvoltage protection |
FALSE |
| Package depth |
56mm |
| Package height |
130mm |
| Package width |
82mm |
| Protective contact |
TRUE |
| RAL-number (similar) |
7035 |
| Rated fault current |
N/A |
| Rotated central insert |
FALSE |
| Special power supply |
No special power supply |
| Suitable for degree of protection (IP) |
IP20 |
| Surface finishing |
Glossy |
| Surface protection |
Other |
| Transparent |
FALSE |
| Type of fastening |
Mounting with claw and screw |
| Width |
132mm |
| With built-in bluetooth speaker |
N/A |
| With built-in USB power supply |
FALSE |
| With enhanced contact protection |
FALSE |
| With function lighting |
FALSE |
| With hinged lid |
TRUE |
| With loop through function |
TRUE |
| With miniature fuse |
FALSE |
| With on/off switch |
FALSE |
| With orientation lighting |
FALSE |
| With signal lamp |
false |
| With Wi-Fi signal repeater |
N/A |
