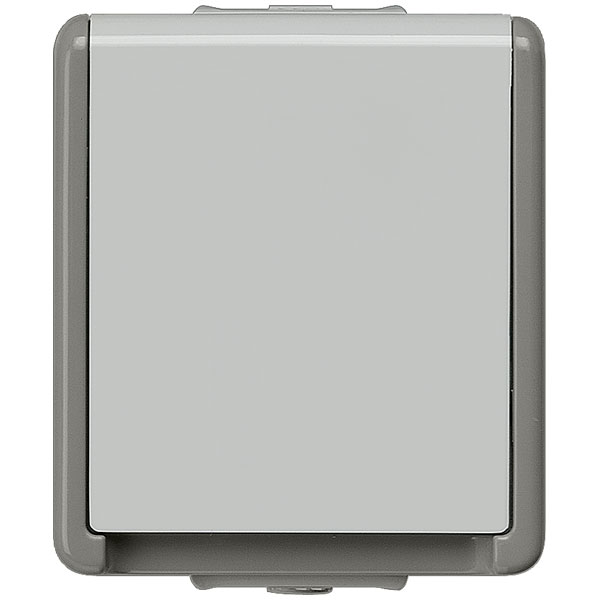

Siemens 5UB4711 Delta Grey Switch 243mm instabus EIB Data bus

Siemens’ Delta Grey 5UB4711 is a socket outlet with protective contact designed for increased safety. It features over voltage and fault current protection, making it ideal for residential use. Typical applications include wall installations in homes to ensure electrical safety and reliability.

Type	Switch product range
Anti-bacterial treatment	false
Certification	VDE, ÖVE
Colour	Grey
Colour of switch operator	N/A
Compatible with Amazon Alexa	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Compliant with UK Building Regulations Part M	N/A
Concurrently switching neutral conductor	N/A
Connection Type	Push-in clamp
Depth	54mm
Device depth	45mm
Device height	70mm
Device width	70mm
Doesnt contain	Halogen
Eject-mechanism	false
Fault current protection	FALSE
For heavy conditions according to VDE	false
Frame	Yes
Frequency	50 - 50Hz
Halogen free	TRUE
Height	66mm
Housing Material	Plastic
IFTTT support available	false
Impact strength	Other
Imprint/indication	N/A
Insulated mounting	FALSE
International Protection (IP) code	IP44
IP Rating	IP44
Label space/information surface	FALSE
Length	66mm
Lockable	FALSE
Material	N/A
Material quality	Thermoplastic
Max. current rating of USB power supply	N/A
Metallic colour	false
Min. depth of built-in installation box	45
Model	Other
Mounting method	Surface mounted (plaster)
Nominal Current	16A
Nominal Voltage	250V
Number of active contacts (flat)	2
Number of active contacts (round)	N/A
Number of active contacts (square)	N/A
Number of loop throughs	N/A
Number of modules (module system)	N/A
Number of Phases	2
Number of ports USB-A	N/A
Number of ports USB-C	N/A
Number of products included	1 pc(s)
Number of socket outlets switchable	0
Number of units	1
Outlets	1
Overvoltage protection	FALSE
Package depth	65mm
Package height	56mm
Package width	82mm
Product colour	Grey
Protective contact	TRUE
RAL-number (similar)	7035
Rated current	16 A
Rated fault current	N/A
Rated frequency	50 Hz
Rated voltage	250 V
Rotated central insert	FALSE
Size/ Dimensions	(L x W x H) 66 x 75 x 66 mm
Socket Type	Type F
Sockets quantity	1
Special power supply	No special power supply
Suitable for degree of protection (IP)	IP20
Surface finishing	Glossy
Surface protection	Other
Transparent	FALSE
Type of fastening	Mounting with claw and screw
Type series	Delta
Weight	0
Width	75mm
With built-in bluetooth speaker	N/A
With built-in USB power supply	FALSE
With enhanced contact protection	FALSE
With function lighting	FALSE
With hinged lid	TRUE
With loop through function	TRUE
With miniature fuse	FALSE
With on/off switch	FALSE
With orientation lighting	FALSE
With signal lamp	false
With Wi-Fi signal repeater	N/A
