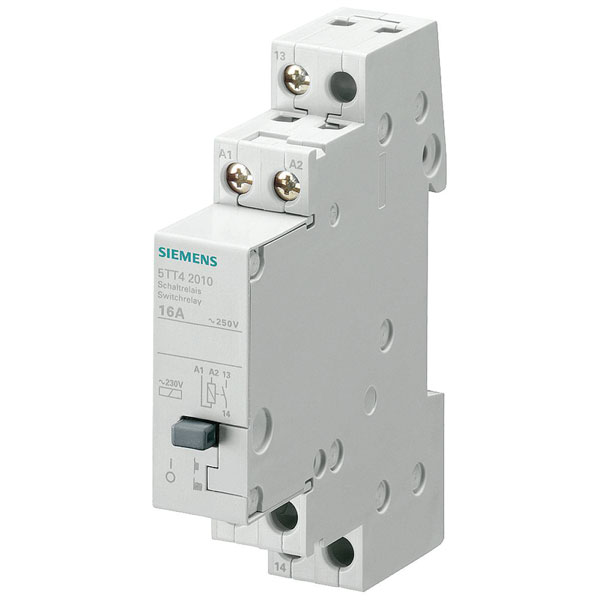

Siemens 5TT42010 SENTRON relay 250V 16A 4 NO Contact AC 230V Control

The Siemens 5TT4201-0 relay is designed for industrial applications, operating with a nominal voltage of 250 V and a maximum switching current of 16 A. It is suitable for use in automation and control systems where reliable switching is essential. This component is durable and efficient, making it ideal for integration into complex electrical circuits.

Type	Relay
Built-in depth	90mm
Contact Type	1 kermA
Control voltage 1	230 - 230V
Control voltage 2	N/A
Electrical lifespan	50000
Frequency control voltage 1	50 - 50Hz
Frequency control voltage 2	N/A
Function	Partially electronic
IP Rating	IP20
Max. incandescent lamp load	1200W
Max. load fluorescent lamp	400VA
Max. load fluorescent lamp (Duo circuit)	N/A
Max. load fluorescent lamp (parallel compensated)	N/A
Max. switching current (cos phi = 0.6)	16A
Maximum Temperature	+40°C
Min. temperature	-10°C
Misc Attribute	5TT4201-0t
Mounting method	DIN rail
Nominal Voltage	250V
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Rated current	16A
Supply Voltage	250 - 250V
Switching current (max.)	16A
Type of control voltage 1	AC
Type of control voltage 2	AC/DC
Voltage type (supply voltage)	N/A
Width in number of modular spacings	1
