Siemens 5SY45027 5SY4502-7 Circuit Breaker 2A 230V 400V miniature 10kA

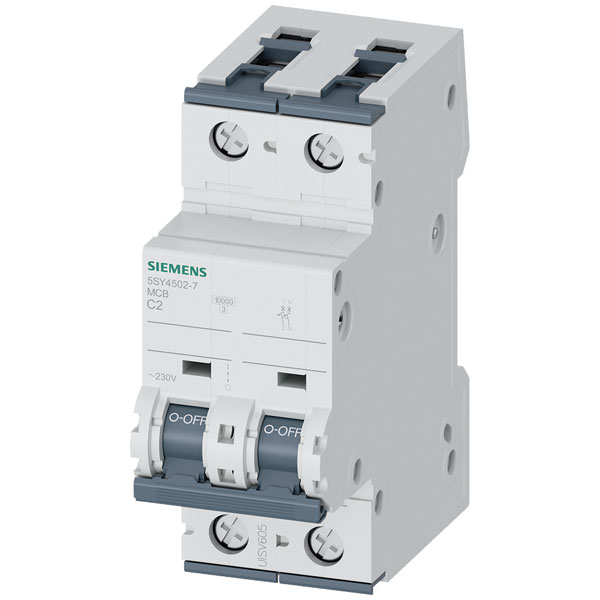

Image Representative of Range

Siemens 5SY45027 5SY4502-7 Circuit Breaker 2A 230V 400V miniature 10kA

Siemens
Order Code:

07-0523

Brand: Siemens MPN: 5SY45027 EAN-13: 4001869182445
Qty Unit Price (Ex VAT)
1+ £56.91
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Siemens 5SY45027 circuit breaker, with a current rating of 2 A, operates at voltages of 230 V and 400 V. It provides reliable protection in electrical installations by preventing overloads and short circuits. This device is typically used in residential and commercial applications.
Type Circuit breaker
Additional equipment possible TRUE
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor TRUE
Current limiting class 3
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 36 x 90 x 76 mm
Factory colour Grey
Frequency 50-60MHz
Height 90mm
Nominal Current 2A
Nominal current - rounded value 2A
Number of Pins 2
Number of poles (total) 2
Number of protected poles 1
Overvoltage category 3
Pollution degree 3
Rated Current 2A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 250V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 35kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 35kA
Rated Voltage 230V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage type AC
Width 36mm
Width in number of modular spacings 2
