Siemens 5SY42047 Circuit Breaker 2-pole 4A 230V 400V 10kA 70mm

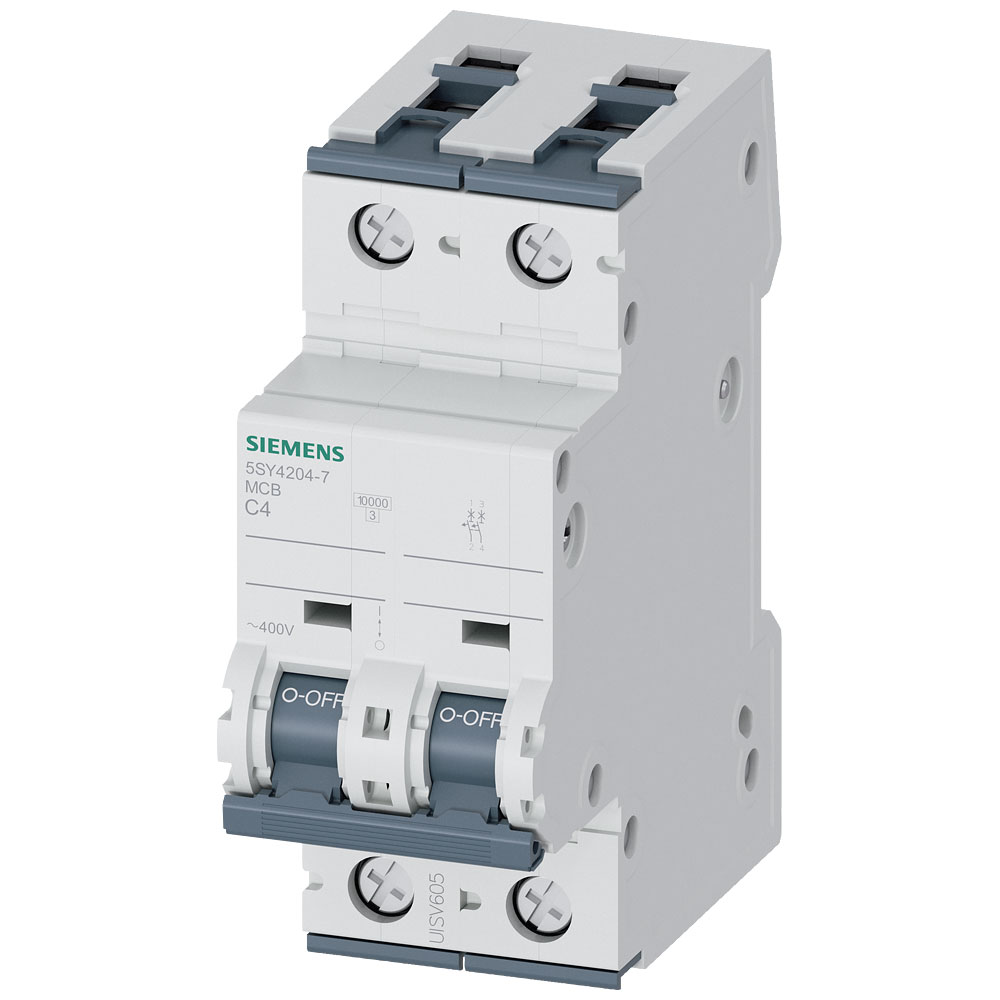

Image Representative of Range

Siemens 5SY42047 Circuit Breaker 2-pole 4A 230V 400V 10kA 70mm

Siemens
Order Code:

07-0502

Brand: Siemens MPN: 5SY42047 EAN-13: 4001869181615
Qty Unit Price (Ex VAT)
1+ £63.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Siemens circuit breaker 5SY42047 is designed for a rated current of 4 A and can operate at voltages of 230 V or 400 V. It is suitable for providing protection in domestic and commercial electrical installations. Typical applications include safeguarding electrical circuits from overloads and short circuits.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -40 - 70°C
Built-in depth 70mm
Circuit breaker type Miniature circuit breaker
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 0.75 - 35mm²
Connectable conductor cross section solid-core 0.75 - 35mm²
Country of origin Germany
Current limiting class 3
Current Ratng 4A
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 36 x 90 x 76 mm
Explosion-proof false
Factory colour Grey
Flush-mounted installation false
Frequency 50-60MHz
Height 90mm
Input Current 4 A
Input frequency 50/60 Hz
Input Voltage 400 V
International Protection (IP) code IP20
Number of Pins 2
Number of Poles 2
Number of poles (total) 2
Number of protected poles 2
Operating temperature (T-T) -40 - 70 °C
Overvoltage category 3
Package depth 84mm
Package height 92mm
Package width 40mm
Pollution degree 3
Power loss N/A
Product colour Grey
Protection Class III
Quantity per pack 1 pc(s)
Rated current 4A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 35kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 35kA
Rated voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage Rating 400V
Voltage type AC
Weight 312 g
Width 36mm
Width in number of modular spacings 2
