Siemens 5SV60167KK13 AFDD 13A 0.03A 230V RCCB+MCB for safe electrical use

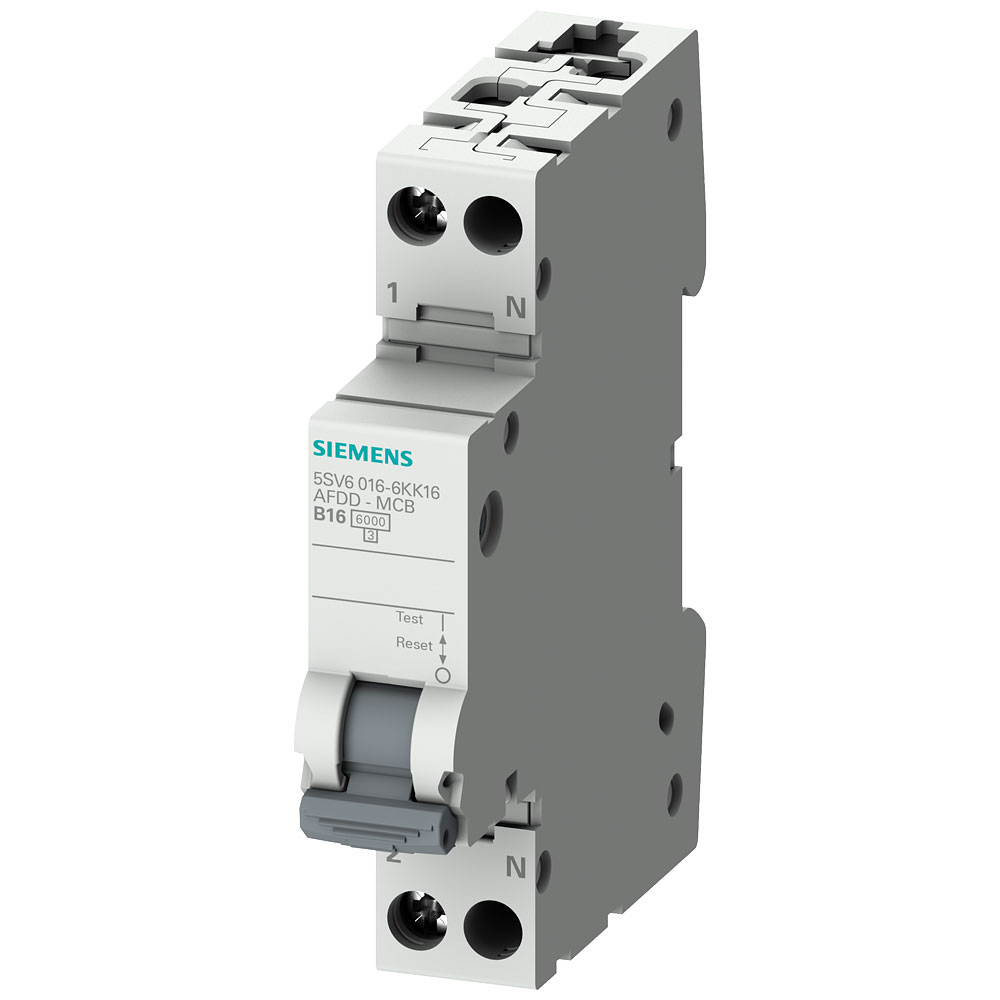

Image Representative of Range

Siemens 5SV60167KK13 AFDD 13A 0.03A 230V RCCB+MCB for safe electrical use

Siemens
Order Code:

07-0481

Brand: Siemens MPN: 5SV60167KK13 EAN-13: 4001869565064
Qty Unit Price (Ex VAT)
1+ £140.57
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
116 available to back orderBack-order availability date - 24/12/2025

Siemens manufactures this device model, the 5SV6016-7KK13, a 2-pin AFDD with a 13 A current rating and a sensitivity of 0.03 A for use in a 230 V system. It is designed to provide arc fault detection, offering enhanced protection in residential and commercial electrical circuits. Typical applications include preventing electrical fires by detecting dangerous arc flashes and interrupting the circuit.
Type AFDD
Current Rating 13A
Voltage Rating - AC 230V
Additional equipment attached at delivery Fire protection switch
Built-in depth 70mm
Colour White
Current limiting class 3
Degree of protection (IP) IP20
Depth 68.5mm
Differential current rating 0.03A
Dim (W x H x D) 18 x 90 x 68.5 mm
Height 90mm
Nominal Voltage 230V
Number of Pins 2
Number of Poles 2
Pollution degree 2
Rated short-circuit breaking capacity according to EN 60898 6kA
Rated short-circuit breaking capacity according to IEC 60947-2 6kA
Rated switch current auxiliary device 6000
Release characteristic C
Release characteristics C
Voltage type AC
Width 18mm
Width in number of modular spacings 1
