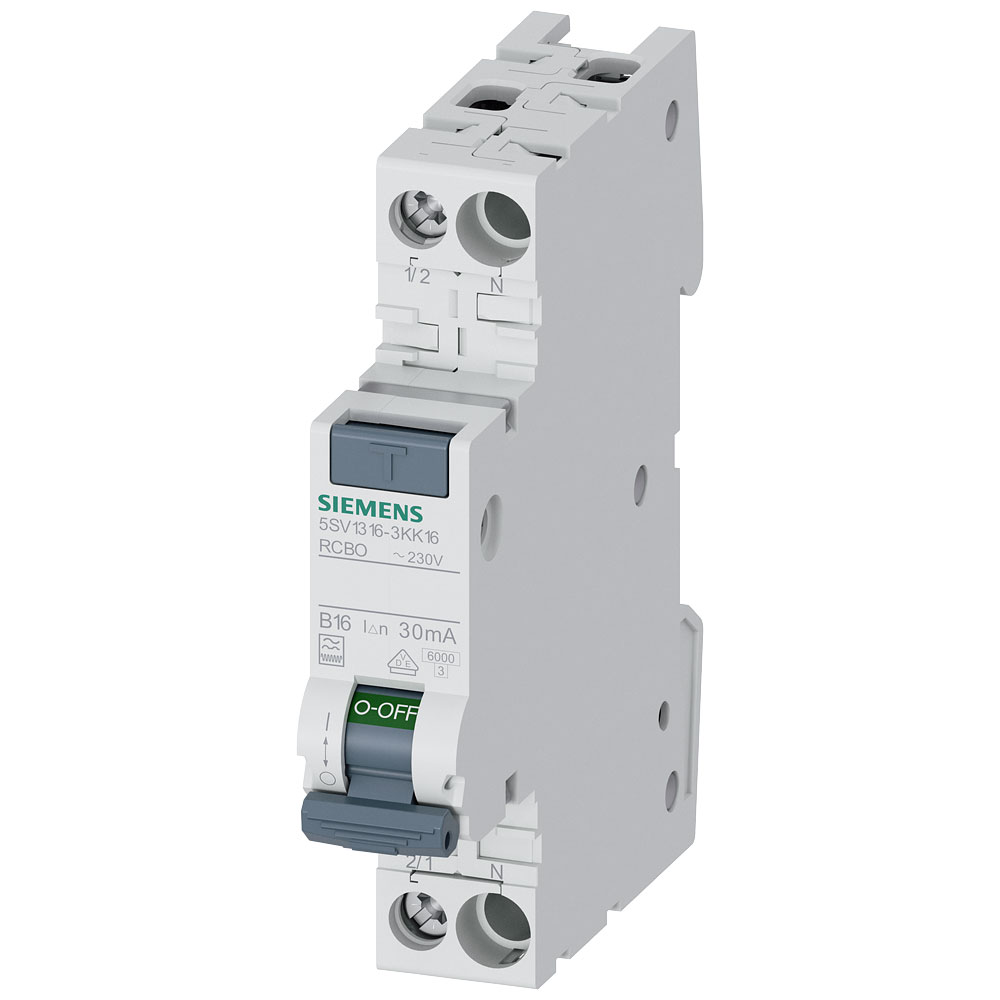

The Siemens 5SV1316-3KK16 RCBO is a circuit breaker offering a current rating of 16 A and a residual current rating of 0.03 A for enhanced electrical safety. Operating at 230 V, it combines overcurrent and earth fault protection, making it ideal for residential and commercial electrical systems. Typical applications include safeguarding circuits in homes, offices, and similar environments against electrical faults.
| Type |
RCBO |
| Ambient temperature during operating |
N/A |
| Anti-nuisance tripping version |
TRUE |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
0.75 - 16mm² |
| Connectable conductor cross section solid-core |
0.75 - 16mm² |
| Current limiting class |
3 |
| Current Ratng |
0.03A |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 18 x 90 x 70 mm |
| Disconnection characteristic |
Other |
| Flush-mounted installation |
true |
| Frequency |
N/A |
| Height |
90mm |
| Leakage current type |
Other |
| Misc Attribute |
Super-resistant K |
| Number of Poles |
1 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Overvoltage category |
2 |
| Pollution degree |
2 |
| Power loss |
N/A |
| Rated current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
253V |
| Rated short-circuit breaking capacity according to EN 61009 |
6 |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
15kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6 |
| Rated voltage |
230V |
| Release characteristic |
B |
| Release characteristics |
B |
| Surge current capacity |
3kA |
| Switch-off capacity |
6kA |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
18mm |
| Width in number of modular spacings |
1 |
| With interlocking device |
TRUE |
