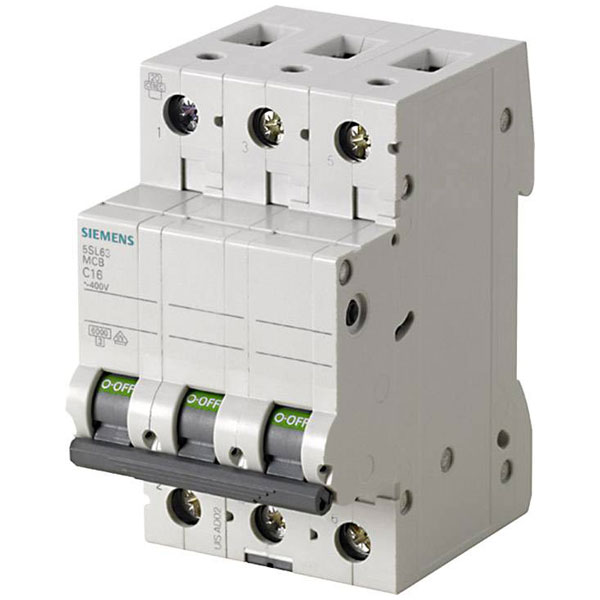

Siemens 5SL63406 SENTRON Circuit Breaker 3-pin 40A 400V 6kA easy install

Siemens
Order Code:

07-0372

Brand: Siemens MPN: 5SL63406 EAN-13: 4001869388908
Qty Was Unit Price (Ex VAT)
1+ £74.80 £69.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Siemens 5SL63406 circuit breaker is a 3-pin device rated for 40 A and 400 V, ideal for residential and commercial electrical systems. Manufactured by Siemens, this circuit breaker provides reliable protection against overloads and short circuits. It is commonly used in distribution boards to ensure safe electrical network management.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -25 - 45°C
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 0.75 - 25mm²
Connectable conductor cross section solid-core 0.75 - 25mm²
Current limiting class 3
Current Ratng 40A
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 54 x 90 x 76 mm
Explosion-proof false
Factory colour Grey
Flush-mounted installation false
Frequency 50-60MHz
Height 90mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 3
Pollution degree 2
Power loss N/A
Rated current 40A
Rated impulse withstand voltage Uimp N/A
Rated insulation voltage Ui N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 6kA
Rated voltage 400V
Release characteristic B
Release characteristics B
Voltage Rating 400V
Voltage type AC
Width 54mm
Width in number of modular spacings 3
