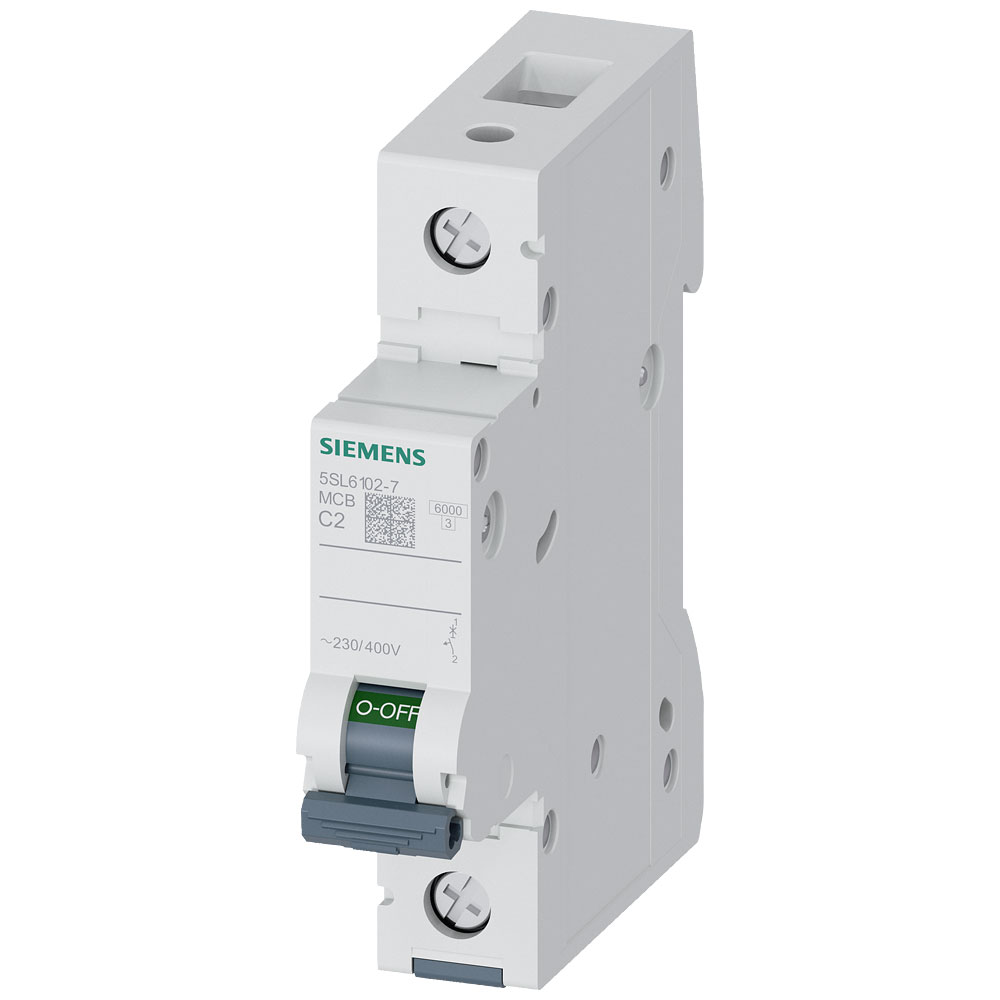

The Siemens 5SL61027 5SL6102-7 is a miniature circuit breaker designed for 400 V applications with a current rating of 2 A. It is ideal for protecting electrical circuits in machine installations and distribution systems. This automatic protection device helps prevent overcurrents, ensuring safety and reliability in both residential and industrial environments.
| Type |
Circuit breaker |
| Voltage Rating - AC |
400V AC |
| No. of Poles |
1 |
| Tripping Characteristics |
C |
| Additional equipment possible |
TRUE |
| Ambient temperature during operating |
-25 - 45°C |
| Built-in depth |
70mm |
| Compatible with (details) |
SENTRON |
| Concurrently switching neutral conductor |
FALSE |
| Connectable conductor cross section multi-wired |
0.75 - 25mm² |
| Connectable conductor cross section solid-core |
0.75 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
2A |
| Degree of protection (IP) |
IP20 |
| Depth |
76mm |
| Dim |
(W x H x D) 18 x 90 x 76 mm |
| Explosion-proof |
false |
| Factory colour |
Grey |
| Flush-mounted installation |
false |
| Frequency |
50-60MHz |
| Height |
90mm |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of poles (total) |
1 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
N/A |
| Rated current |
2A |
| Rated impulse withstand voltage Uimp |
N/A |
| Rated insulation voltage Ui |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
6kA |
| Rated voltage |
400V |
| Voltage Rating |
400V |
| Voltage type |
AC |
| Width |
18mm |
| Width in number of modular spacings |
1 |
