Siemens 5SL41166 SENTRON Circuit Breaker 1-pin 16 A 230 V/400 V

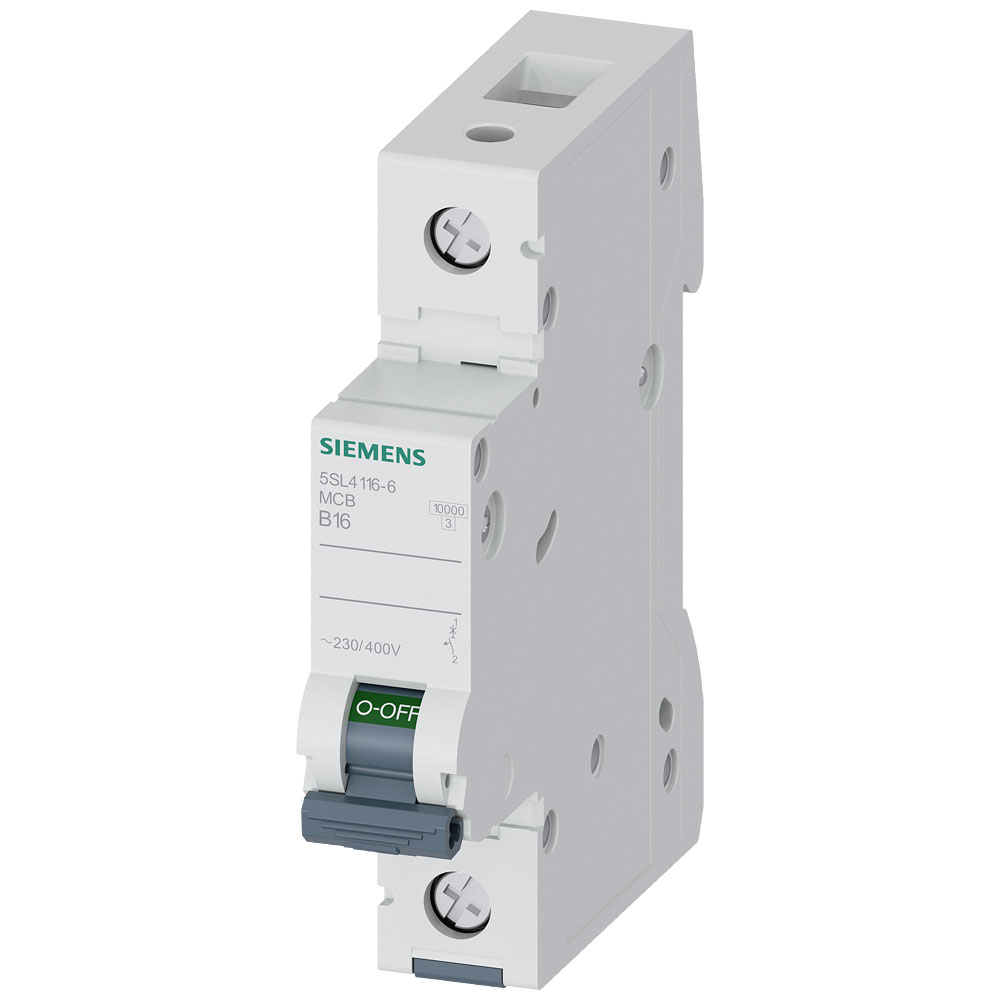

Image Representative of Range

Siemens 5SL41166 SENTRON Circuit Breaker 1-pin 16 A 230 V/400 V

Siemens
Order Code:

07-0344

Brand: Siemens MPN: 5SL41166 EAN-13: 4001869439242
Qty Was Unit Price (Ex VAT)
1+ £10.32 £8.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 4 working days

Siemens presents the 5SL41166 circuit breaker, a 1-pin device rated for 16 A at 230 V and 400 V. This circuit breaker is ideal for protecting electrical circuits in residential and commercial settings, ensuring reliable operation. Designed to prevent overloads and short circuits, it enhances safety in various applications.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -25 - 55°C
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 0.75 - 25mm²
Connectable conductor cross section solid-core 0.75 - 25mm²
Current limiting class 3
Current Ratng 16A
Degree of protection (IP) N/A
Depth 76mm
Dim (W x H x D) 18 x 90 x 76 mm
Explosion-proof false
Factory colour Grey
Flush-mounted installation false
Frequency N/A
Height 90mm
Number of Poles 1
Number of poles (total) 1
Number of protected poles N/A
Overvoltage category N/A
Pollution degree 2
Power loss N/A
Rated current 16A
Rated impulse withstand voltage Uimp N/A
Rated insulation voltage Ui N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 10kA
Rated voltage 400V
Release characteristic B
Release characteristics B
Voltage Rating 440V
Voltage type AC
Width 18mm
Width in number of modular spacings 1
