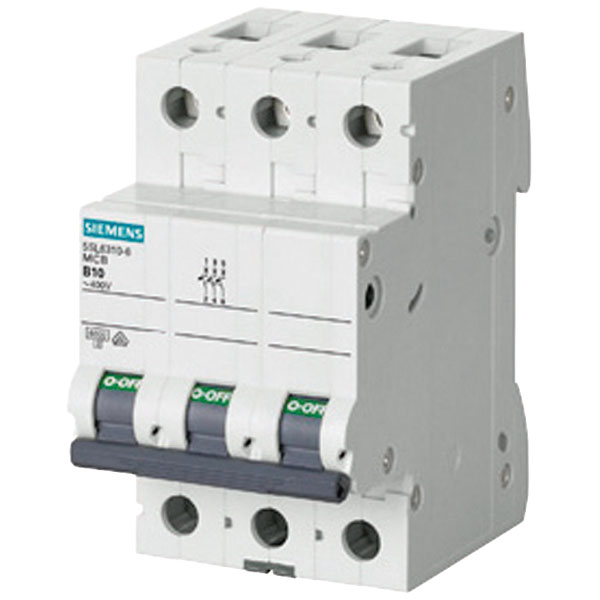

Siemens 5SL-6 DIN Rail Circuit Breaker Switch, 3-pin, Tripping Characteristic B

A range of Siemens 3-pin Miniature Circuit Breakers from the 5SL6 Series that are intended for use up to 6kA/10kA. They are suitable for the quick and easy mounting of additional components, such as auxiliary switches and fault signal contacts. The 5SL6 miniature circuit breakers can also be combined with shunt trips, under voltage releases and arc fault detection devices. They will guarantee the safe disconnection in the event of a short circuit and protect loads and the system from overload. They are also suitable for normal switching duty with loads that have a small number of switching operations as well as for reliable isolation of the equipment from the supply system.

To facilitate cable entry, the devices are equipped with rectangular terminals for the accommodation of pin busbars with cables up to 35mm². The circuit breakers are available for a rated current range of between 10A and 32A. The 5SL6 miniature circuit breakers are supplied with Tripping Characteristic B.

• Tripping Characteristic: B
• Operating voltage: 230/400
• Operational voltage: 24V DC
• Terminals: Screw
• Service life: 20,000 actuations
• Operating temperature: -25°C to 55°C
• Degree of protection: IP20
• Standards: EN 60898-1
• Supplied as 1-pin
• Available in 10, 13, 16, 20, 25 and 32A options
