Siemens 3UG4632-1AA30 Single Phase Voltage Monitoring Relay Digital SPDT-CO

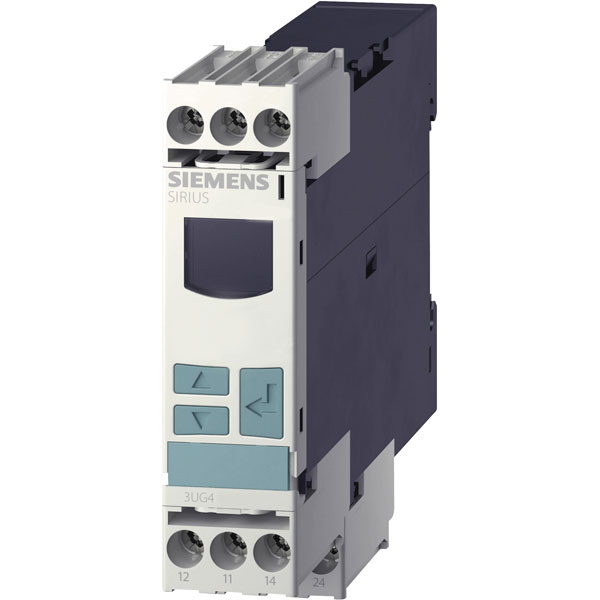

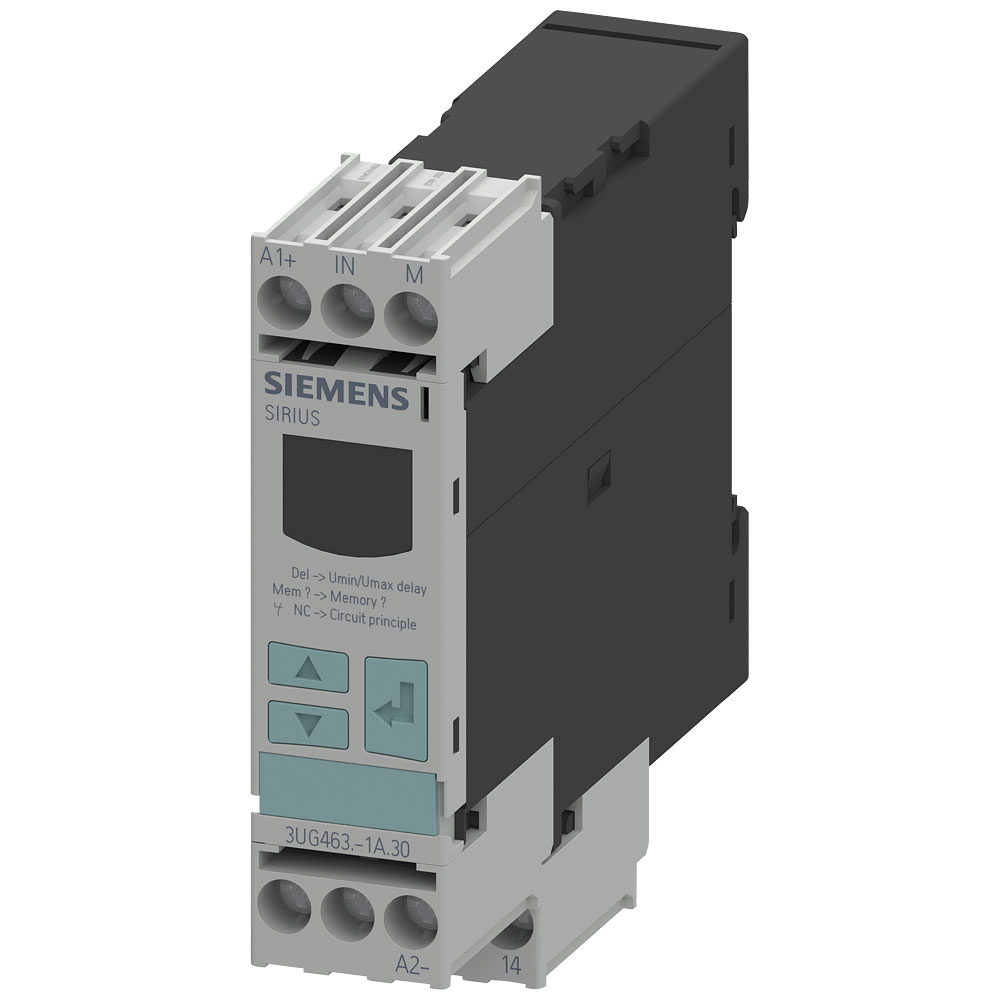

Image Representative of Range

Siemens 3UG4632-1AA30 Single Phase Voltage Monitoring Relay Digital SPDT-CO

Siemens
Extended range
Order Code:

64-8857

Brand: Siemens MPN: 3UG46321AA30 EAN-13: 4011209642454

  • Quickly find another product in this range by Operating Voltage (AC):

    0.1 to 60V 10 to 600V 10 to 600VV
Qty Unit Price (Ex VAT)
1+ £138.45
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

This digital relay has a measurable voltage of 10 to 600V AC and functions as a voltage monitoring relay for single-phase AC and DC voltages against a set threshold for overshoot and undershoot.

Typical applications for this device includes: protection of plant against destruction due to overvoltage, switch-on of plant at a defined voltage and higher, protection against overloaded supply voltages, particularly with battery power, threshold switch for analogue signals from 0.1 to 10 V.


  • LCD display
  • Control voltage 24V AC/DC
  • 1CO Contact
  • Adjustable overshoot, undershoot or range monitoring
  • Freely configurable delay times and RESET response
  • Width 22.5 mm
  • Display of ACTUAL value and status messages
  • Screw terminals
Type Voltage monitoring relay
Contact Configuration 1CO
Dimensions 92 x 22.5 x 91mm
Operating Voltage (AC) 10 to 600V
Operating Voltage (DC) N/A
Output Current N/A
Temperature Range -25 to +60°C
