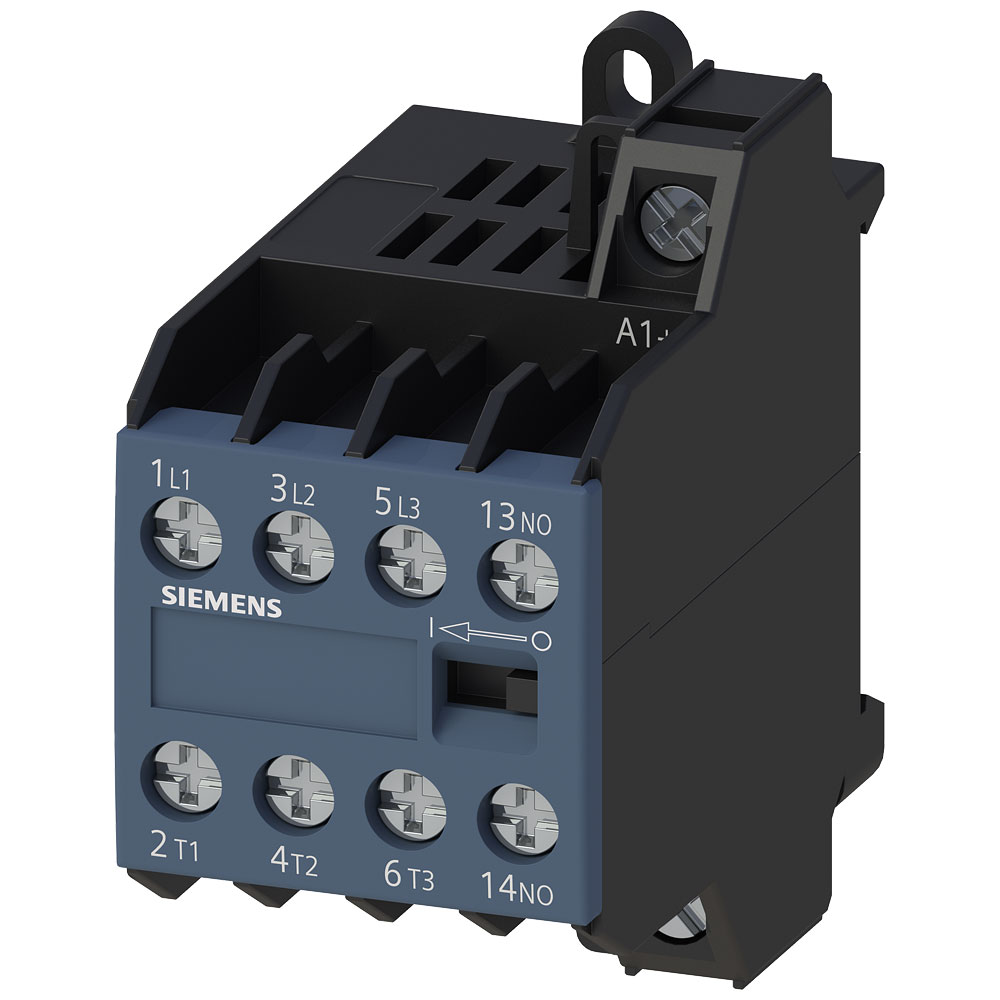

Siemens 3TG10100AC2 Magnetic starter 3-pole 335kW AC-3 380-420V

The Siemens 3TG1010-0AC2 is a magnetic starter, featuring three contactors and one breaker. This electrical component is designed for reliable control and protection in motor starting applications. It is typically used in industrial settings to ensure efficient operation of machinery and equipment.

Type	Magnetic starter
Connection	Screws
Depth	60mm
Dimensions	(W x H x D) 36 x 62 x 60 mm
Height	62mm
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute	3TG1010-0AC2
Mounting Style	Screws
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	20A
Rated operation current Ie at AC-3, 400 V	8.4A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	3.677493749
Suitable for distribution board	TRUE
Terminals	Screws
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	36mm
