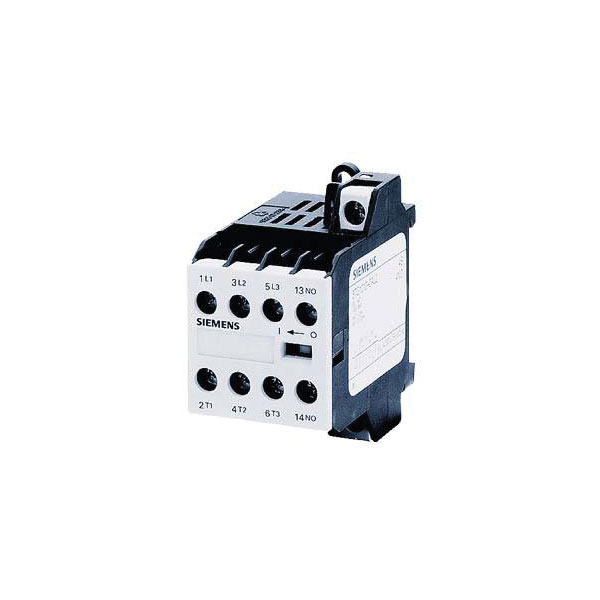

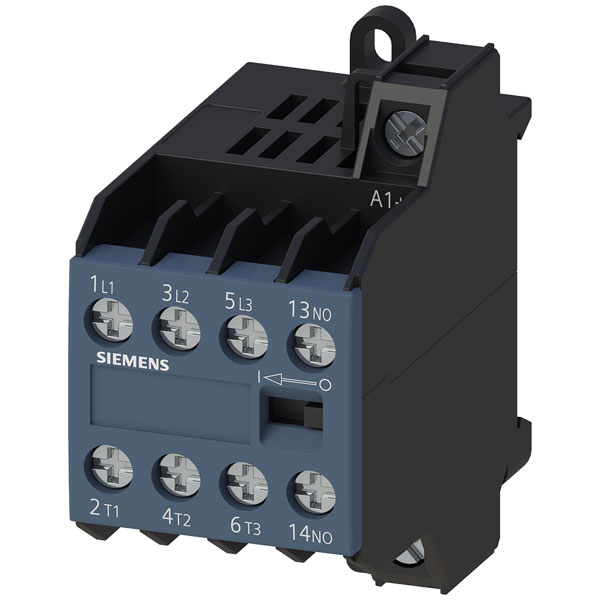

Siemens 3TG1010-0AL2 Magnetic starter Size 4 2-pole 24 V DC 75 A

The Siemens 3TG1010-0AL2 is a magnetic starter featuring three makers and one breaker, suitable for controlling electrical equipment. It is designed to manage circuits and provide protection in various electrical systems. Common applications include industrial machinery, HVAC systems, and other electrical power control settings.

Type	Magnetic starter
Coil Voltage	24V DC
Connection	Screws
Depth	60mm
Dimensions	(W x H x D) 36 x 62 x 60 mm
Height	62mm
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute	3TG1010-0AL2
Mounting Style	Screws
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	20A
Rated operation current Ie at AC-3, 400 V	8.4A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	3.677493749
Suitable for distribution board	TRUE
Terminals	Screws
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.15
Width	36mm
