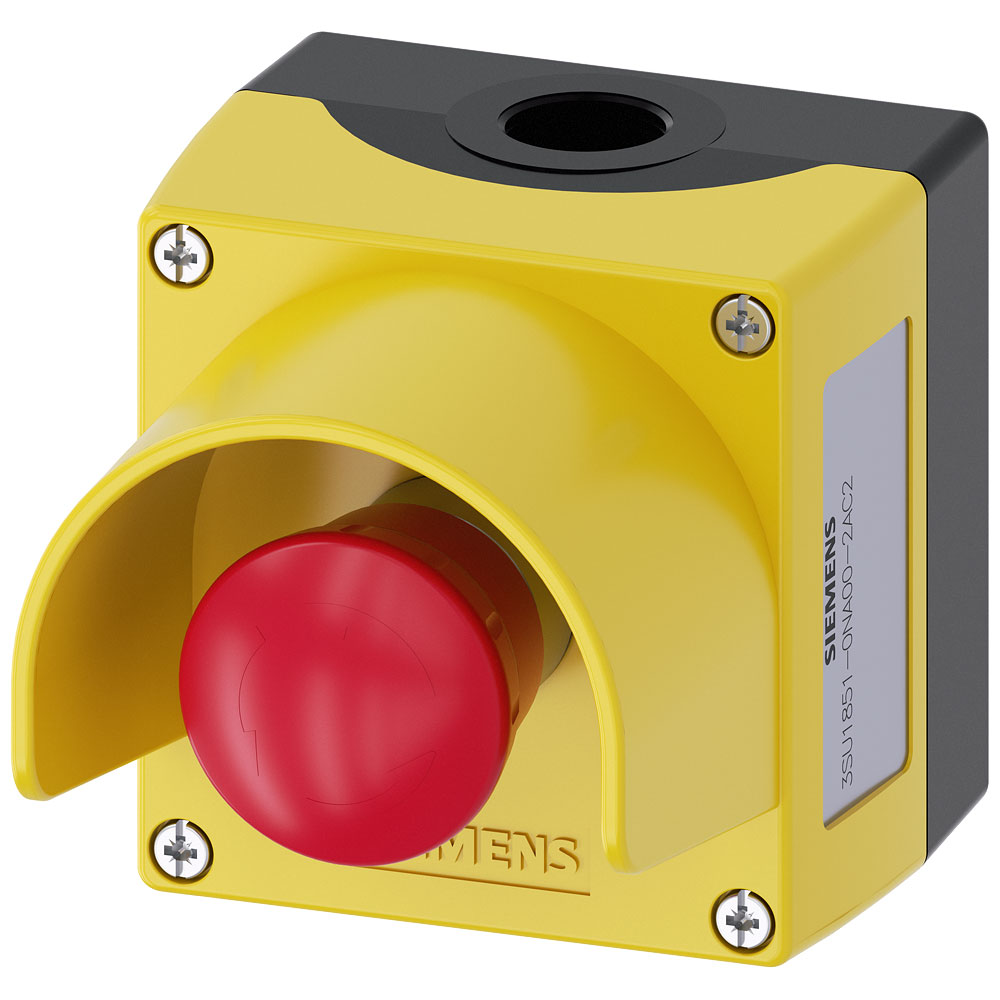

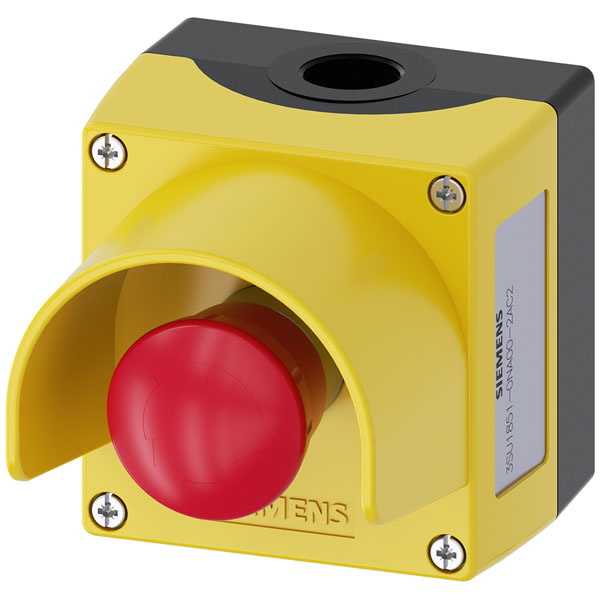

Siemens 3SU1851-0NA00-2AC2 SIRIUS ACT enclosure yellow 1NC metal 22mm

Image Representative of Range

Siemens 3SU1851-0NA00-2AC2 SIRIUS ACT enclosure yellow 1NC metal 22mm

Siemens
Order Code:

06-9145

Brand: Siemens MPN: 3SU18510NA002AC2 EAN-13: 4011209969278
Qty Unit Price (Ex VAT)
1+ £108.31
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

The Siemens 3SU1851-0NA00-2AC2 enclosure with a protective sleeve is yellow and measures 89.4 x 85 x 112.5 mm. It is designed for safeguarding electrical components in various industrial settings. Typical applications include ensuring safety in control panels and machinery housing.
Type Enclosure
Colour Yellow
Colour housing cover Yellow
Compatible with (details) Control Devices
Connection Screws
Contact Type 1 breaker
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) N/A
Height 112.5mm
Housing Colour N/A
Housing Material Metal
IP Rating IP67/IP69K
Length 89.4mm
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 With protective collar and mushroom pushbutton
Misc Attribute 2 3SU1851-0NA00-2AC2
Number of command positions 1
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 0
Number of indicator lights 0
Number of key switches 0
Number of mushroom-shaped push-buttons 1
Number of push buttons 0
Number of selector switches 0
Power Consumption N/A
Rated control supply voltage AC 50 Hz 5 - 500V
Rated control supply voltage AC 60 Hz 5 - 500V
Rated control supply voltage DC 5 - 500V
Recess diameter 22mm
Size/ Dimensions (L x W x H) 89.4 x 85 x 112.5 mm
Suitable for emergency stop TRUE
Switch Rating 500V
Switch/button features + protective sleeve
Switching current (max.) 10A
Unlocking mechanism Turn
Width 85mm
