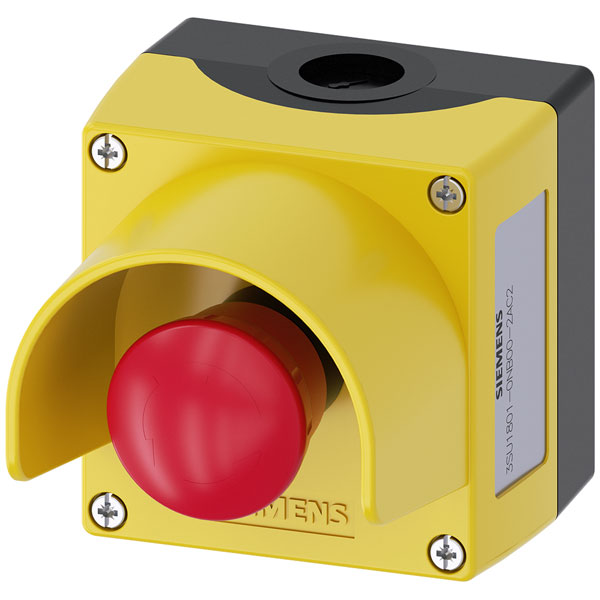

Siemens 3SU18010NB002AC2 SIRIUS ACT kill Switch yellow plastic enclosure

The Siemens kill switch, model 3SU1801-0NB00-2AC2, features a yellow protective sleeve and an enclosure made of plastic, with a turn-type actuation. It is designed as a single command point for safety applications, ensuring quick and reliable shutdown in emergencies. This component is typically used in industrial control systems to enhance workplace safety.

IP Rating	IP67/IP69K
Type	Kill switch
Colour housing cover	Yellow
Contact Configuration	2 breakers
Degree of protection (NEMA)	N/A
Dimensions	(L x W x H) 85 x 85 x 112.5 mm
Factory colour	Yellow
Height	112.5mm
Housing Colour	N/A
Housing Material	Plastic
Length	85mm
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1801-0NB00-2AC2
Nominal Voltage	500V
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of indicator lights	0
Number of key switches	0
Number of mushroom-shaped push-buttons	1
Number of Poles	0
Number of push buttons	0
Number of selector switches	0
Power Consumption	N/A
Rated control supply voltage AC 50 Hz	5 - 500V
Rated control supply voltage AC 60 Hz	5 - 500V
Rated control supply voltage DC	5 - 500V
Recess Diameter	22mm
Suitable for emergency stop	TRUE
Unlocking mechanism	Turn
Width	85mm
