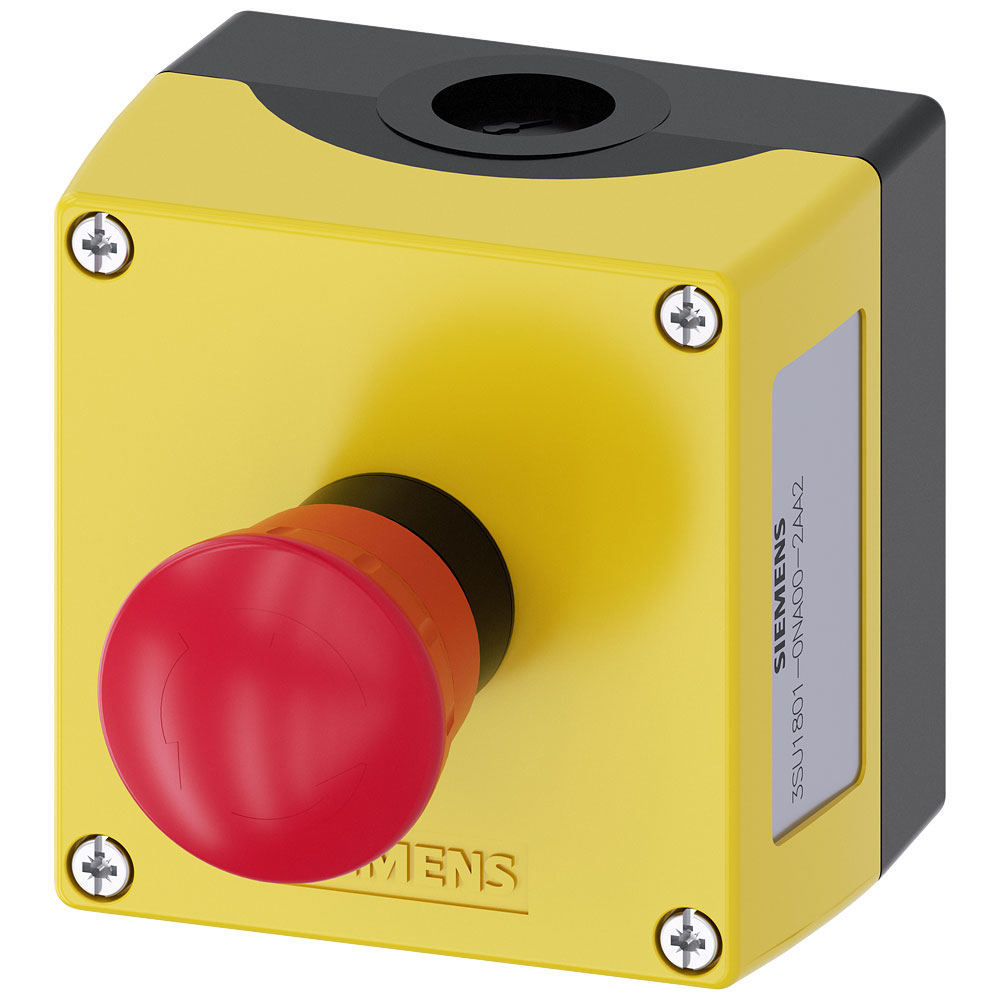

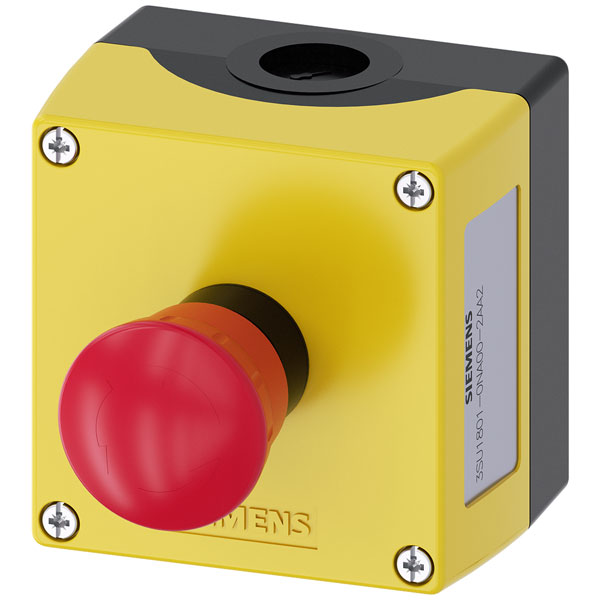

The Siemens 3SU18010NA002AA2 is a yellow kill switch housed in a durable plastic enclosure, featuring a single command point for easily managing emergency operations. It is commonly used in industrial settings to ensure safety by providing a rapid means to disconnect power during hazardous situations. This switch is suitable for a wide range of emergency stop applications.
| IP Rating |
IP67/IP69K |
| Type |
Kill switch |
| Colour housing cover |
Yellow |
| Contact Configuration |
1 breaker |
| Country of origin |
Germany |
| Degree of protection (NEMA) |
N/A |
| Dimensions |
(L x W x H) 85 x 85 x 109 mm |
| Factory colour |
Yellow |
| Height |
109mm |
| Housing Colour |
N/A |
| Housing Material |
Plastic |
| Length |
85mm |
| Maximum Temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
3SU1801-0NA00-2AA2 |
| Nominal Voltage |
500V |
| Number of command positions |
1 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
0 |
| Number of indicator lights |
0 |
| Number of key switches |
0 |
| Number of mushroom-shaped push-buttons |
1 |
| Number of Poles |
0 |
| Number of push buttons |
0 |
| Number of selector switches |
0 |
| Package depth |
95mm |
| Package height |
134mm |
| Package width |
99mm |
| Power Consumption |
N/A |
| Product colour |
Red, Yellow |
| Rated control supply voltage AC 50 Hz |
5 - 500V |
| Rated control supply voltage AC 60 Hz |
5 - 500V |
| Rated control supply voltage DC |
5 - 500V |
| Recess Diameter |
22mm |
| Suitable for emergency stop |
TRUE |
| Switch/button features |
+ enclosure |
| Unlocking mechanism |
Turn |
| Weight |
330g |
| Width |
85mm |
