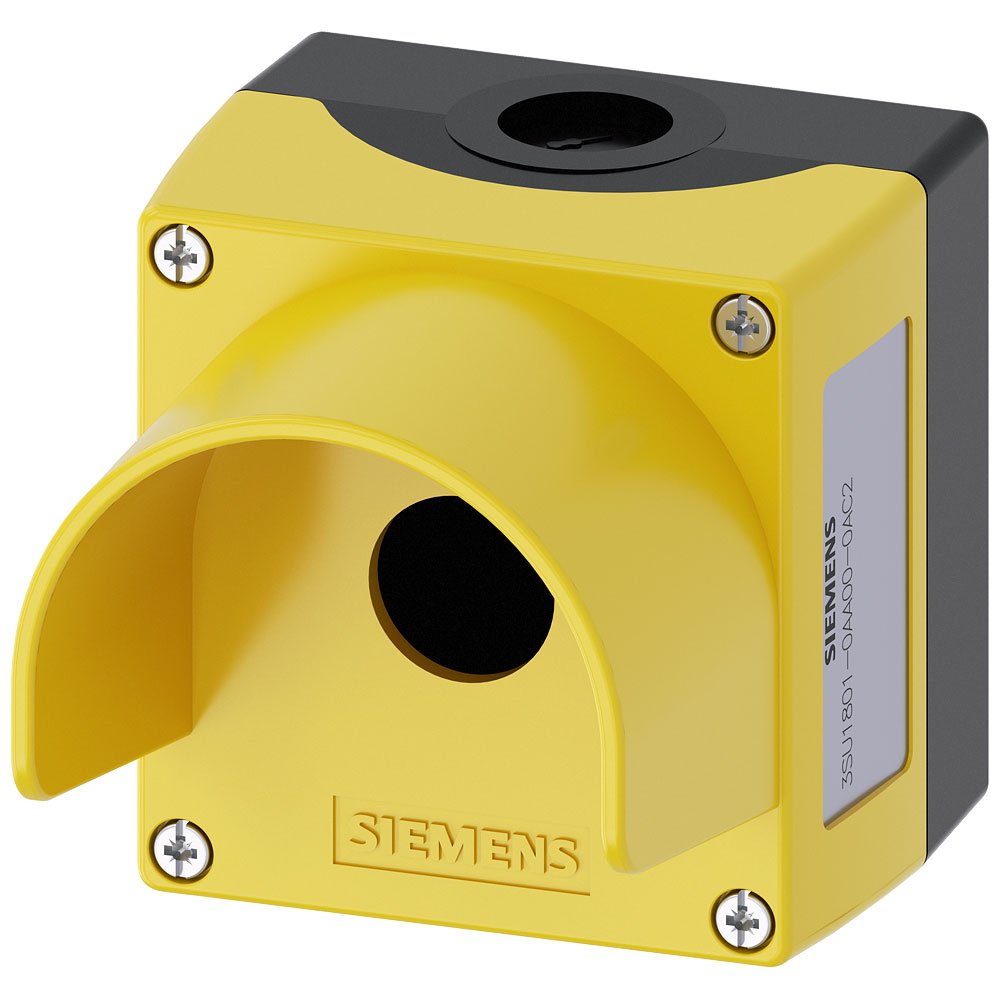

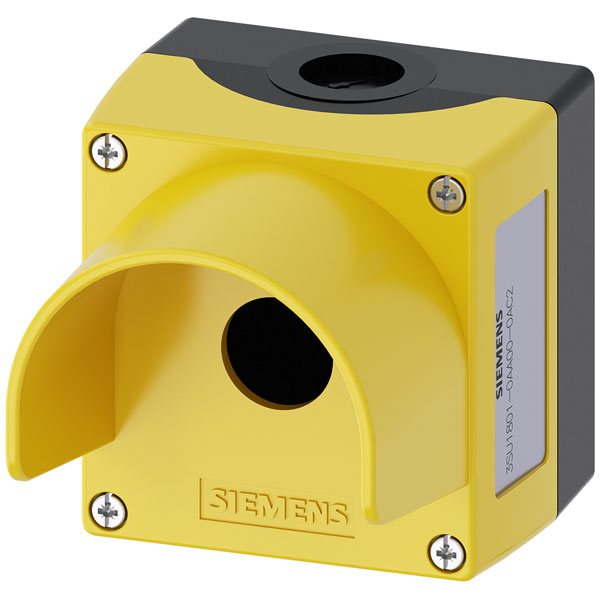

Siemens 3SU18010AA000AC2 SIRIUS ACT enclosure yellow 1 command point

Siemens produces the 3SU1801-0AA00-0AC2 enclosure with one installation slot which includes a protective sleeve. The enclosure is yellow, measuring 85 x 85 x 112.5 mm, and is available as a single unit. It is typically used in electrical control panels for housing switches and other components, providing both protection and visibility.

IP Rating	IP67/IP69K
Type	Enclosure
Colour	Yellow
Colour housing cover	Yellow
Compatible with (details)	Control Devices
Construction type housing	Surface mounting housing
Degree of protection (NEMA)	Other
Depth	112.5mm
Diameter openings	22.3mm
Height	85mm
Housing Material	Plastic
Housing material quality	N/A
Length	85mm
Material	Plastic
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	With protective collar
Misc Attribute 2	3SU1801-0AA00-0AC2
Number of command positions	1
Recess Diameter	22mm
Size/ Dimensions	(L x W x H) 85 x 85 x 112.5 mm
Width	85mm
