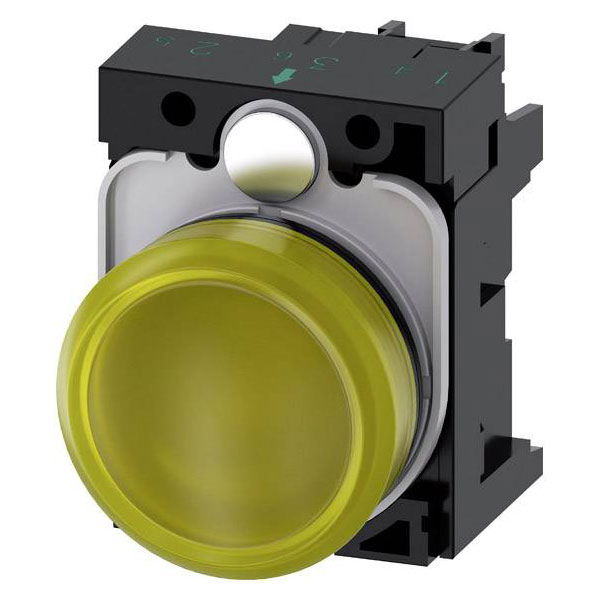

Siemens 3SU11026AA301AA0 SIRIUS ACT indicator light yellow 24V LED

The Siemens 3SU1102-6AA30-1AA0 is a yellow indicator light designed for use with 24 V AC or DC systems. It is suitable for signalling and control applications, offering clear visual status indication. This component is typically utilised in industrial control panels and automation systems.

Type	Indicator light
Lamp/Lens Colour	Yellow
(Ø)	29.45mm
Colour front ring	Other
Colour lens	N/A
Connection	Screws
Construction type lens	N/A
Country of origin	Czech Republic
Degree of protection (IP)	IP67/IP69K
Degree of protection (NEMA)	Other
Dimensions	(Ø x H) 29.45 mm x 40 mm
Height	40mm
Height opening	11.799999999mm
Hole Diameter	22.3mm
Light bulb included	Yes
Material front ring	Other
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	3SU1102-6AA30-1AA0
Misc Attribute 2	Plastic
Number of indicator lights	1
Package depth	30mm
Package height	100mm
Package width	50mm
Panel Cutout Size	22.3mm
Quantity per pack	1 pc(s)
Rated operating voltage Ue	24 - 24V
Recess Diameter	22mm
Switch/button features	planar
Type of electric connection	N/A
Type of lamp socket	Other
Type of lens	N/A
Voltage type	AC/DC
Width	30mm
Width opening	29.5mm
With front ring	FALSE
With light source	TRUE
