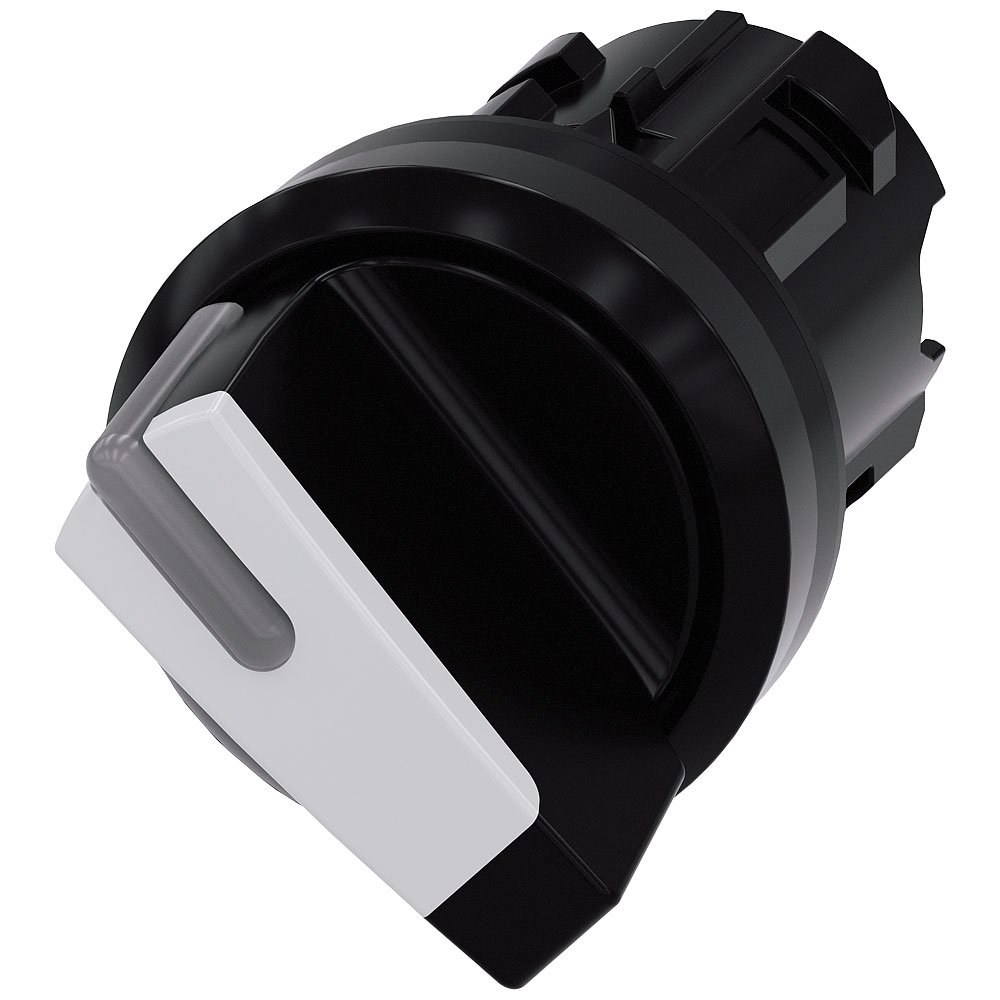

Siemens 3SU10022BF600AA0 SIRIUS ACT toggle Switch black/white 90° PVC

Siemens manufactures the 3SU10022BF600AA0 black and white PVC knob, featuring a front ring and a 90° turn capability. This switch component is typically used in control panels for industrial applications, providing reliable manual control. It is suitable for environments requiring durable, user-friendly interface solutions.

Type	Knob
Colour	White
Colour control element	White
Colour front ring	Black
Colour indicator light cap	White
Construction type lens	Rectangular
Degree of protection (IP), front side	IP67/IP69K
Degree of protection (NEMA)	N/A
Dim	(W x H) 32.3 mm x 32.3 mm
Durability	1000000
Functions	latch
Height	32.3mm
Height opening	28.8mm
Hole Diameter	22.3mm
Lighting Type	Arrow symbol
Material	Plastic
Material front ring	Plastic
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1002-2BF60-0AA0
Number of Switch Positions	2
Print motif	Arrow symbol
Recess Diameter	22mm
Shape	Round
Spring-return	FALSE
Suitable for lighting	TRUE
Switch position	1 x Off/On
Switch/button features	Front ring (PVC)
Switching angle	1 x 90 °
Switching function latching	TRUE
Type of control element	Toggle
Weight	23g
Width	32.3mm
Width opening	32.3mm
With front ring	TRUE
