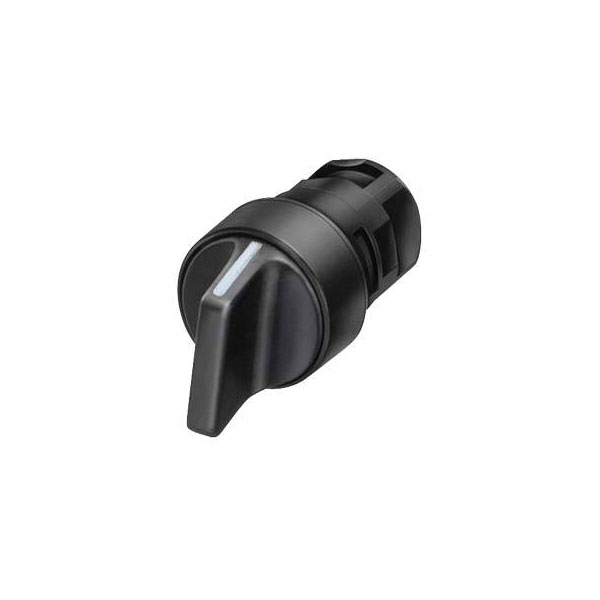

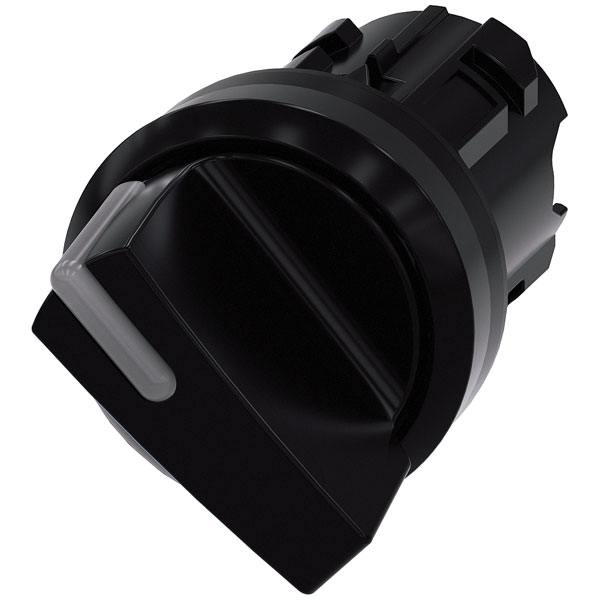

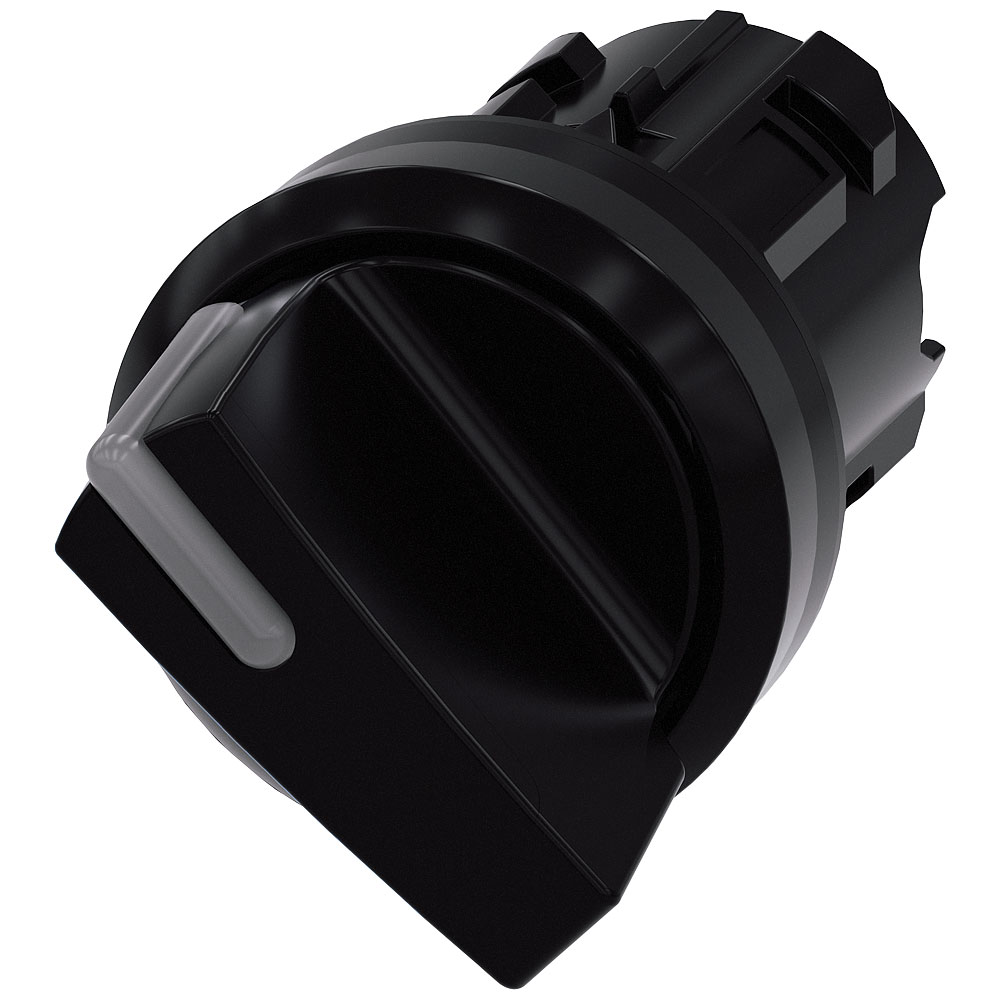

Siemens 3SU10022BF100AA0 SIRIUS ACT knob Switch illuminated 22mm O-I

The Siemens 3SU1002-2BF10-0AA0 is an illuminable toggle switch knob with a front ring made of PVC. It features a black design and can rotate 90 degrees, making it suitable for various control applications. Commonly used in industrial settings, it enhances operator interface by providing clear and reliable switching functions.

Type	Knob
Button Ø	32.3mm
Colour	White
Colour control element	Black
Colour front ring	Black
Colour indicator light cap	Other
Construction type lens	Rectangular
Degree of protection (IP), front side	IP67/IP69K
Degree of protection (NEMA)	N/A
Dim	(W x H) 32.3 mm x 32.3 mm
Durability	1000000
Factory colour	Black
Functions	latch
Height	32.3mm
Height opening	28.8mm
Hole Diameter	22.3mm
Material front ring	Plastic
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	Actuation/signaling element
Misc Attribute 2	3SU1002-2BF10-0AA0
Number of Switch Positions	2
Operation type	Toggle
Print motif	Arrow symbol
Recess Diameter	22.3mm
Shape	Knob
Spring-return	FALSE
Suitable for lighting	TRUE
Switch position	1 x Off/On
Switching angle	1 x 90 °
Switching function latching	TRUE
Type of control element	Toggle
Width	32.3mm
Width opening	32.3mm
With front ring	TRUE
