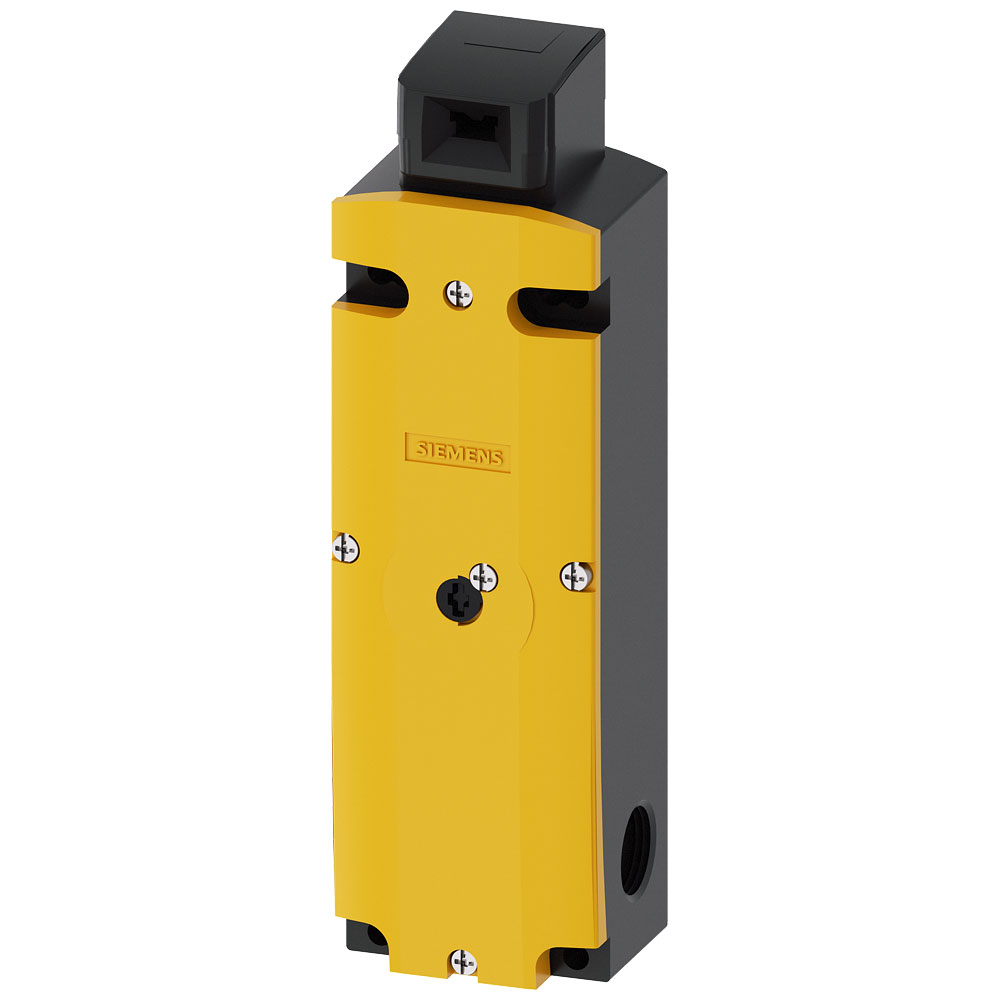

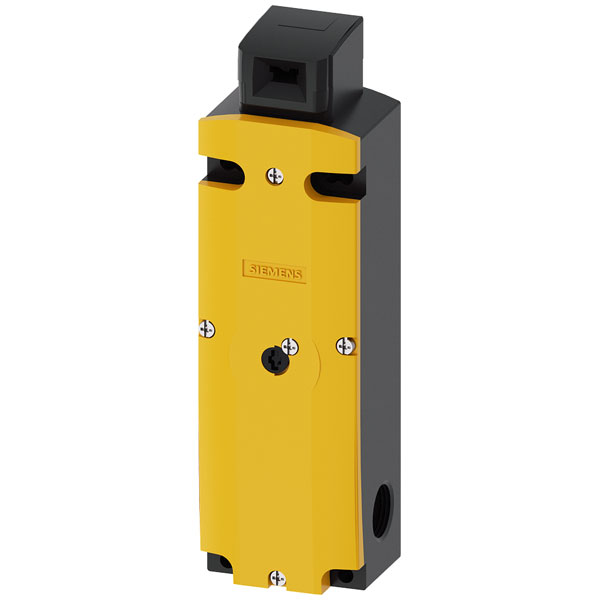

Siemens manufactures the 3SE5322-0SD21 door-operated switch, designed for a 230 V, 6 A capacity. It boasts IP66 and IP67 ratings, ensuring resistance to dust and water ingress. Typically used in safety applications, it serves as a position switch or emergency power off button in industrial settings.
| Type |
Door-operated switch |
| Actuating force |
30N |
| Coating housing |
Uncoated |
| Connection |
Screws |
| Construction type housing |
Special construction |
| Contact material |
Silver alloy |
| Degree of protection (IP) |
IP66/IP67 |
| Depth |
43.5mm |
| Dim |
(L x W) 185 mm x 54 mm |
| Durability |
1000000 |
| Electrical lifespan |
1000000 |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Factory colour |
Yellow |
| Guard locking force |
1300N |
| Height of sensor |
43.5mm |
| Housing Material |
Plastic |
| Length |
185mm |
| Length of sensor |
185mm |
| Material |
Plastic |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
3SE5322-0SD21 |
| Number of contacts as change-over contact |
0 |
| Number of safety auxiliary contacts |
4 |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.55A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| RoHS-compliant |
Yes |
| Suitable for safety functions |
TRUE |
| Switching current (max.) |
6A |
| Switching voltage |
230V |
| Thread Size |
M20 x 1.5 |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Type of switching contact |
Slow-action switch |
| Weight |
0.526kg |
| Width |
54mm |
| Width sensor |
54mm |
| With escape release |
FALSE |
| With status indication |
FALSE |
