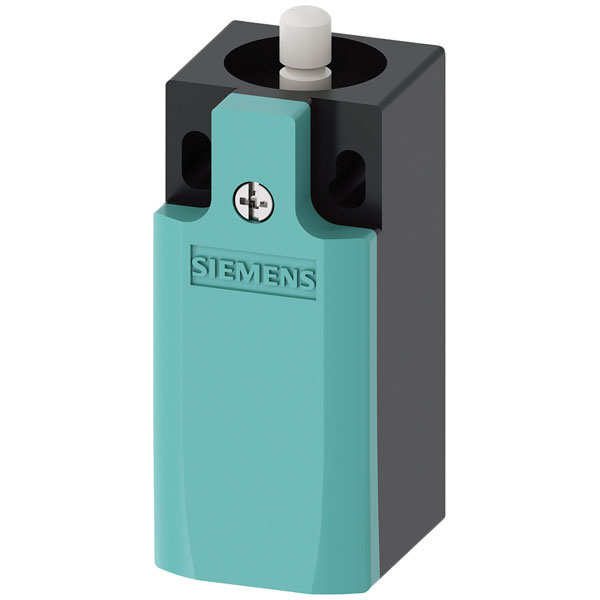

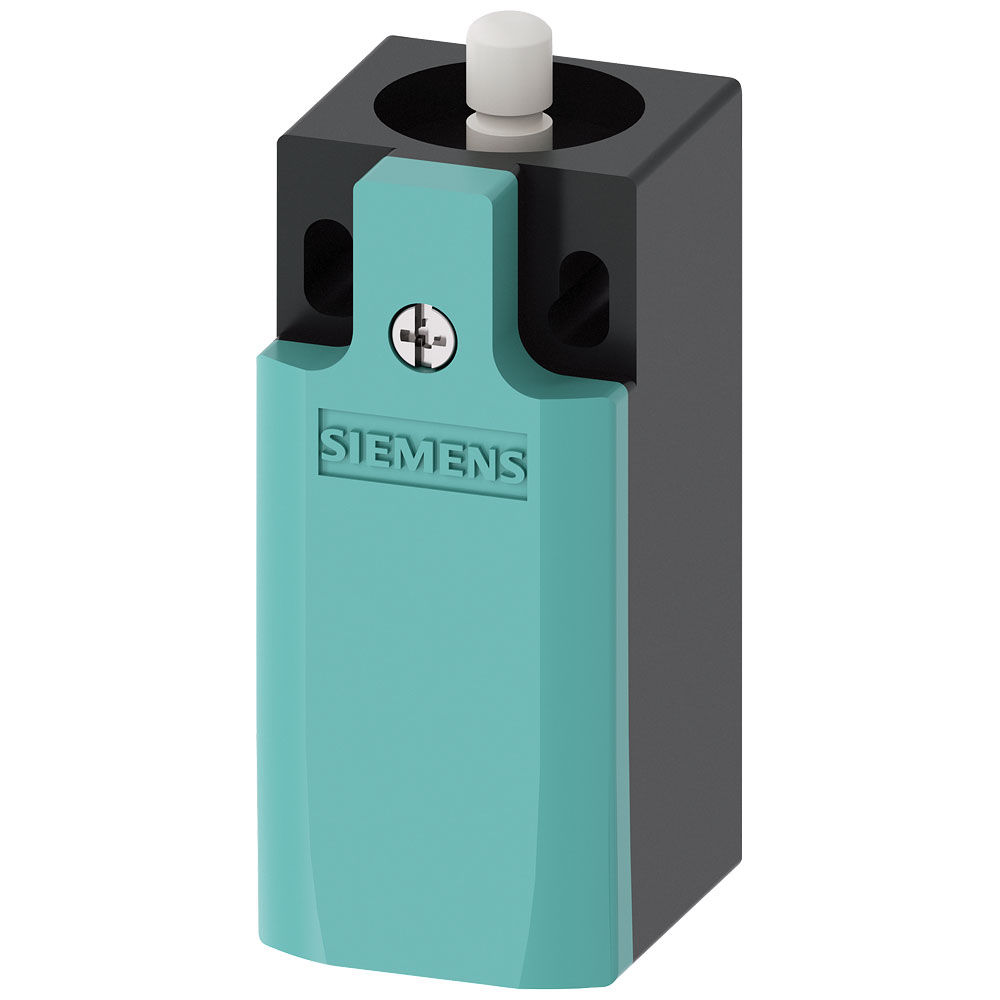

Siemens manufactures the 3SE5232-0PC05 door-operated switch, featuring a durable Teflon tappet. This switch is rated at 6 A and has an IP65 protection rating, making it suitable for environments requiring moisture and dust resistance. It is typically used in factory automation and machinery safety systems.
| Type |
Door-operated switch |
| Actuating force |
20N |
| Alignment of the control element |
Roller cam straight |
| Coating housing |
Other |
| Connection |
Screws |
| Construction type housing |
Cuboid |
| Contact material |
Silver alloy |
| Degree of protection (IP) |
IP65 |
| Degree of protection (NEMA) |
12 |
| Dim |
(L x W) 75.7 mm x 31 mm |
| Durability |
1.5E7 |
| Electrical lifespan |
100000 |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
TRUE |
| Height of sensor |
33mm |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Length |
75.7mm |
| Length of sensor |
75.7mm |
| Material |
Plastic |
| Max. temperature |
+85°C |
| Min. temperature |
-25°C |
| Misc Attribute |
3SE5232-0PC05 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
2 |
| Number of safety auxiliary contacts |
1 |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.55A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| RoHS-compliant |
Yes |
| Suitable for safety functions |
TRUE |
| Switching current (max.) |
6A |
| Switching function |
Slow-action switch |
| Switching function latching |
FALSE |
| Thread Size |
M20 x 1.5 |
| Type of control element |
Plunger |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Weight |
69g |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
