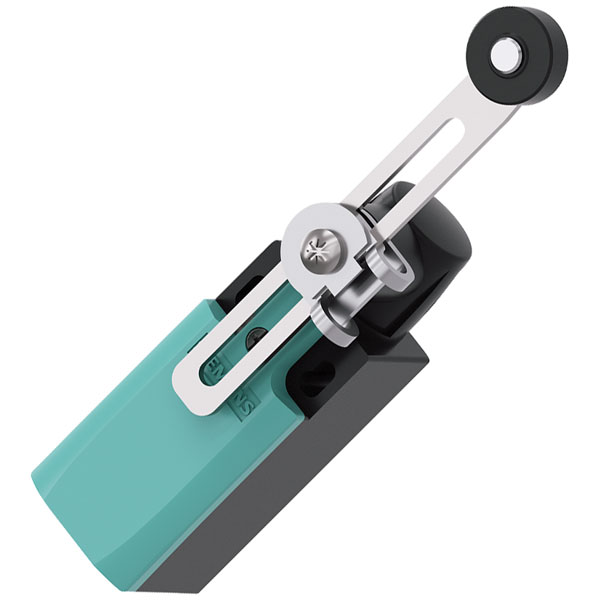

Siemens manufactures the 3SE5232-0LK50 door-operated switch, featuring a 6 A rotary lever with a metal shaft and plastic wheel. It offers a robust design rated at IP65, suitable for demanding environments. This switch is typically used for controlling door positions and emergency power off functions.
| Type |
Door-operated switch |
| Alignment of the control element |
Roller cam straight |
| Coating housing |
Other |
| Connection |
Screws |
| Construction type housing |
Cuboid |
| Contact material |
Silver alloy |
| Degree of protection (IP) |
IP65 |
| Degree of protection (NEMA) |
12 |
| Dim |
(L x W) 182 mm x 31 mm |
| Durability |
15000000 |
| Electrical lifespan |
100000 |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
FALSE |
| Height of sensor |
49.4mm |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Length |
182mm |
| Length of sensor |
182mm |
| Material |
Plastic |
| Max. temperature |
+85°C |
| Min. temperature |
-25°C |
| Misc Attribute |
3SE5232-0LK50 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
2 |
| Number of contacts as normally open contact |
1 |
| Number of safety auxiliary contacts |
0 |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.55A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| RoHS-compliant |
Yes |
| Suitable for safety functions |
FALSE |
| Switching current (max.) |
6A |
| Switching function |
Quick-break switch |
| Switching function latching |
FALSE |
| Thread Size |
M20 x 1.5 |
| Type of control element |
Adjustable rotary lever |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Weight |
120g |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
