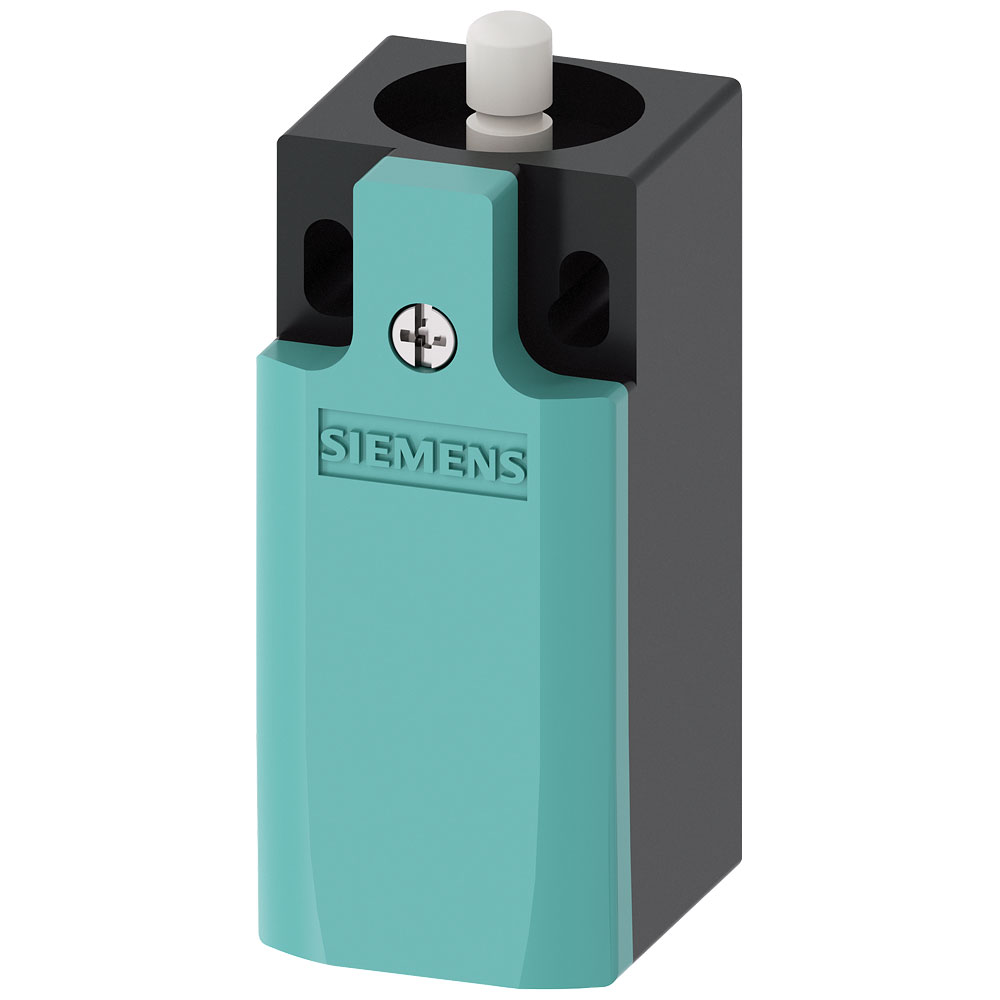

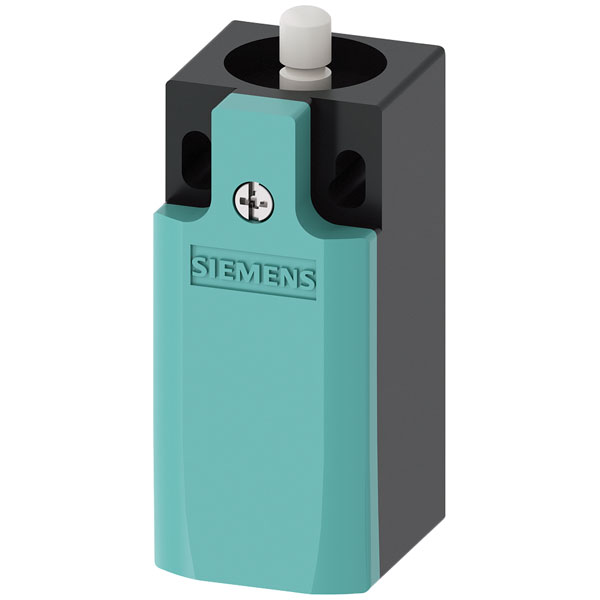

Siemens 3SE5232-0KC05 Sirius Position Switch Plastic 31mm 1x 1NO/2NC Slow-action

Image Representative of Range

Siemens 3SE5232-0KC05 Sirius Position Switch Plastic 31mm 1x 1NO/2NC Slow-action

Siemens
Order Code:

57-5494

Brand: Siemens MPN: 3SE52320KC05 EAN-13: 4011209694446
Qty Unit Price (Ex VAT)
1+ £24.02
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Sirius 3SE5 mechanical position switches are compact and straight forward to connect. The range consists of a set of switches and actuators which can respond to many design challenges. Select the switch, add an actuator and you are ready to go.
  • Standard position switch
  • Contacts 2 x NC, 1 x NO
  • Cable entry type 1 x (M20 x 1.5)
  • Slow-action contacts
  • Connection by screw-type terminals
  • Mechanism Teflon plunger
  • Enclosure material plastic
  • Switch head enclosure material plastic
  • Mechanical service life 15,000,000 cycles typical
  • Minimum actuating force 20N
  • Protection class IP65
  • Width 31mm
  • Depth 45mm
  • Colour Similar to RAL 9010
Type Mechanical position switch
Contact Configuration 2x SPNC + 1x SPNO
Action Slow / action
