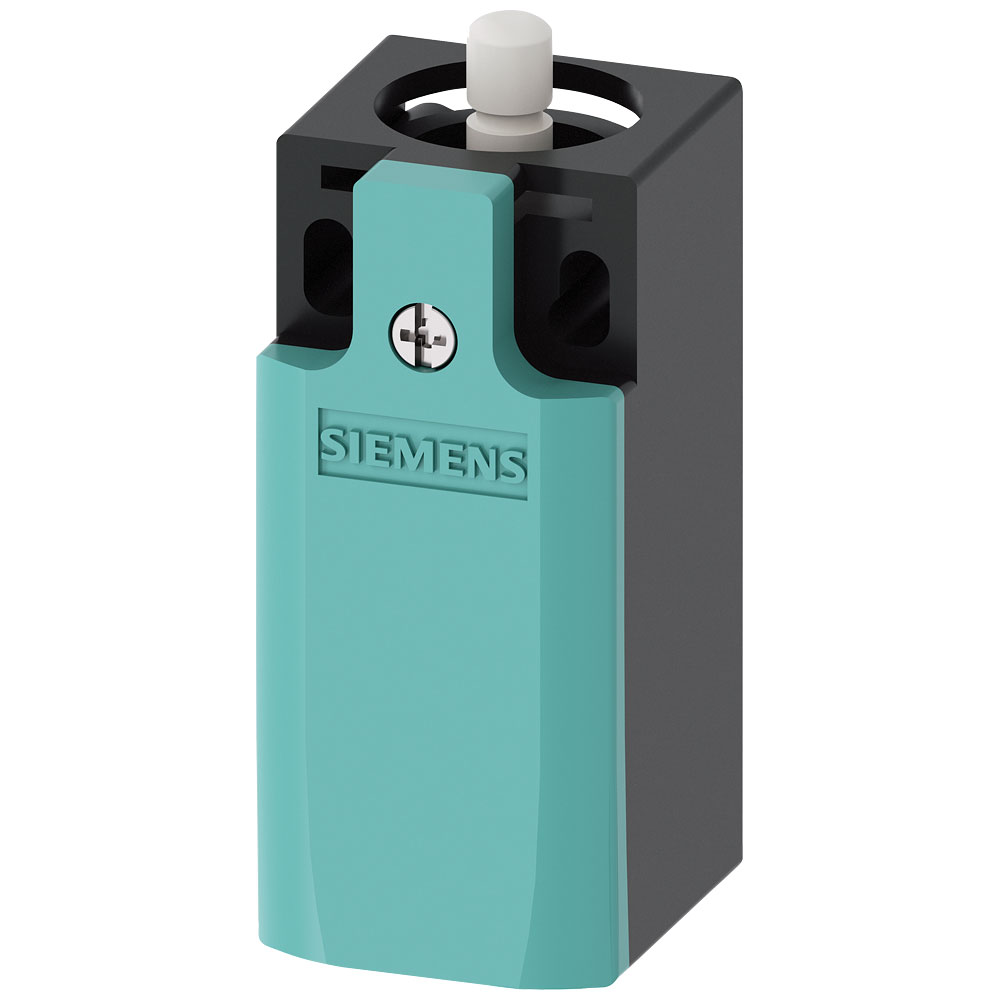

Siemens 3SE5212-0CC05 Sirius Position Switch Metal 31mm 1x 1NO/1NC Snap-action

The Sirius 3SE5 mechanical position switches are compact and straight forward to connect. The range consists of a set of switches and actuators which can respond to many design challenges. Select the switch, add an actuator and you are ready to go.

• Standard position switch
• Contacts 1 x NC, 1 x NO
• Cable entry type 1 x (M20 x 1.5)
• Snap-action contacts
• Connection by screw-type terminals
• Mechanism Teflon plunger
• Enclosure material metal
• Switch head enclosure material plastic
• Mechanical service life 15,000,000 cycles typical
• Minimum actuating force 20N
• Protection class IP66/IP67
• Width 31mm
• Depth 45mm
• Colour Similar to RAL 9010

Type	Mechanical position switch
Contact Configuration	NO / NC
Action	Snap / action
Alignment of the control element	N/A
Ambient temperature during operating	-25 - 85°C
Coating housing	N/A
Construction type housing	N/A
Degree of protection (IP)	IP66/IP67
Degree of protection (NEMA)	12
Diameter sensor	N/A
Explosion safety category for dust	N/A
Explosion safety category for gas	N/A
Forced opening	true
Height of sensor	33mm
Housing Material	N/A
Length of sensor	75.7mm
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Output electronic	N/A
Rated operation current Ie at AC-15, 125 V	N/A
Rated operation current Ie at AC-15, 230 V	N/A
Rated operation current Ie at AC-15, 24 V	6A
Rated operation current Ie at DC-13, 125 V	0.55A
Rated operation current Ie at DC-13, 230 V	N/A
Rated operation current Ie at DC-13, 24 V	3A
Suitable for safety functions	true
Switching function	N/A
Switching function latching	false
Type of control element	N/A
Type of electric connection	N/A
Type of interface	N/A
Type of interface for safety communication	N/A
Width sensor	31mm
With status indication	false
