Siemens 3SE51120CD02 Switch 6 A steel wheel IP66/67 1 NO/2 NC Contacts

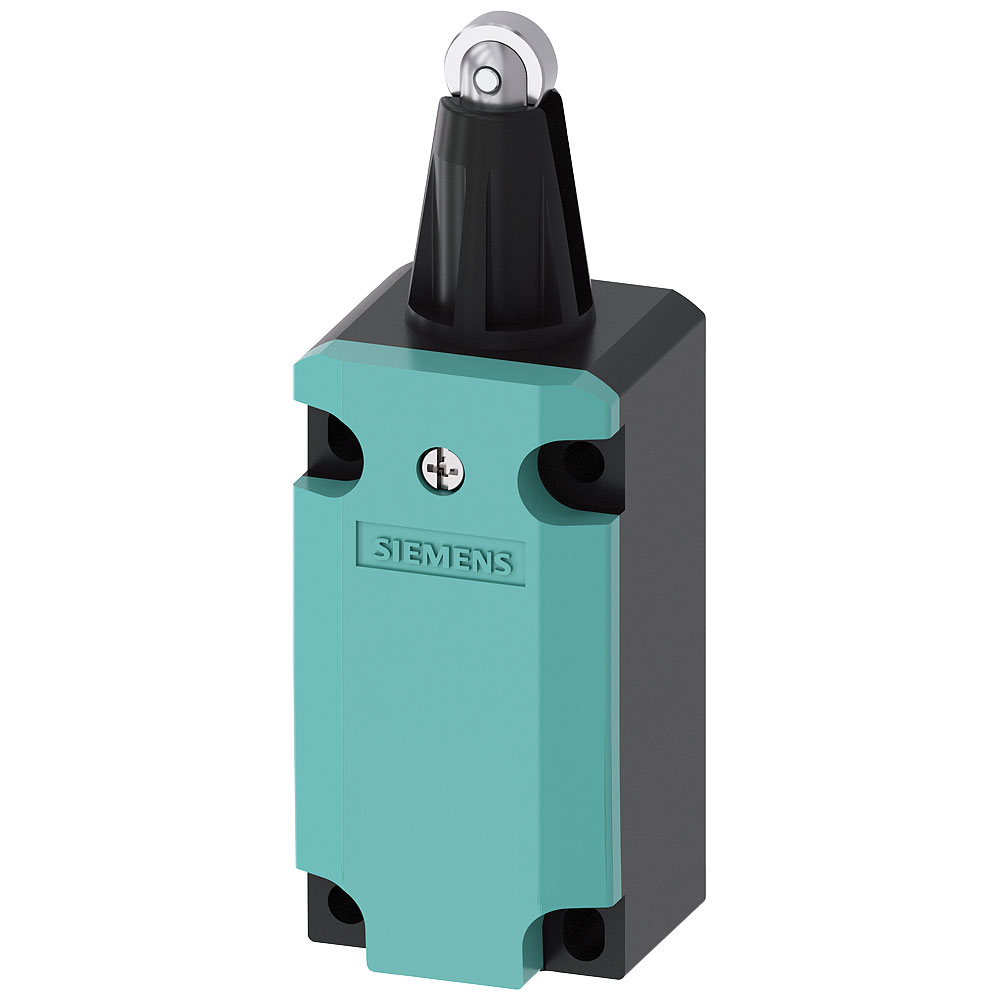

Image Representative of Range

Siemens 3SE51120CD02 Switch 6 A steel wheel IP66/67 1 NO/2 NC Contacts

Siemens
Order Code:

06-8781

Brand: Siemens MPN: 3SE51120CD02 EAN-13: 4011209692152
Qty Unit Price (Ex VAT)
1+ £60.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The Siemens 3SE5112-0CD02 is a door-operated switch capable of handling 6 A, designed with robust steel wheel and tappet mechanism. It features high ingress protection ratings of IP66 and IP67, making it suitable for use in harsh environments. This switch is typically used in industrial settings for door monitoring and safety applications.
Type Door-operated switch
Actuating Force 20N
Alignment of the control element Roller cam straight
Coating housing Lacquered
Connection Screws
Construction type housing Cuboid
Contact Material Silver alloy
Degree of protection (IP) IP66/IP67
Degree of protection (NEMA) 12
Depth 37.3mm
Dim (L x W) 116.3 mm x 40 mm
Durability 15000000
Electrical lifespan 100000
Explosion safety category for dust None
Explosion safety category for gas None
Forced opening TRUE
Height of sensor 37.3mm
Housing Material Metal
Length 116.3mm
Length of sensor 116.3mm
Material Metal
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute 3SE5112-0CD02
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of safety auxiliary contacts 1
Output electronic FALSE
Rated operation current Ie at AC-15, 125 V 6A
Rated operation current Ie at AC-15, 24 V 6A
Rated operation current Ie at DC-13, 125 V 0.55A
Rated operation current Ie at DC-13, 24 V 3A
Suitable for safety functions TRUE
Switching current (max.) 6A
Switching function Quick-break switch
Switching function latching FALSE
Thread Size M20 x 1.5
Type of control element Roller cam
Type of interface None
Type of interface for safety communication None
Width 40mm
Width sensor 40mm
With status indication FALSE
