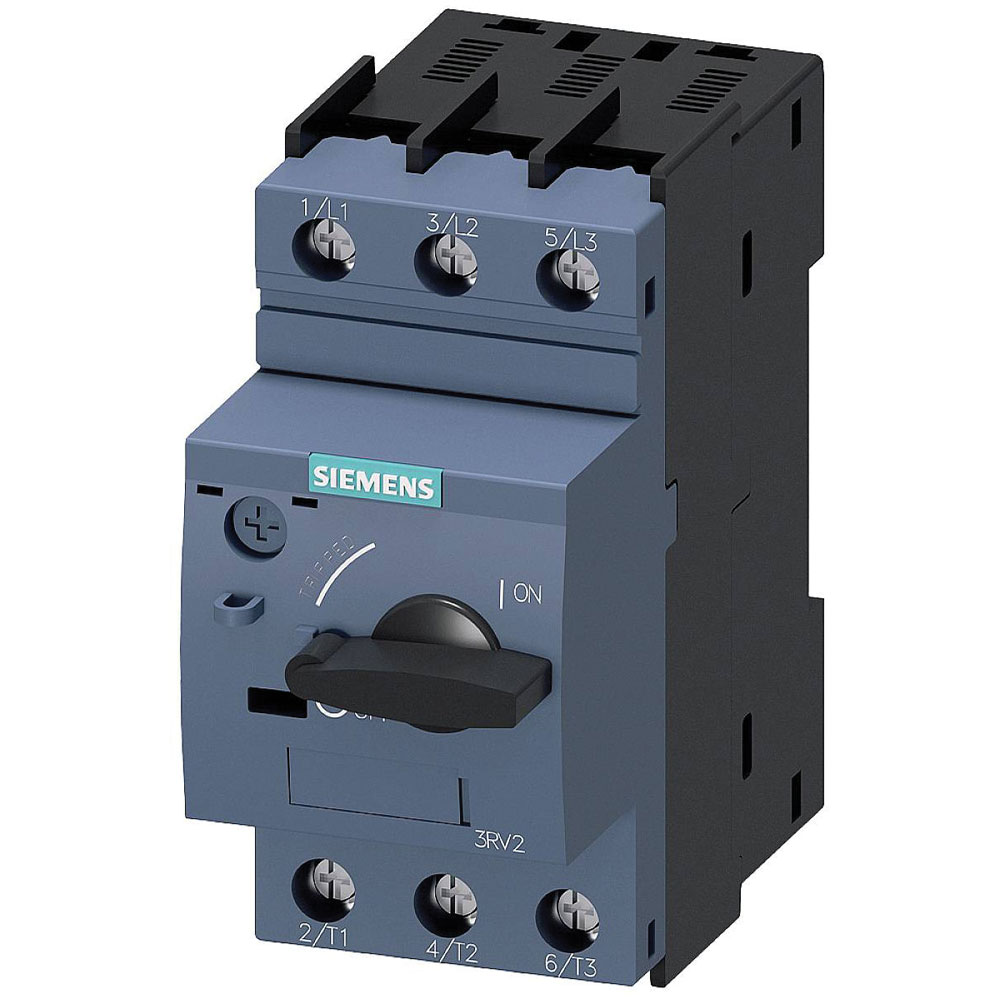

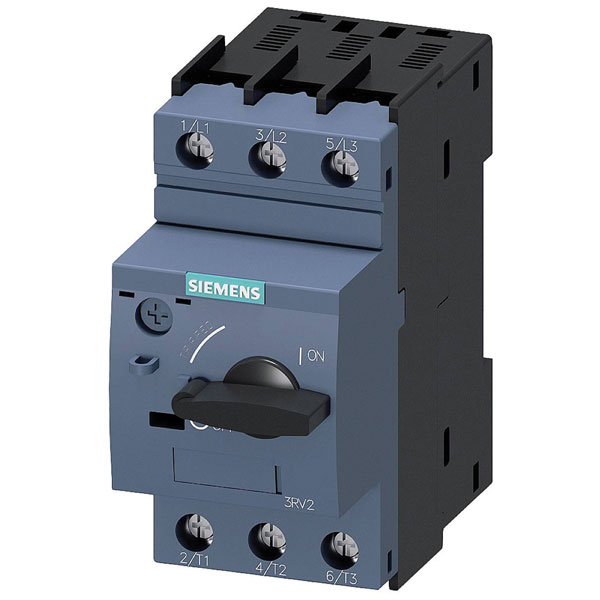

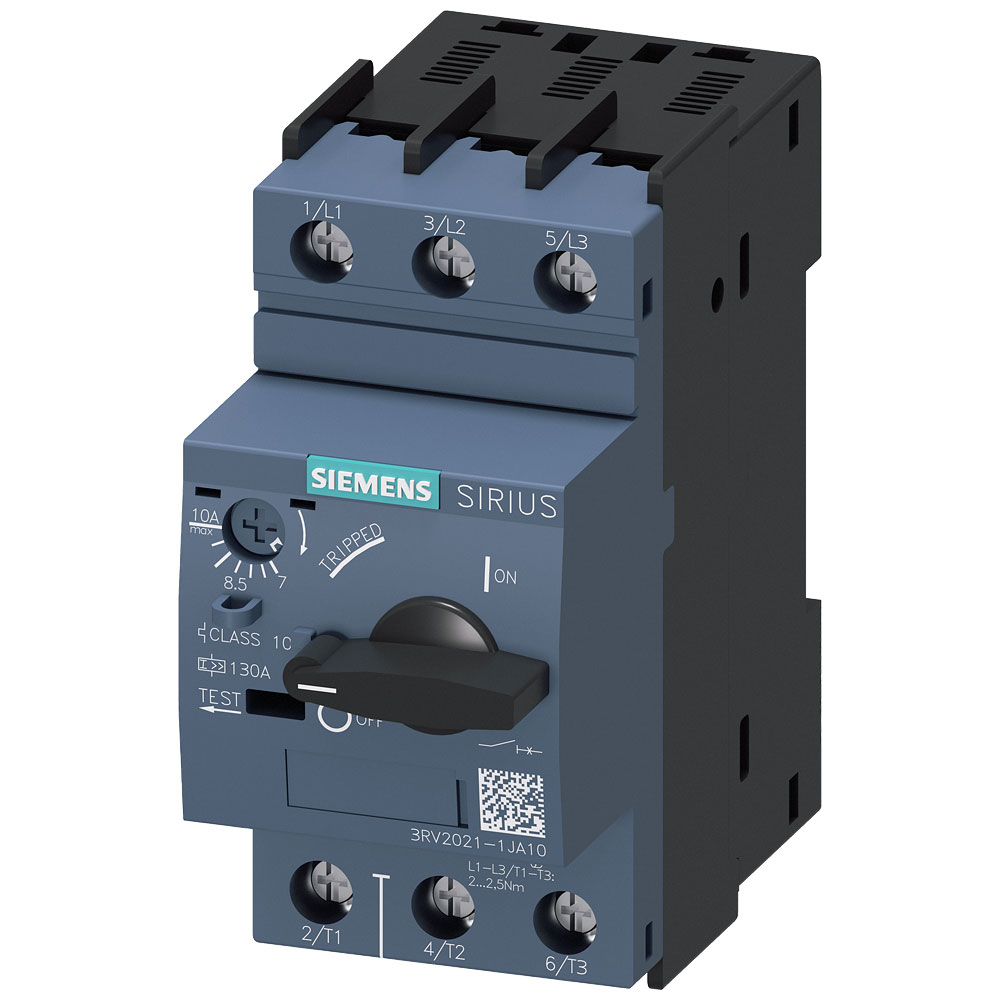

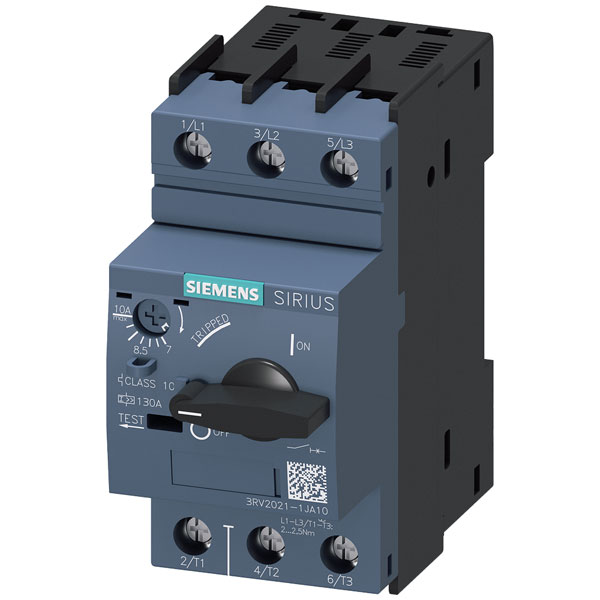

The Siemens 3RV2021-1JA10 circuit breaker features an adjustable amperage range of 7 to 10 A and supports a maximum switching voltage of 690 V AC. Measuring 45 x 97 x 97 mm, this electrical contactor is designed for precise circuit protection and control. It is typically used in industrial applications to safeguard machinery and equipment from overloads and short circuits.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
7 - 10 A |
| Amperage adjustment range (max.) |
10A |
| Amperage adjustment range (min.) |
7A |
| Connection |
Screws |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 97 x 97 mm |
| Height |
97mm |
| IP rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2021-1JA10 |
| Misc Attribute 2 |
S0 |
| No. of pins |
3-pin |
| Number of Poles |
3 |
| Phase failure sensitive |
TRUE |
| Rated operation power at AC-3, 230 V |
2.2kW |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated permanent current Iu |
10A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| RoHS-compliant |
Yes |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
