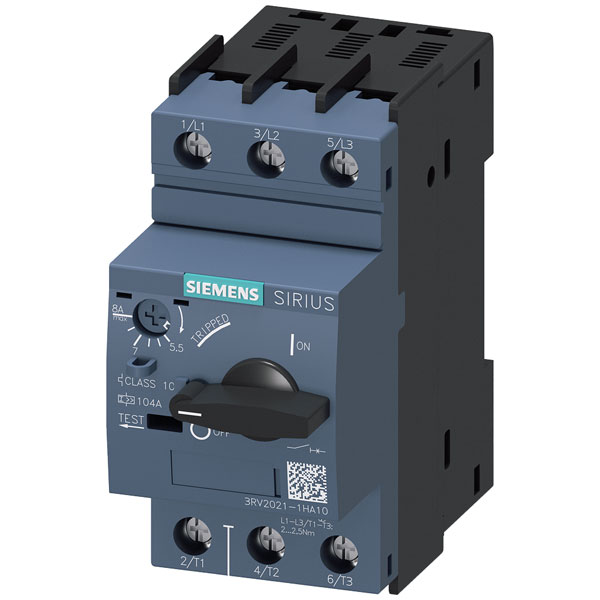

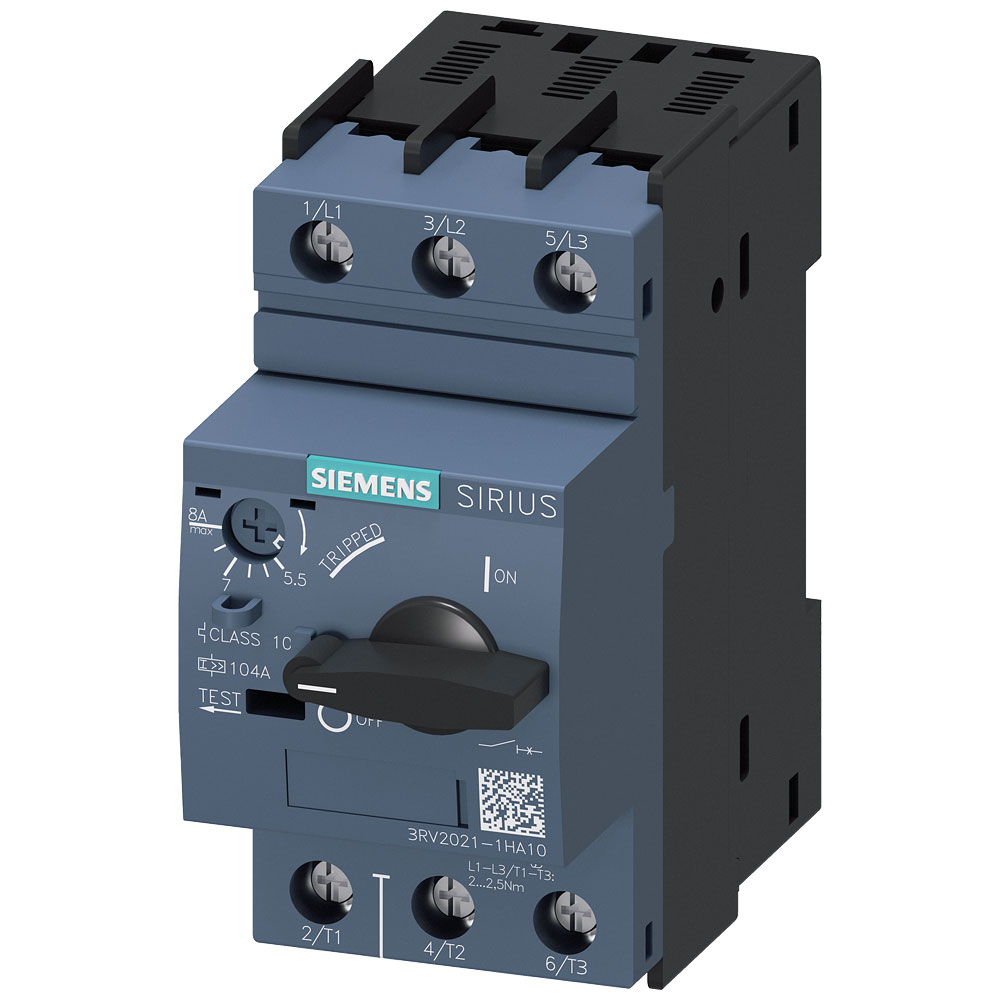

Siemens 3RV2021-1HA10 Circuit Breaker 5.5-8A 690V AC 45x97x97mm

Image Representative of Range

Siemens 3RV2021-1HA10 Circuit Breaker 5.5-8A 690V AC 45x97x97mm

Siemens
Order Code:

06-8683

Brand: Siemens MPN: 3RV20211HA10 EAN-13: 4011209902893
Qty Unit Price (Ex VAT)
1+ £72.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 available to back orderBack-order availability date - 09/01/2026

The Siemens 3RV2021-1HA10 circuit breaker is designed to operate within an amperage adjustment range of 5.5 to 8 A and supports a maximum switching voltage of 690 V AC. Measuring 45 x 97 x 97 mm, this compact electrical contactor is suitable for protecting electrical circuits in industrial applications. Typical uses include safeguarding motors and preventing overloads or short circuits in various electrical installations.
Type Circuit breaker
Adjustment range (amperage) 5.5 - 8 A
Amperage adjustment range (max.) 8A
Amperage adjustment range (min.) 5.5A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2021-1HA10
Misc Attribute 2 S0
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 1.5kW
Rated operation power at AC-3, 400 V 3kW
Rated permanent current Iu 8A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
