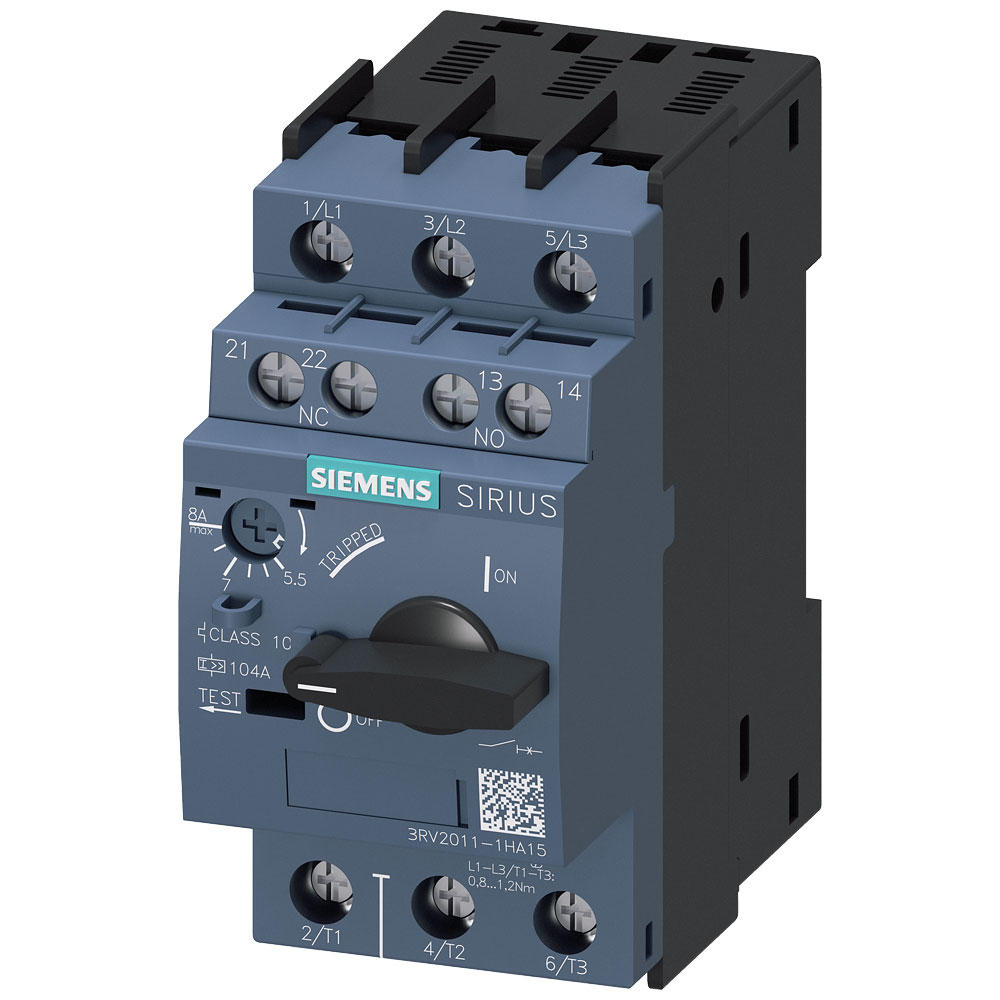

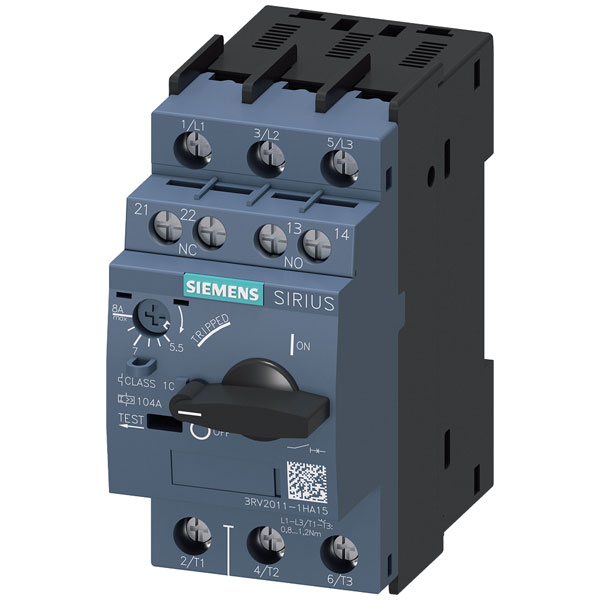

Siemens 3RV20111HA15 Circuit Breaker 5.5-8A 690V AC 45x97x97mm

Image Representative of Range

Siemens 3RV20111HA15 Circuit Breaker 5.5-8A 690V AC 45x97x97mm

Siemens
Order Code:

06-8664

Brand: Siemens MPN: 3RV20111HA15 EAN-13: 4011209841024
Qty Unit Price (Ex VAT)
1+ £85.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Siemens 3RV2011-1HA15 circuit breaker is designed to handle currents ranging from 5.5 to 8 amperes, with a maximum switching voltage of 690 volts AC. With dimensions of 45 x 97 x 97 mm, this electrical contactor is typically used for motor protection and switching applications. Its robust design and reliable performance make it suitable for industrial and commercial use.
Type Circuit breaker
Adjustment range (amperage) 5.5 - 8 A
Amperage adjustment range (max.) 8A
Amperage adjustment range (min.) 5.5A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1HA15
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 1.5kW
Rated operation power at AC-3, 400 V 3kW
Rated permanent current Iu 8A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
