Siemens 3RV2011-1BA20 Circuit Breaker 1.4-2A 690V 45x106x97mm S00

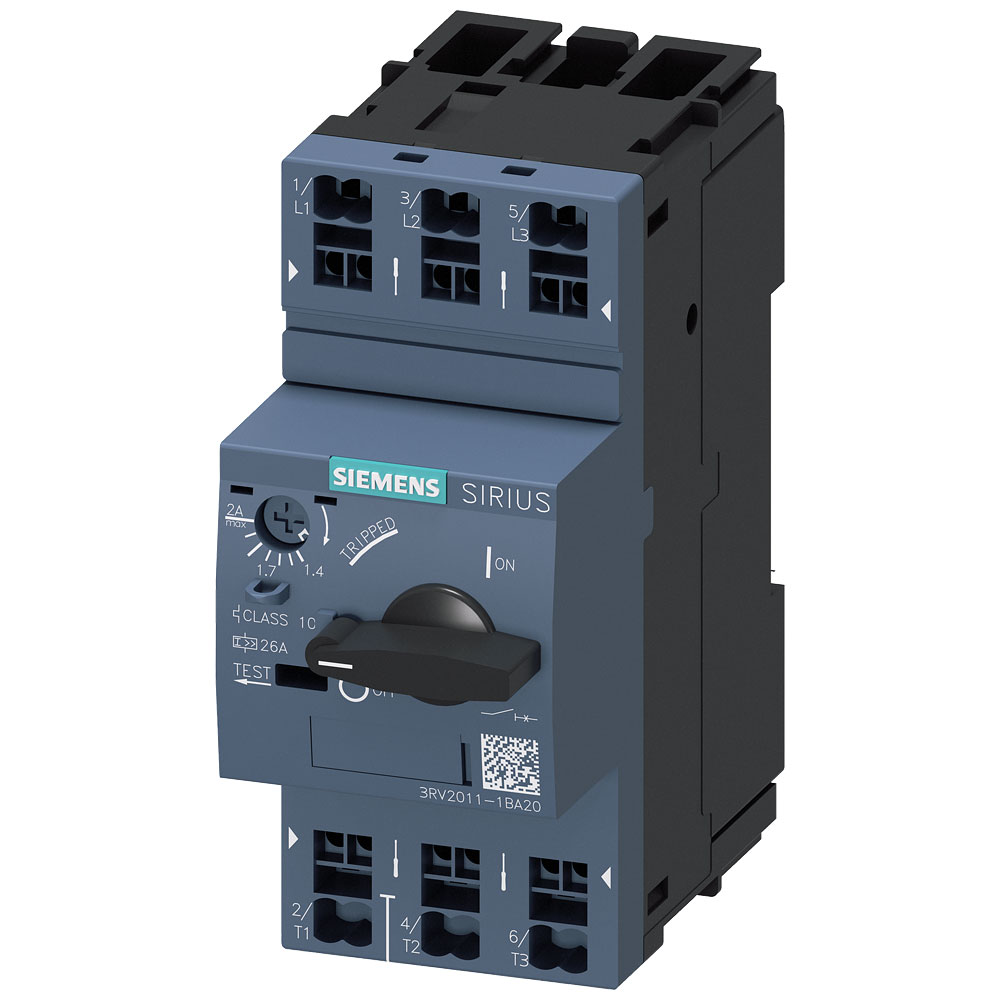

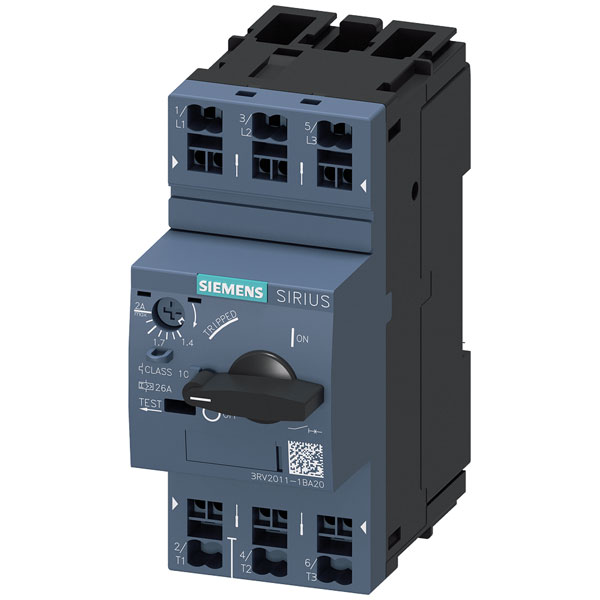

Image Representative of Range

Siemens 3RV2011-1BA20 Circuit Breaker 1.4-2A 690V 45x106x97mm S00

Siemens
Order Code:

06-8627

Brand: Siemens MPN: 3RV20111BA20 EAN-13: 4011209724549
Qty Unit Price (Ex VAT)
1+ £69.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

Siemens manufactures the 3RV2011-1BA20 circuit breaker with an adjustment range of 1.4 - 2 A and a maximum switching voltage of 690 V AC. This compact and reliable electrical contactor, measuring 45 x 106 x 97 mm, is suitable for safely protecting small motors and other electrical circuits. It is typically used in industrial and commercial environments for overload and short-circuit protection.
Type Circuit breaker
Adjustment range (amperage) 1.4 - 2 A
Amperage adjustment range (max.) 2A
Amperage adjustment range (min.) 1.4A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 106 x 97 mm
Height 106mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1BA20
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.4kW
Rated operation power at AC-3, 400 V 0.75kW
Rated permanent current Iu 2A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
