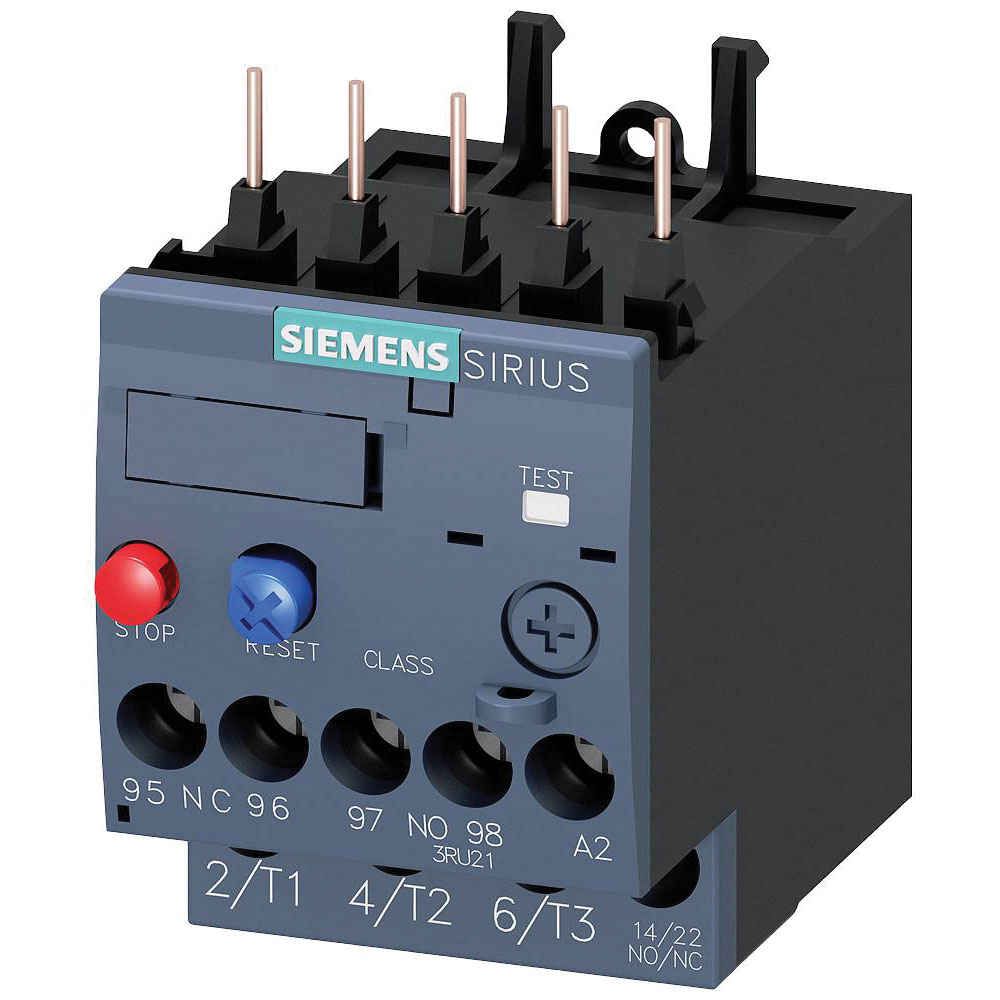

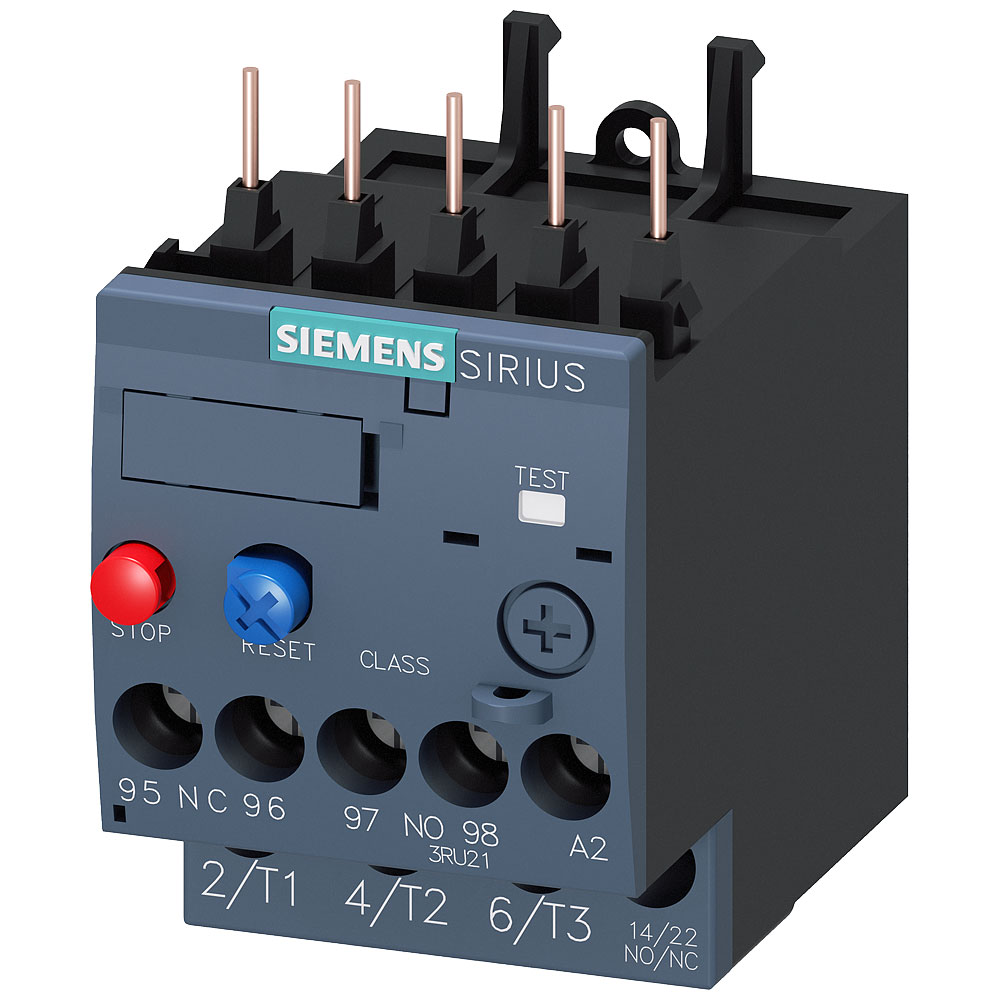

Siemens 3RU2116-1DB0 SIRIUS overload relay 2.2-3.2 A thermal size S00

Siemens manufactures the 3RU2116-1DB0 O/L relay designed for 690 V AC systems. This monitoring relay offers reliable protection by preventing overload in electrical circuits. It is typically used in industrial settings for safeguarding motors and ensuring operational safety.

Type	Overload relay
Adjustable current range	2.2 - 3.2A
Amperage adjustment range (max.)	3.2A
Amperage adjustment range (min.)	2.2A
Connection	Screws
Depth	70mm
Dim	(W x H x D) 45 x 76 x 70 mm
Height	76mm
IP Rating	IP20
Max. operating voltage	690V AC
Max. rated operation voltage Ue	690V
Maximum Temperature	+70°C
Min. temperature	-40°C
Misc Attribute 1	3RU2116-1DB0
Misc Attribute 2	S00
Mounting method	Direct attachment
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Release class	CLASS 10
Reset function automatic	true
Reset function input	false
Reset function push-button	true
Type of electrical connection of main circuit	Screw connection
Width	45mm
