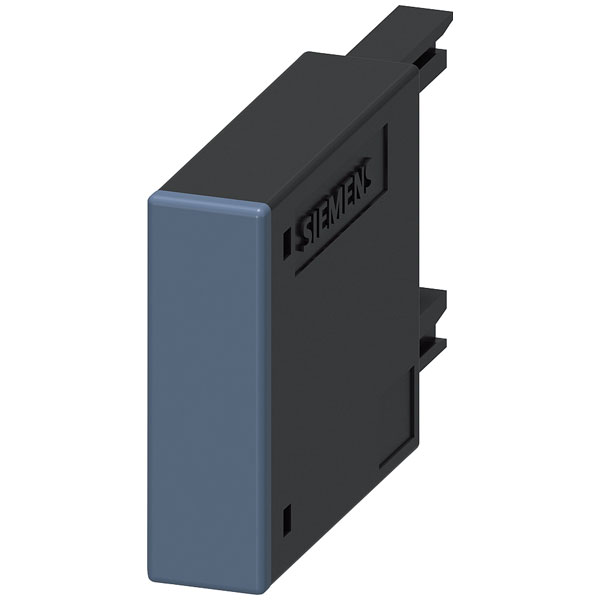

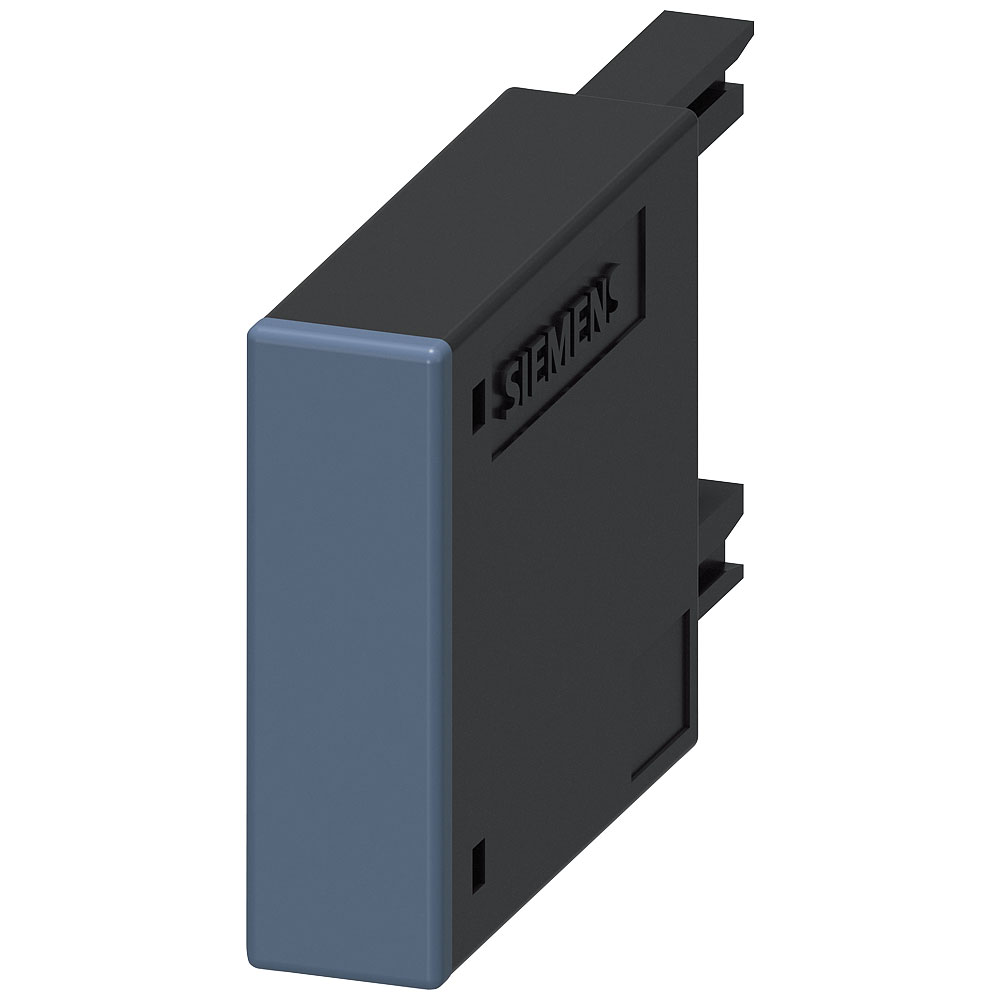

Siemens 3RT29161BD00 SIRIUS Surge protection varistor AC/DC 127-250V

The Siemens 3RT2916-1BD00 is a surge protection device equipped with a varistor, designed as a relay accessory. It provides effective protection against voltage spikes, enhancing the reliability of relay systems. Typical applications include use in industrial automation and control systems to safeguard components from electrical surges.

Type	Surge protection
Dim	(L x W x H) 28 x 9 x 46 mm
Function	Varistor (voltage-sensitive resistor)
Height	46mm
Length	28mm
Max. temperature	+60°C
Min. temperature	-25°C
Misc Attribute	3RT2916-1BD00
Mounting Type	Push-fit
Operating Voltage	127, 150 - 240, 250 V AC, V DC
Operating voltage AC 50 Hz	127 - 240V
Operating voltage AC 60 Hz	127 - 240V
Operating voltage DC	150 - 250V
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC/DC
Weight	0.01
Width	9mm
With LED indication	N/A
