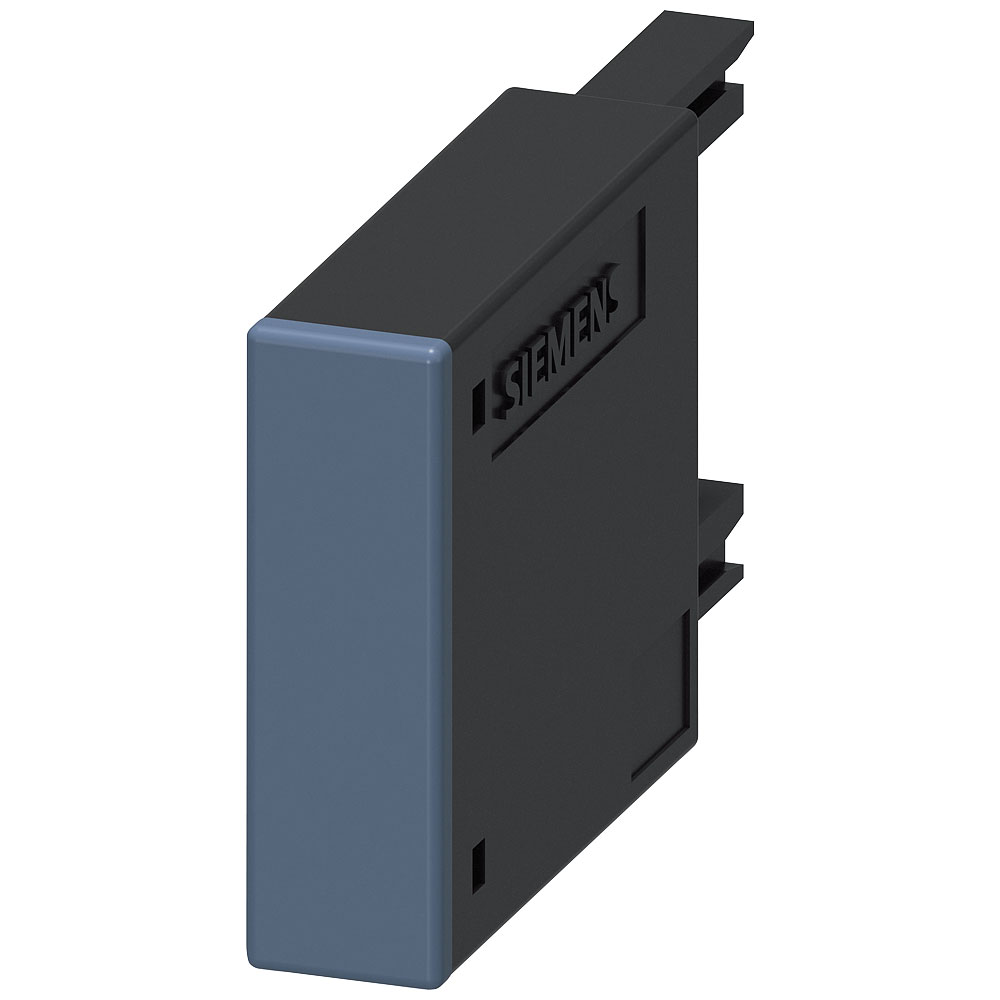

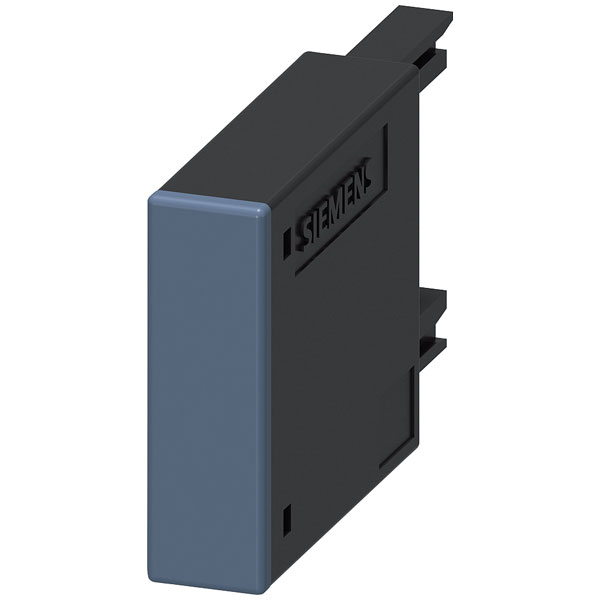

Siemens 3RT2916-1BB00 SIRIUS Surge Protection 48V AC for S2 Contactors

The Siemens 3RT2916-1BB00 is a surge protection device designed for use with electrical contactors. It operates at 48 V AC to safeguard equipment from voltage spikes and surges. This product is typically used in industrial settings to enhance the reliability and longevity of electrical systems.

Type	Surge protection
Coil Voltage	48V AC
Control voltage (max.)	24V AC
Control voltage range	24 V AC (max)
Depth	9mm
Dimensions	(W x H x D) 28 x 46 x 9 mm
Function	Varistor (voltage-sensitive resistor)
Height	46mm
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RT2916-1BB00
Misc Attribute 2	S00
Mounting Style	Push-fit
Operating voltage AC 50 Hz	24 - 48V
Operating voltage AC 60 Hz	24 - 48V
Operating voltage DC	24 - 70V
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC/DC
Width	28mm
Wireless charging	No
With LED indication	N/A
