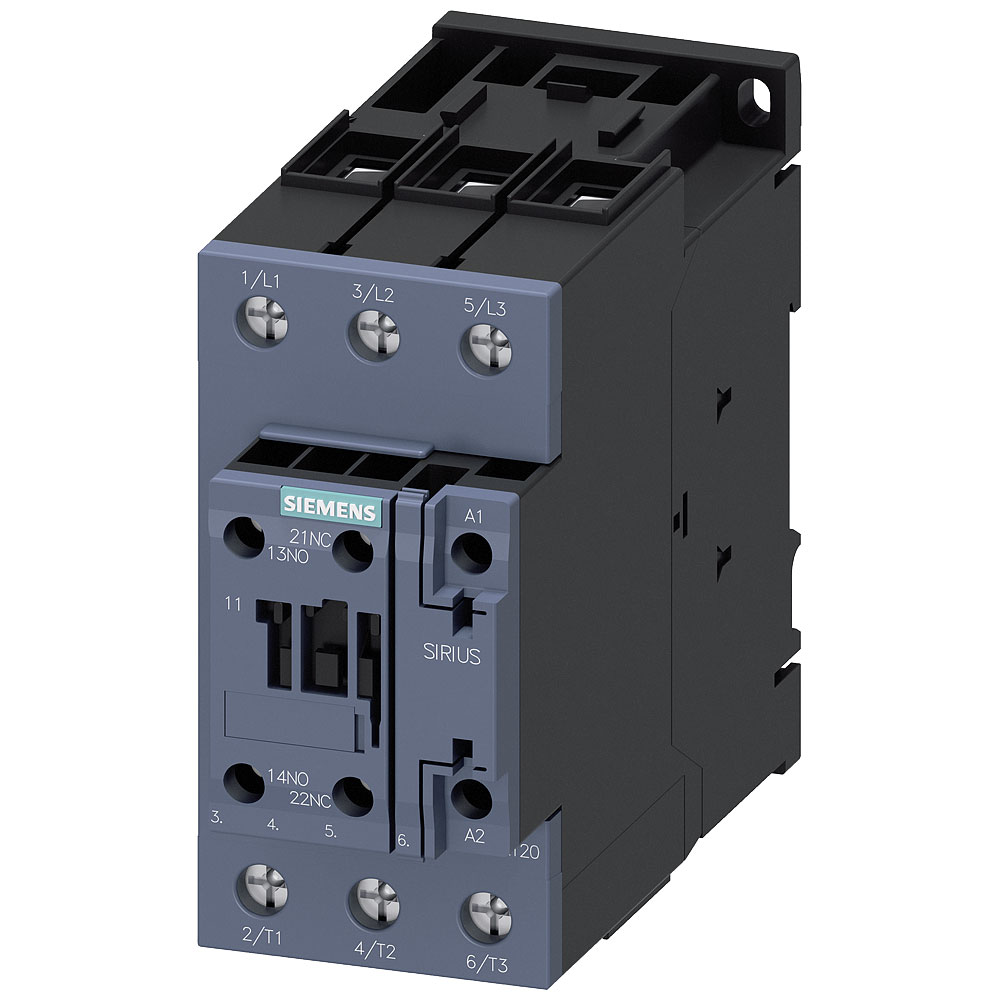

The Siemens 3RT2037-1AP00 contactor is an electrical device rated at 30 kW and 65 A, suitable for controlling power circuits. It includes an auxiliary contact and operates at 230 V AC, making it ideal for managing motors and other industrial equipment. Typically used in automation systems, this component ensures reliable operation in various industrial applications.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Connection |
Screw terminal |
| Contact Type |
3 makers |
| Current load |
65A |
| Depth |
130mm |
| Dimensions |
(W x H x D) 55 x 114 x 130 mm |
| Durability |
1.0E7 |
| Height |
114mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2037-1AP00 |
| Misc Attribute 2 |
S2 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
30kW |
| Power Rating |
30 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
80A |
| Rated operation current Ie at AC-3, 400 V |
65A |
| Rated operation current Ie at AC-4, 400 V |
55A |
| Rated operation power at AC-3, 400 V |
30kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
36.7749375 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Weight |
0.95 |
| Width |
55mm |
