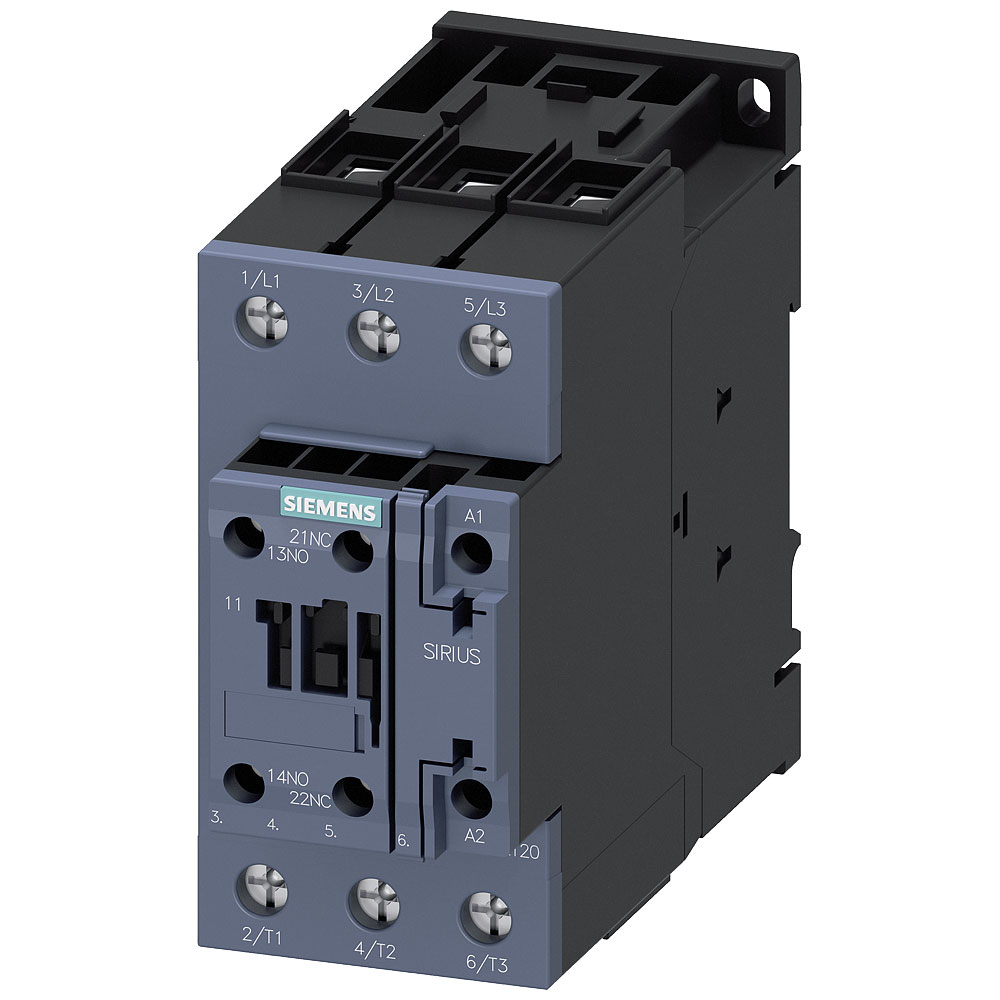

Siemens 3RT2036-1AP00 SIRIUS Contactor 22kW 230V AC 50A 3-pole S2

The Siemens 3RT2036-1AP00 Contactor is designed to manage electrical loads up to 22 kW and 50 A, operating on a 230 V AC system, with an additional auxiliary contact for expanded functionality. Manufactured by Siemens, this electrical contactor is essential for safely switching and controlling large motors and other heavy-duty electrical equipment. It is commonly used in industrial and commercial applications, ensuring reliable performance and protection in various systems.

Type	Contactor
Connection	Screw terminal
Contact Type	3 makers
Current load	50A
Depth	130mm
Dim	(W x H x D) 55 x 114 x 130 mm
Durability	1.0E7
Height	114mm
IP Rating	IP20
Max. temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RT2036-1AP00
Misc Attribute 2	S2
Mounting Type	DIN rail
Nominal Voltage	230V AC
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally open contacts as main contact	3
Number of Pins	3-pin
Power	22kW
Rated operation current Ie at AC-1, 400 V	70A
Rated operation current Ie at AC-3, 400 V	51A
Rated operation current Ie at AC-4, 400 V	41A
Rated operation power at AC-3, 400 V	22kW
Rated operation power NEMA	29.419949999
Suitable for distribution board	TRUE
Switching voltage (max.)	400V AC
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	55mm
