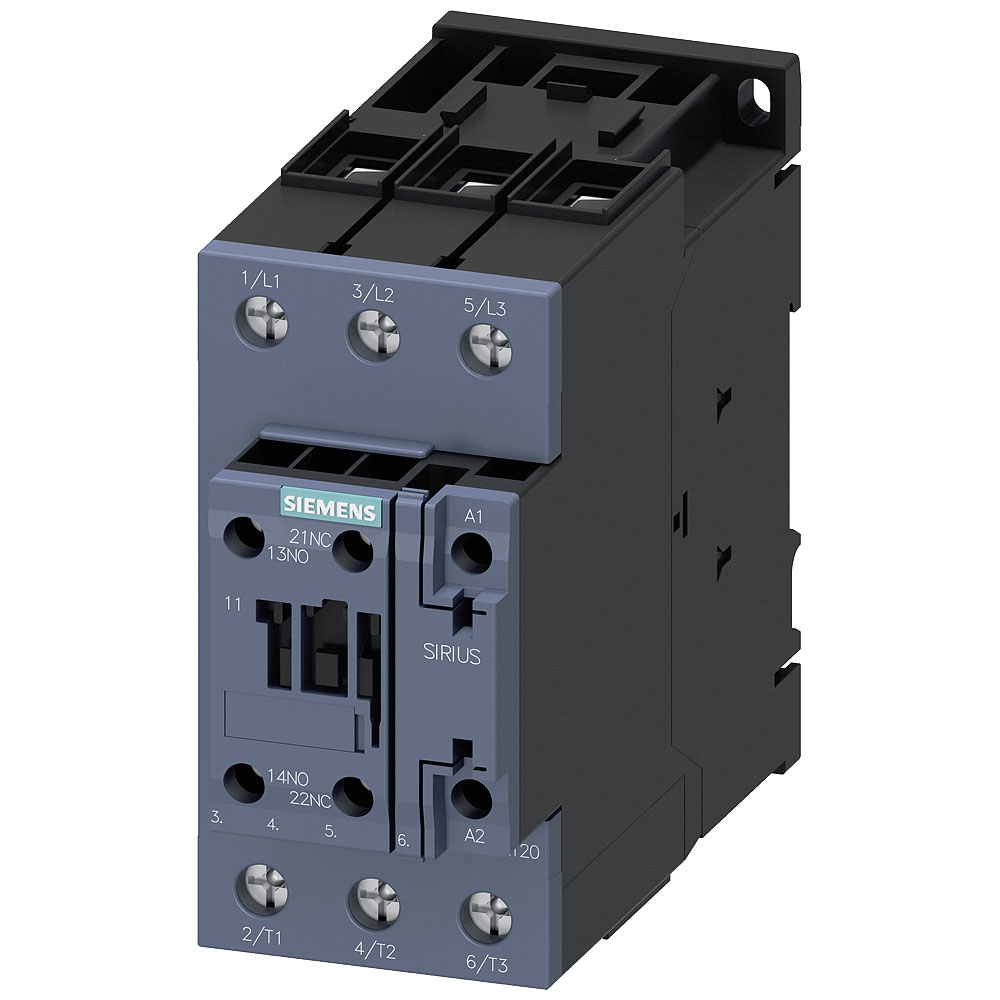

The Siemens 3RT2035-1AP00 is an electrical contactor rated for up to 18.5 kW at 230 V AC and 40 A, complete with an auxiliary contact. This durable contactor is ideal for controlling electric motors and managing high-power circuits in industrial settings. Siemens is renowned for its reliable electrical components that ensure efficient operation in demanding applications.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Connection |
Screw terminal |
| Contact Current Rating |
40A |
| Contact Type |
3 makers |
| Current load |
40A |
| Depth |
130mm |
| Dimensions |
(W x H x D) 55 x 114 x 130 mm |
| Durability |
1.0E7 |
| Height |
114mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2035-1AP00 |
| Misc Attribute 2 |
S2 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
18.5kW |
| Power Rating |
18.5 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
60A |
| Rated operation current Ie at AC-3, 400 V |
41A |
| Rated operation current Ie at AC-4, 400 V |
35A |
| Rated operation power at AC-3, 400 V |
18.5kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
22.064962499 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
55mm |
