Siemens 3RT2026-1BB44 Contactor 32A 3-Pole 15kW 1NO+1NC AC-3 690V

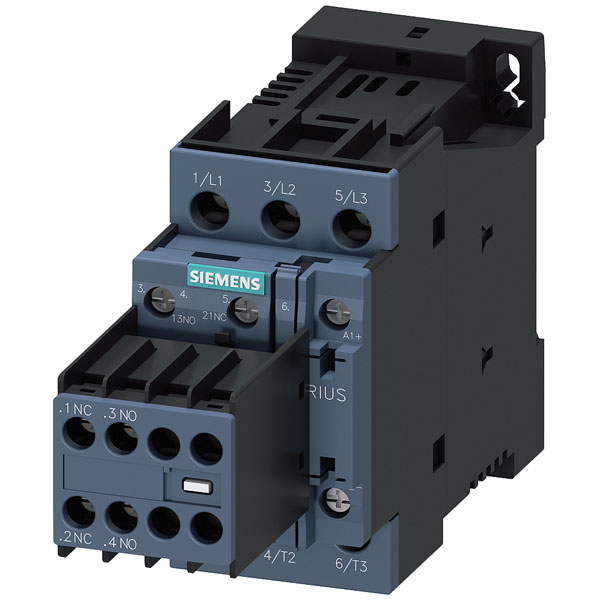

Image Representative of Range

Siemens 3RT2026-1BB44 Contactor 32A 3-Pole 15kW 1NO+1NC AC-3 690V

Siemens
Order Code:

06-8465

Brand: Siemens MPN: 3RT20261BB44 EAN-13: 4011209837492
Qty Unit Price (Ex VAT)
1+ £135.37
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

The Siemens 3RT2026-1BB44 contactor is designed for controlling electric circuits with a voltage of up to 690 V AC. This robust electrical device is typically used in motor control and power distribution applications. It is recognised for its reliability in industrial and commercial settings.
Type Contactor
Coil Voltage 690V AC
Terminals 3-pin
Connection Screws
Contact Type 3 makers
Depth 151mm
Dimensions (W x H x D) 45 x 85 x 151 mm
Durability 1000 0000
Height 85mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2026-1BB44
Misc Attribute 2 S0
Number of auxiliary contacts as normally closed contact 2
Number of auxiliary contacts as normally open contact 2
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 25A
Rated operation current Ie at AC-4, 400 V 15.5A
Rated operation power at AC-3, 400 V 11kW
Rated operation power NEMA 11.032481249
Suitable for distribution board TRUE
Type of electrical connection of main circuit Screw connection
Voltage type for actuating DC
Width 45mm
