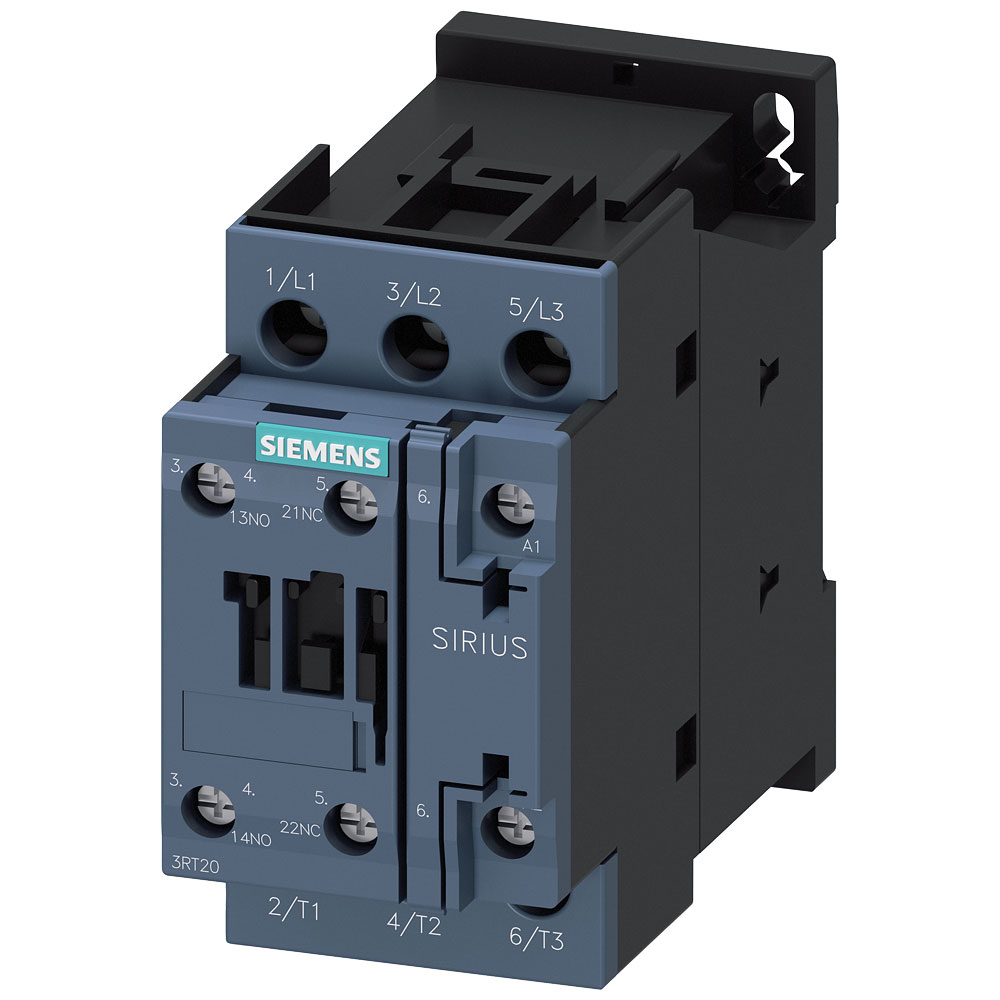

The Siemens 3RT2026-1AP00 is an electrical contactor designed for applications requiring the control of motors up to 11 kW and handling 25 A. It features a 230 V AC coil and an integrated auxiliary contact, ensuring reliable operation in various industrial environments. This contactor is suitable for use in motor control circuits, automation systems, and other switching applications in electrical engineering.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Connection |
Screw terminal |
| Contact Current Rating |
25A |
| Contact Type |
3 makers |
| Current load |
25A |
| Depth |
97mm |
| Dimensions |
(W x H x D) 45 x 85 x 97 mm |
| Durability |
1.0E7 |
| Height |
85mm |
| IP Rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2026-1AP00 |
| Misc Attribute 2 |
S0 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
11kW |
| Power Rating |
11 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
40A |
| Rated operation current Ie at AC-3, 400 V |
25A |
| Rated operation current Ie at AC-4, 400 V |
15.5A |
| Rated operation power at AC-3, 400 V |
11kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
11.032481249 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
45mm |
