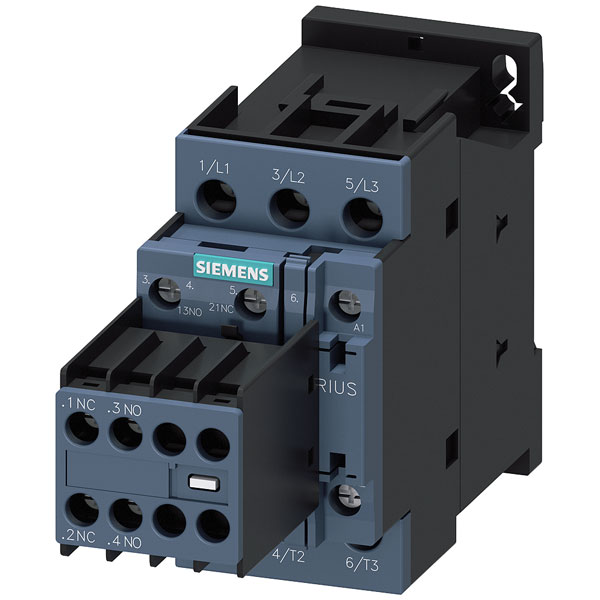

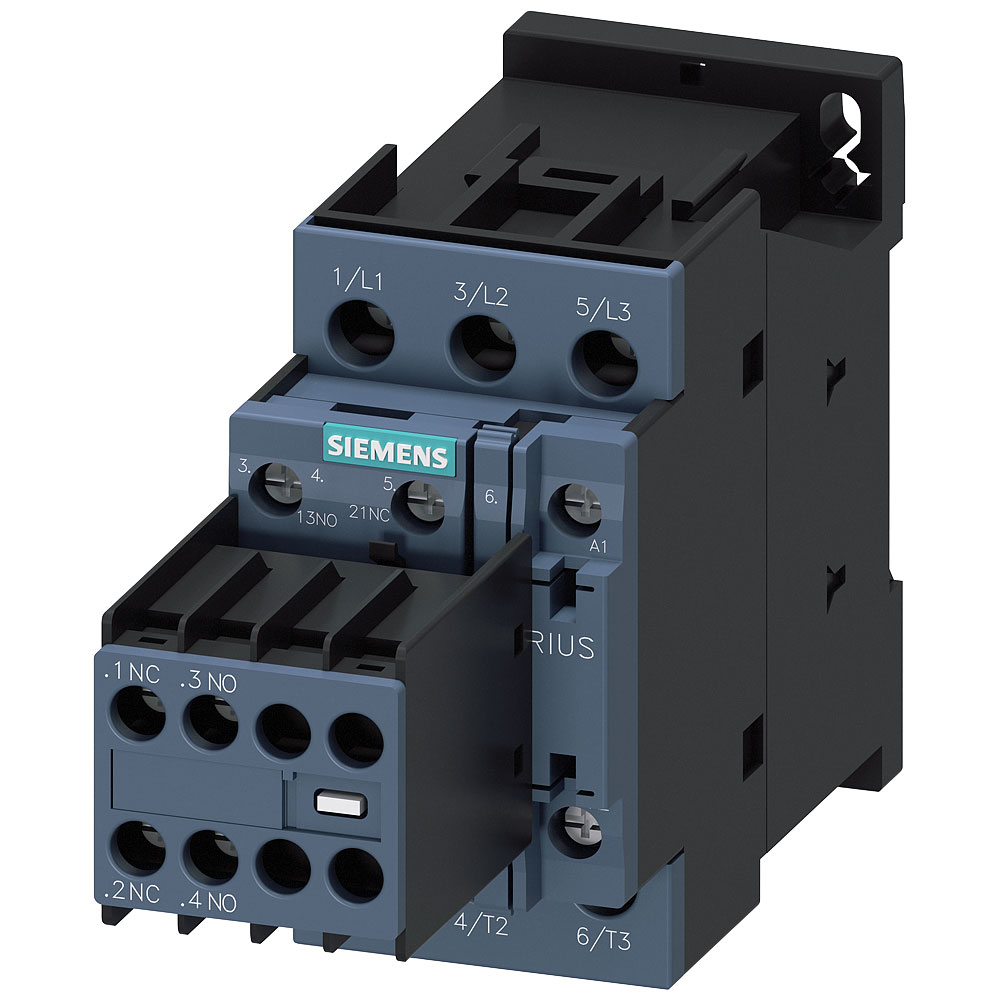

Siemens 3RT20251AP04 Contactor 3-pole 11kW 400V 24V DC Screw Terminal

Image Representative of Range

Siemens 3RT20251AP04 Contactor 3-pole 11kW 400V 24V DC Screw Terminal

Siemens
Order Code:

06-8453

Brand: Siemens MPN: 3RT20251AP04 EAN-13: 4011209837256
Qty Unit Price (Ex VAT)
1+ £69.99
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

Siemens manufactures the 3RT2025-1AP04 contactor, designed to handle voltages up to 690 V AC. This electrical contactor features two poles and is suitable for industrial switching applications. It is commonly used in motor control and automation systems.
Type Contactor
Connection Screws
Contact Type 2 makers
Depth 141mm
Dim (W x H x D) 45 x 85 x 141 mm
Durability 1000 0000
Height 85mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2025-1AP04
Misc Attribute 2 S0
Nominal Voltage 690V AC
Number of auxiliary contacts as normally closed contact 2
Number of auxiliary contacts as normally open contact 2
Number of normally open contacts as main contact 3
Number of Pins 3-pin
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 17A
Rated operation current Ie at AC-4, 400 V 15.5A
Rated operation power at AC-3, 400 V 7.5kW
Rated operation power NEMA 7.354987499
Suitable for distribution board TRUE
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
