Siemens 3RT20251AL20 Contactor 3 makers 690V 3-pole size S00 7.5 kW 400V

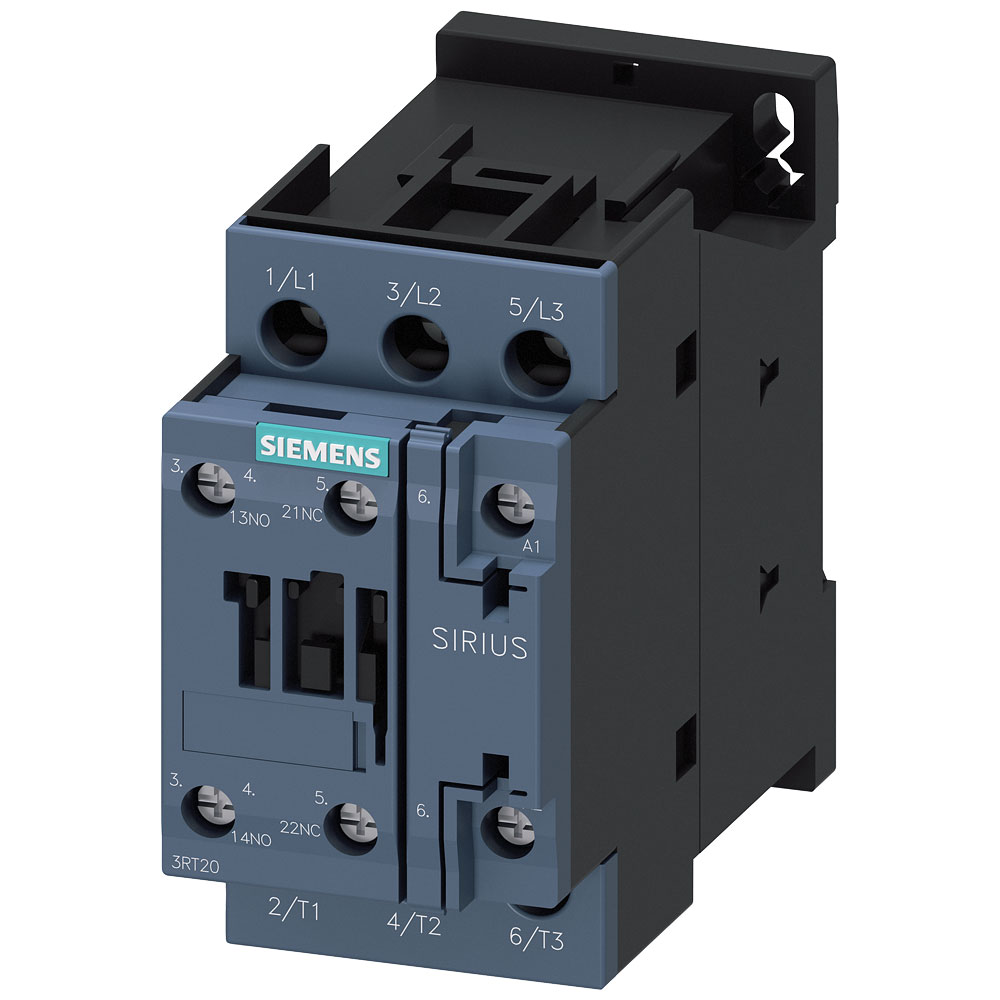

Image Representative of Range

Siemens 3RT20251AL20 Contactor 3 makers 690V 3-pole size S00 7.5 kW 400V

Siemens
Order Code:

06-8449

Brand: Siemens MPN: 3RT20251AL20 EAN-13: 4011209832442
Qty Unit Price (Ex VAT)
1+ £58.63
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Siemens 3RT2025-1AL20 contactor is an electrical device rated for 690 V AC, ideal for switching and controlling electric motors. This contactor is typically used in industrial applications to manage three-phase loads effectively. Siemens designs these contactors to ensure reliable performance and long service life in various automation and control systems.
Type Contactor
Connection Screws
Contact Type 3 makers
Depth 97mm
Dim (W x H x D) 45 x 85 x 97 mm
Durability 1000 0000
Height 85mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2025-1AL20
Misc Attribute 2 S0
Nominal Voltage 690V AC
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Number of Pins 3-pin
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 17A
Rated operation current Ie at AC-4, 400 V 15.5A
Rated operation power at AC-3, 400 V 7.5kW
Rated operation power NEMA 7.354987499
Suitable for distribution board TRUE
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
