Siemens 3RT2025-1BB44 Contactor 3-pole 17A 7.5kW 400V 1NO 1NC 24V AC

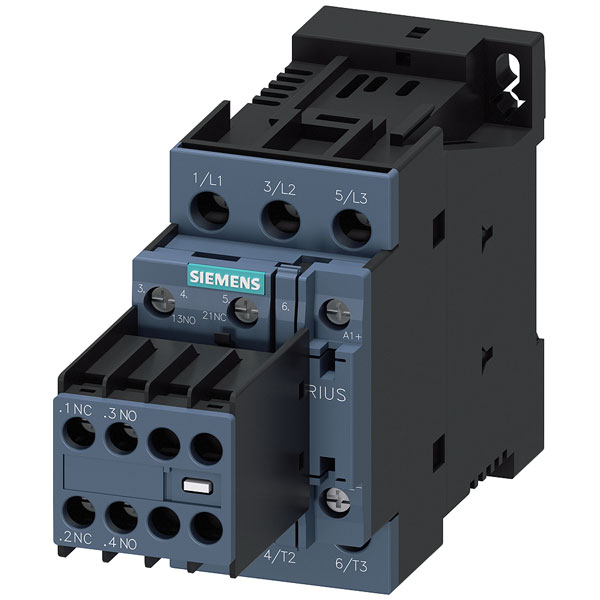

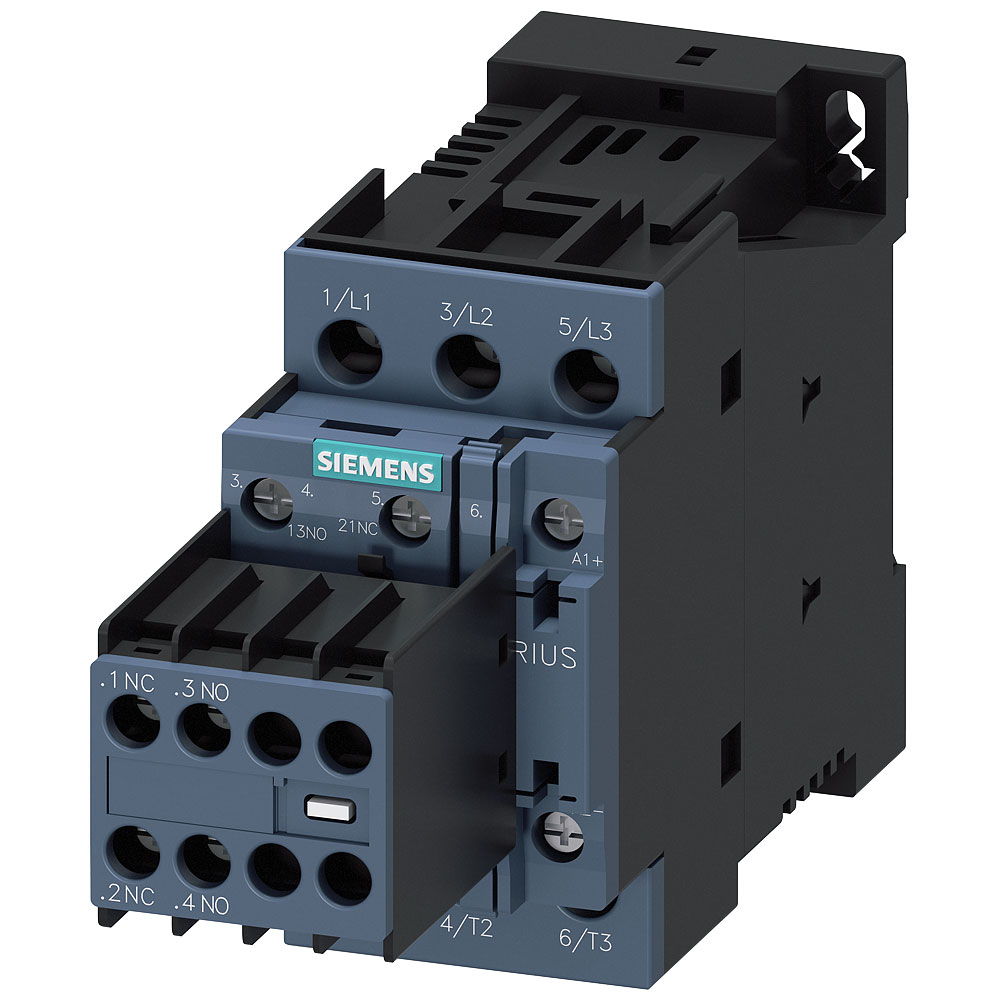

Image Representative of Range

Siemens 3RT2025-1BB44 Contactor 3-pole 17A 7.5kW 400V 1NO 1NC 24V AC

Siemens
Order Code:

06-8457

Brand: Siemens MPN: 3RT20251BB44 EAN-13: 4011209837270
Qty Unit Price (Ex VAT)
1+ £124.09
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 3 working days

The Siemens 3RT2025-1BB44 contactor is designed for switching and controlling electric motors up to 690 V AC. This electrical contactor features durability suitable for industrial automation and motor control applications. It is ideal for use in machinery and production line setups across various industries.
Type Contactor
Connection Screws
Contact Type 3 makers
Depth 151mm
Dim (W x H x D) 45 x 85 x 151 mm
Durability 1000 0000
Height 85mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2025-1BB44
Misc Attribute 2 S0
Nominal Voltage 690V AC
Number of auxiliary contacts as normally closed contact 2
Number of auxiliary contacts as normally open contact 2
Number of normally open contacts as main contact 3
Number of Pins 3-pin
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 17A
Rated operation current Ie at AC-4, 400 V 15.5A
Rated operation power at AC-3, 400 V 7.5kW
Rated operation power NEMA 7.354987499
Suitable for distribution board TRUE
Type of electrical connection of main circuit Screw connection
Voltage type for actuating DC
Width 45mm
