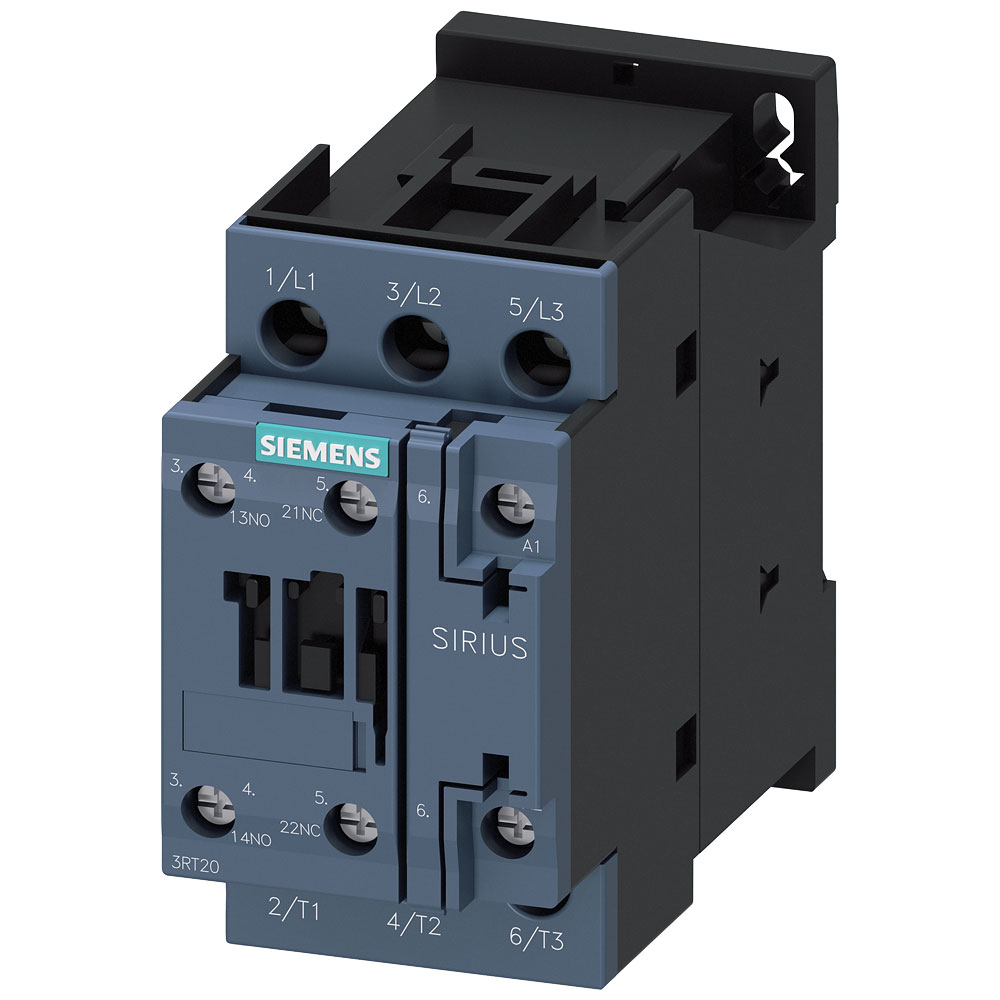

Siemens 3RT20241AP00 Contactor 3 NO+1 NC 220V DC S00 screw terminal

Image Representative of Range

Siemens 3RT20241AP00 Contactor 3 NO+1 NC 220V DC S00 screw terminal

Siemens
Order Code:

06-8443

Brand: Siemens MPN: 3RT20241AP00 EAN-13: 4011209831766
Qty Unit Price (Ex VAT)
1+ £44.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 available to back orderBack-order availability date - 10/01/2026

The Siemens 3RT2024-1AP00 contactor is designed for use in electrical circuits with a voltage of up to 690 V AC. It is commonly used in industrial applications to control the power flow to motors. This reliable electrical contactor is ideal for switching and protecting electrical appliances and systems.
Type Contactor
Coil Voltage 690V AC
Terminals 3-pin
Connection Screws
Contact Type 3 makers
Depth 97mm
Dimensions (W x H x D) 45 x 85 x 97 mm
Durability 1000 0000
Height 85mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2024-1AP00
Misc Attribute 2 S0
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 12A
Rated operation current Ie at AC-4, 400 V 12.5A
Rated operation power at AC-3, 400 V 5.5kW
Rated operation power NEMA 5.516240624
Suitable for distribution board TRUE
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
