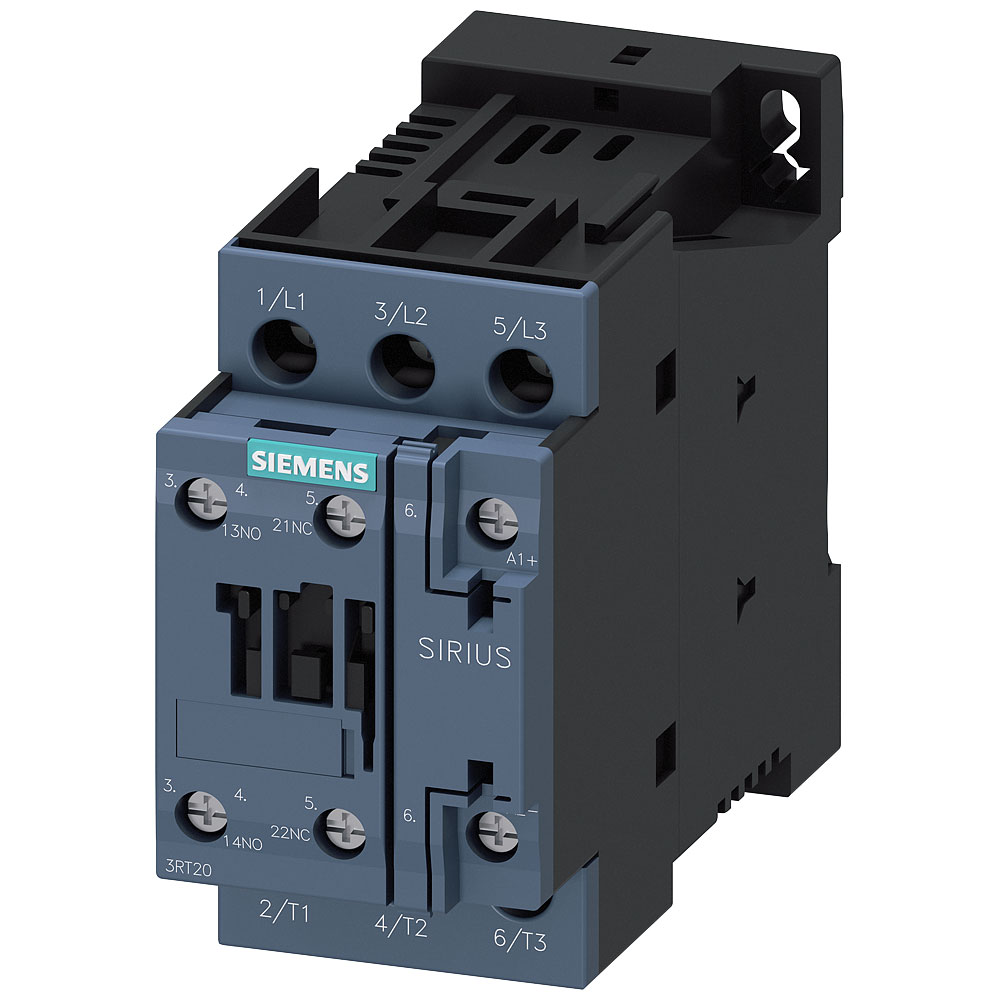

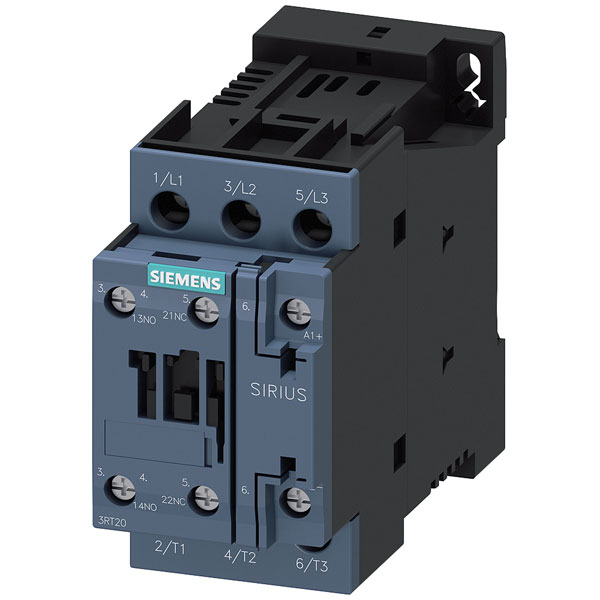

The Siemens 3RT2024-1BB40 Contactor is an electrical device designed to control circuits rated up to 690 V AC. This contactor is ideal for switching and controlling electric motors, typically used in industrial and commercial applications. Siemens is a renowned manufacturer known for producing high-quality electrical components that ensure reliable performance.
| Type |
Contactor |
| Coil Voltage |
690V AC |
| Connection |
Screws |
| Contact Type |
3 makers |
| Depth |
107mm |
| Dimensions |
(W x H x D) 45 x 85 x 107 mm |
| Durability |
1000 0000 |
| Height |
85mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2024-1BB40 |
| Misc Attribute 2 |
S0 |
| Mounting Style |
Screws |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
24 - 24V |
| Rated operation current Ie at AC-1, 400 V |
40A |
| Rated operation current Ie at AC-3, 400 V |
12A |
| Rated operation current Ie at AC-4, 400 V |
12.5A |
| Rated operation power at AC-3, 400 V |
5.5kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
5.516240624 |
| Suitable for distribution board |
TRUE |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
DC |
| Width |
45mm |
