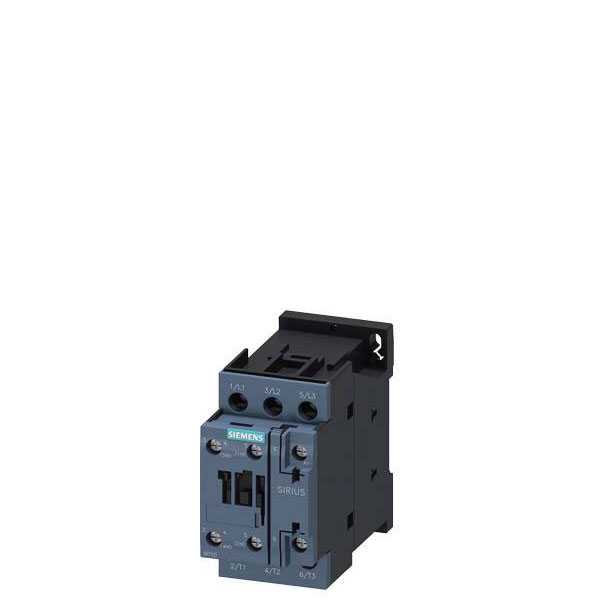

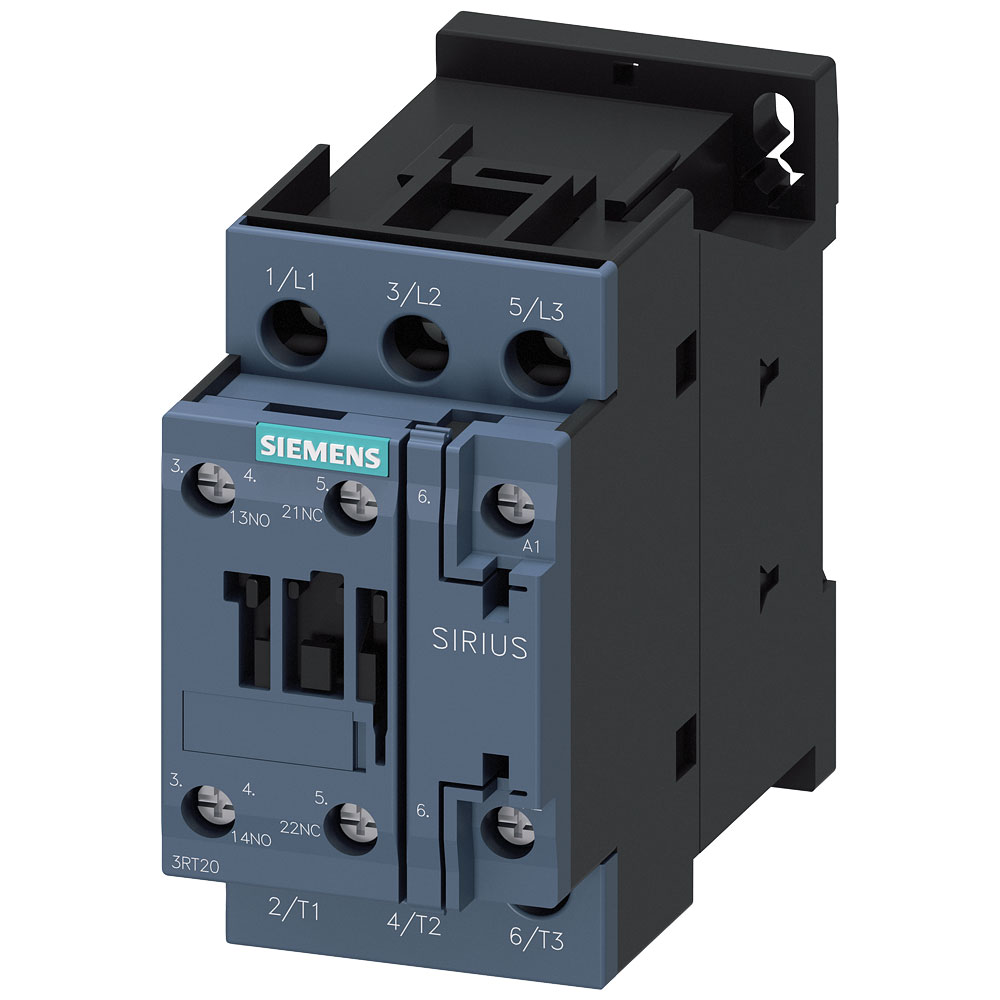

Siemens 3RT2023-1AP00 Contactor 690 V AC 24 V AC/DC phased-out product

Siemens manufactures the 3RT2023-1AP00 electrical contactor, designed to handle up to 690 V AC. This contactor is known for its durability and reliability in controlling electric currents. It is typically used in industrial applications for switching and protecting motors and other high-power equipment.

Type	Contactor
Coil Voltage	690V AC
Connection	Screws
Contact Type	3 makers
Depth	97mm
Dimensions	(W x H x D) 45 x 85 x 97 mm
Durability	1000 0000
Height	85mm
IP Rating	IP20
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RT2023-1AP00
Misc Attribute 2	S0
Mounting Style	Screws
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	N/A
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	40A
Rated operation current Ie at AC-3, 400 V	9A
Rated operation current Ie at AC-4, 400 V	8.5A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	3.677493749
Suitable for distribution board	TRUE
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	45mm
