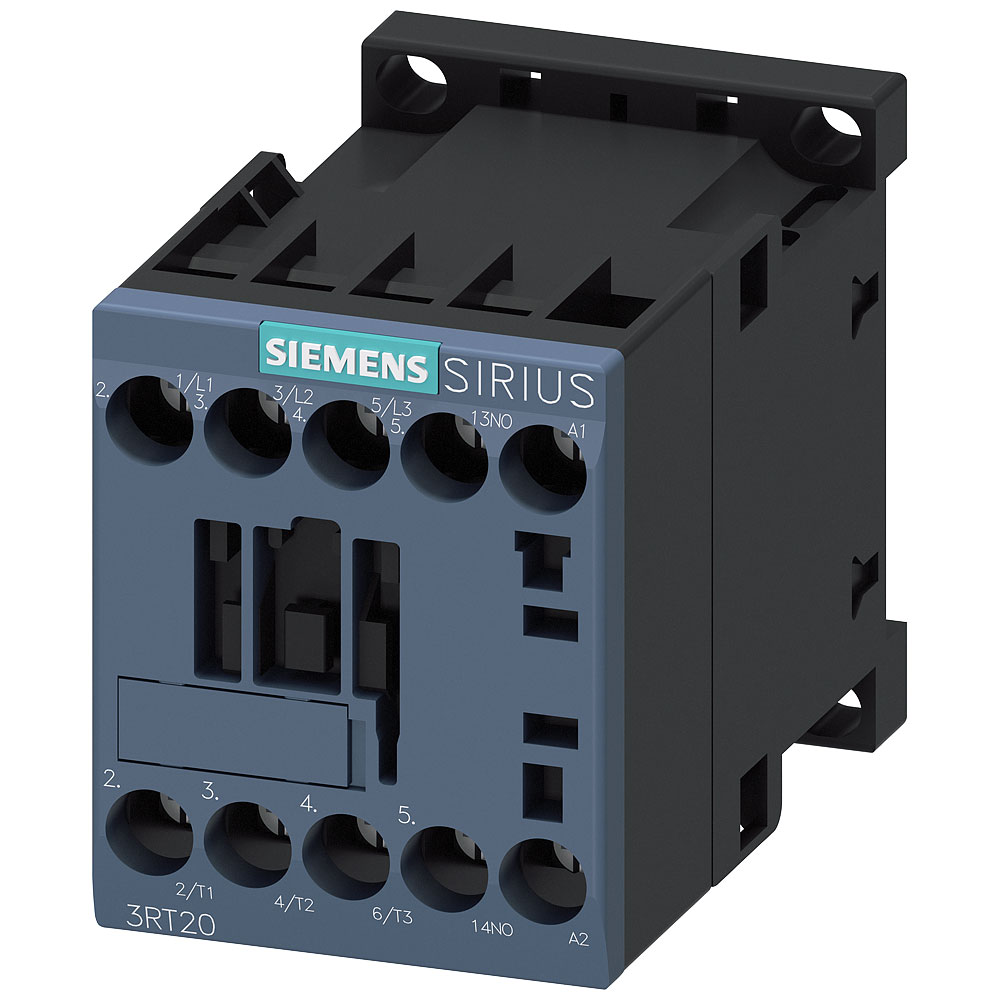

The Siemens 3RT2018-1AP01 is an electrical contactor featuring three poles, designed for 7.5 kW power applications and operates on 230 V AC with a current rating of 16 A. It includes an auxiliary contact, enhancing its control capabilities in automation systems. This component is typically used in industrial settings for starting and controlling electric motors.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Auxiliary contact type |
1 maker |
| Connection |
Screw terminal |
| Contact Type |
3 makers |
| Current load |
16A |
| Depth |
73mm |
| Dimensions |
(W x H x D) 45 x 58 x 73 mm |
| Durability |
3.0E7 |
| Height |
58mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2018-1AP01 |
| Misc Attribute 2 |
S00 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
N/A |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
7.5kW |
| Power Rating |
7.5 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
22A |
| Rated operation current Ie at AC-3, 400 V |
16A |
| Rated operation current Ie at AC-4, 400 V |
11.5A |
| Rated operation power at AC-3, 400 V |
7.5kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
7.354987499 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Weight |
0.23 |
| Width |
45mm |
