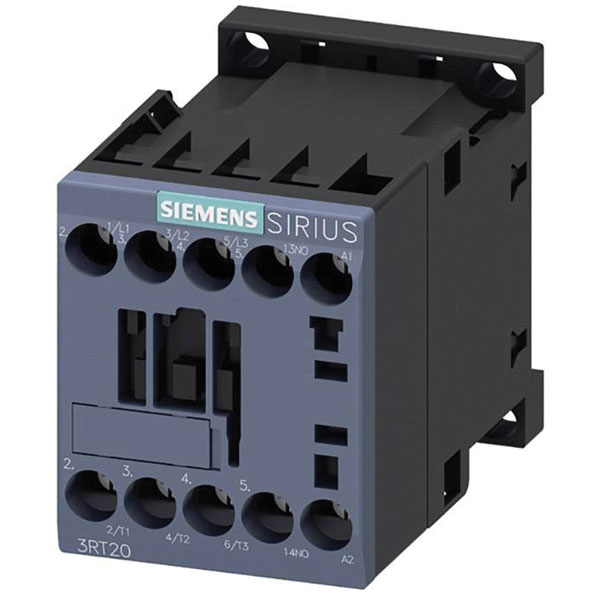

The Siemens 3RT2017-1AP02 Contactor is designed for controlling electrical circuits and motors up to 5.5 kW. It operates at 230 V AC with a 12 A rating and includes auxiliary contacts. Typically used in industrial and commercial settings, this contactor provides reliable switching for motor and load control applications.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Auxiliary contact type |
1 breaker |
| Connection |
Screw terminal |
| Contact Current Rating |
12A |
| Contact Type |
3 makers |
| Current load |
12A |
| Depth |
73mm |
| Dimensions |
(W x H x D) 45 x 58 x 73 mm |
| Durability |
3.0E7 |
| Height |
58mm |
| IP Rating |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
3RT2017-1AP02 |
| Misc Attribute 2 |
S00 |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
N/A |
| Number of normally closed contacts as main contact |
N/A |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Power |
5.5kW |
| Power Rating |
5.5 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
22A |
| Rated operation current Ie at AC-3, 400 V |
12A |
| Rated operation current Ie at AC-4, 400 V |
8.5A |
| Rated operation power at AC-3, 400 V |
5.5kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
5.516240624 |
| Suitable for distribution board |
TRUE |
| Switching voltage (max.) |
400V AC |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Weight |
0.23 |
| Width |
45mm |
